Successor model GOKO Bscan-Z was released on March 2016. Learn more about GOKO Bscan-Z

Nailfold video capillaroscope GOKO Bscan-ProA 2-way capillaroscope featuring GOKO’s optical system makes capillary observation much easier and clearer!
    • ev80-f2.png
    • ev80-f3.png
    • ev80-f4.png
    • ev80-f5.png
    • ev80-f6.png
    • ev80-f7.png

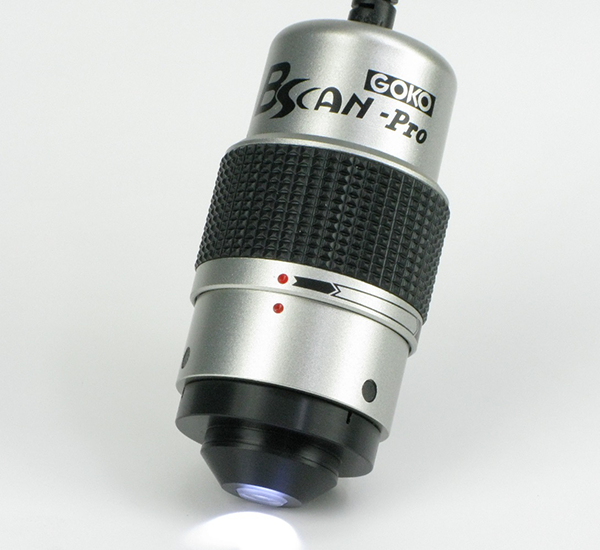

    • A 2-way scope: "Desk nailfold capillaroscope" and "Handheld microscope"
    • Allows observation of the whole body surface: not only nailfold capillaries but also the skin, the scalp, hair roots, etc.
    • Features GOKO's precise Japanese optics.
    • Captures smooth live video without time lags (NTSC Real time system).
    • Features a powerful zoom: 100× and 300×
    • Extremely light and compact
    • Built-in high luminosity LED: cool, bright, and has an extremely long life
    • Allows non-invasive observation. No blood samples required.
    • MADE IN JAPAN
    • CE-marked.

    * The GOKO Bscan-Pro is not a medical device.

  • Features

    A 2-way capillaroscope

    先端部分 The observation of nail fold capillaries

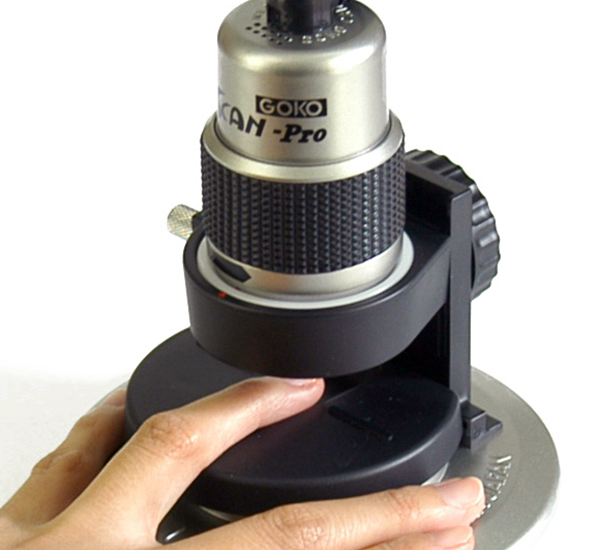

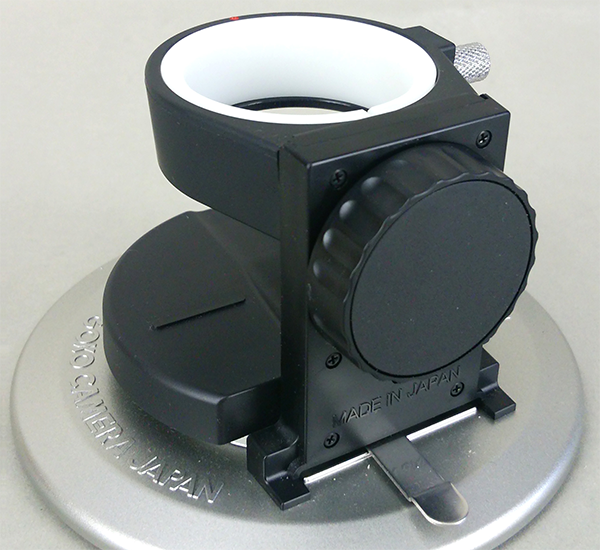

    (1) A "Desk nailfold capillaroscope" that enables "non-invasive observation"

    The GOKO Bscan-Pro makes the observation of capillaries much easier and clearer.
    Thus far, it has been difficult to observe nail fold capillaries because of the need for ultra-high magnifications. At these magnifications, quality is easily affected by even the slightest finger movements or unevenness of finger surface. However, the GOKO Bscan-Pro facilitates "motionless observation" with its novel structure that keeps the camera and fingers stable.
    It allows non-invasive observation of capillaries without blood sampling; this relaxes the patient, and thus, leads to precise results.

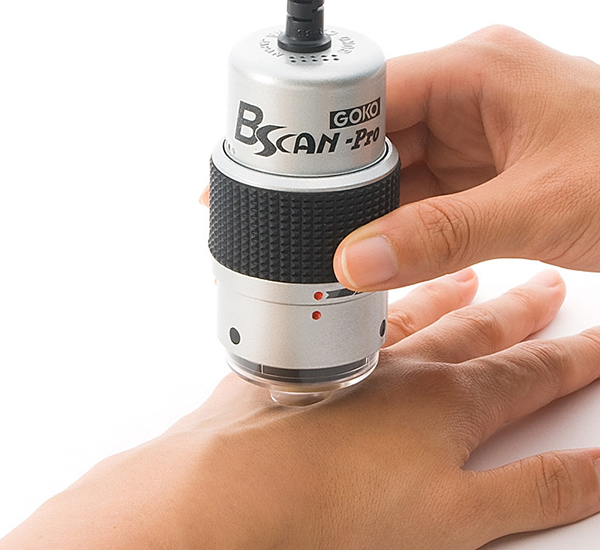

    (2) A"Handheld microscope" that allows the observation of the whole body surface

    The observation in the back of the hand The observation of the back of the hand by attaching Attachment A or B

    The GOKO Bscan-Pro can be used not only as "desktop nailfold capillaroscope" but also as a "handheld microscope."
    All you need to do is just touch the object with the GOKO Bscan-Pro: No focusing is required to obtain high quality microscopic images.
    Because of its compact and handheld shape, the GOKO Bscan-Pro is best suited for enhanced magnified observation of the whole body surface.

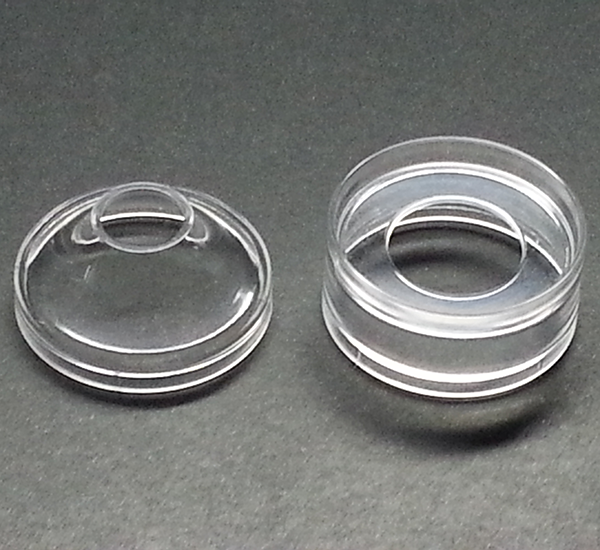

    The GOKO Bscan-Pro includes 2 types of "Attachments" that are interchangeable according to the shape of the objects (uneven or flat).


    Features GOKO's precise optical system

    A good optical system is essential to achieve good clarity and better image quality. GOKO has a proud history of more than 60 years' as a Japanese manufacturer of finished optical products, and we place considerable empahsis on developing fine optical systems and not just increasing the number of pixels. Our fine optical system realizes greater clarity and better quality.


    Captures smooth live video without time lags

    An NTSC full-motion real-time video system captures extremely smooth real-time monitoring with no time lags.


    100x100×
    300x300×

    Powerful zoom for various uses

    Magnifications (100× and 300×) can be quickly changed, and there is no need to focus.


    Extremely light and compact!

    Gross weight is less than 450 g, and it is extremely compact.
    Because of these features, the GOKO Bscan-Pro enables single-handed operation for long periods of time without stress. It is also very portable.


    Features high luminosity LED: cool, bright, and extremely long-life!

    lighting

    The GOKO Bscan-Pro features a maintenance-free lighting system. Unlike devices with halogen lamps, there is no need to change bulbs.
    No heat is generated that may damage skin or scalp over long observation periods.

  • Sample Images

    GOKO's own fine optical system realizes greater clarity and better quality in ultra-high-magnification images.

    *Requires oil application to the object surface

    Nail fold capillaries

    The GOKO Bscan-Pro enables the observation of capillaries and blood flow or even red corpuscles inside the capillaries, simply by applying oil to the surface of the object.

    • 100x 100×
    • 300x300×
    • Straight, aligned, and hairpin-shaped capillariesStraight, aligned, and hairpin-shaped capillaries
    • Twisted and uneven capillariesTwisted and uneven capillaries
    • Branched capillariesBranched capillaries
    • タShort and less-visible capillariesShort and less-visible capillaries

    Capillaries in the scalp

    • Capillaries near hair roots (i)*Capillaries near hair roots (i)*
    • Capillaries near hair roots (ii)*Capillaries near hair roots (ii)*

    Gum capillaries

    • Gum capillaries *Gum capillaries *

    Other capillaries

    • Capillaries in taste buds *Capillaries in taste buds *
    • Capillaries in taste buds *Capillaries in taste buds *

    Skin

    • Skin texture (100×)Skin texture (100×)
    • Extra skin of the heel (100×)Extra skin of the heel (100×)
    • Wounds (100×)Wounds (100×)
    • Keratotic plug on the noseKeratotic plug on the nose

    Accumulated melanin pigments arising from the basal layer

    • Pimples (i)Pimples (i)
    • Pimples (ii)*Pimples (ii)*
    • Warts (i) Warts (i)
    • Warts (ii)*Warts (ii)*

    Hair

    Skin texture (100×)Roots of hair

    Can observe the cuticle, hair roots, and the pith of white hair clearly

    Sample Videos

    Capillaries

    *These take some time to download because of the large file sizes.

    • Capillaries in the lipsCapillaries in the lips
    • Capillaries in the gumsCapillaries in the gums
    • Capillaries in the ear of rats (300×)Capillaries in the ear of rats (300×)
    • Capillaries in the abdomen of dogsCapillaries in the abdomen of dogs
    • Sweat from sweat glandsSweat from sweat glands

    Sample images courtesy of Toku Corp. Copyright @ Toku Corp.

    CAUTION:

    * Copying, modifying, reproducing, transmitting, etc. the contents on this site, for whatever purpose, is strictly prohibited without our prior written permission, regardless of the method or intent.

  • Clients' Intended Use and Application

    For universities, hospitals, and medical institutes

    • In research demonstrations and monographs at universities and laboratories
    • To observe peripheral blood flow or skin
    • To observe the change in blood circulation following a massage
    • As an advisory tool for life style modification at pharmacies and drugstores

    For health promotion businesses

    • For the useful demonstration of the promotion of health related equipment, hydrogen/carbonated water, and supplements
    • To demonstrate the effect of "detox" at a stone sauna, carbon dioxide bath, or fitness club

    For the beauty and esthetic industries

    • To demonstrate the effectiveness of new products for the improvement of skin or scalp
    • To observe improvements in blood circulation

    Installation Record

    Universities

    • Tokyo University
    • Tsukuba University
    • Nagoya University
    • Osaka University
    • Hiroshima University
    • Kyushu Institute of Technology
    • Kanazawa University
    • Toyama University
    • Niigata University
    • Miyazaki Miyazaki University
    • Fukushima University
    • Kyoto Prefectural University
    • Okayama Prefectural University
    • Yokohama City University
    • Prefectural University of Hiroshima
    • Kanagawa University of Human Services
    • Waseda University
    • Keio University
    • Tokyo Women's Medical University
    • Hosei University
    • Shibaura Institute of Technology
    • Kanazawa Medical University
    • Shikoku University
    • Tokai University
    • Juntendo University
    • Tokyo Medical University
    • St. Marianna School of Medicine
    • Dokkyo University
    • Kokushikan University
    • Jissen Women's Educational Institute
    • International University of Health and Welfare
    • Osaka Dental University
    • Osaka Institute of Technology
    • Hiroshima International University
    • Tokushima Bunri University
    • Jobu University
    • Tokyo Polytechnic University
    • Ryotokuji University
    • Meisei University
    • International Pacific University
    • Yokohama Soei University
    • Sojo University
    • Takasaki University of Health and Welfare
    • Kinjo Gakuin University
    • Chugoku Gakuen University
    • Kawamura Gakuen Woman's University
    • Chiba Institute of Technology
    • Bunkyo Gakuin University
    • Meijo University
    • Koshien University
    • St. Catherine University
    • Showa Gakuin Junior College
    • Toho University
    • Osaka Shoin Women's University

    and many others

    Hospitals

    • National Cerebral and Cardiovascular Center
    • National Disaster Medical Center
    • Nagasaki Hospital
    • Kumamoto City Hospital
    • Asao General Hospital

    and many others

    Local Health Centers

    • Yaizu City
    • Odawara City
    • Tagawa City
    • Nasukarasuyama City

    and many others

    Drugstores

    • Health Care Store SEIJO, CREATE SD. Co., Ltd.

    and many others

    Enterprises

    • Shiseido Co., Ltd.
    • Kao Corporation
    • FANCL Corporation
    • TAKARA BELMONT Corp
    • SVENSON CO., LTD.
    • POLACHEMICAL INDUSTRIES, INC.
    • Dr. Recella. Co. ltd.
    • YAMANOBEAUTYMATEGROUP INC.
    • Milbon Co., Ltd.
    • Sunny Health Co., Ltd.
    • ROHTO Pharmaceutical Co., Ltd.
    • Zenyaku Kogyo Co., Ltd.
    • Mikimoto Pharmaceutical Co., Ltd.
    • Toho Pharmaceutical Co., Ltd.
    • Kyowa Hakko Kirin Co., Ltd.
    • LOTTE Co., Ltd.
    • YakultHonsha Co., Ltd.
    • Saraya. Co., Ltd.
    • Toyota Motor Corporation
    • TOKYO GAS Co., Ltd.
    • Sharp Corporation
    • Corona Corporation
    • Hitachi, Ltd.
    • West Nippon Expressway Company Limited
    • Fujitsu Limited
    • Marubeni Corporation
    • SHiDAX COMMUNITY CORPORATION
    • Uokuni Sohonsha Co., Ltd.
    • Seiyo Hood-Compass Group, Inc.
    • Nikkyo Create, Ltd.
    • NIPPON GENERAL FOOD
    • INTERFACE Co., Ltd.
    • SNOWDEN Co., Ltd.
    • Rize clinic
    • Septem Soken Co., Ltd.
    • MIYASAKA RUBBER CO., LTD.
    • Melodian Co., Ltd.
    • NITTO PHARMACEUTICAL INDUSTRIES, LTD.
    • Nissin Chemical Co., Ltd.
    • MARUZEN PHORMACEUTICALS CO., LTD.

    and many others

    Media Coverage

    "GOKO Bscan-Pro" is widely used in various mass media such as Japanese popular TV programs.

    26.9.2013 Nippon Television To observe sweat from sweat glands, shirt fibers, and capillaries in fingers, lips, and scalps.
    7.9.2013 Nippon Television To examine the weakness of mites.
    12.7.2013 Fuji Television To examine the effects of refreshing in a cool environment.
    3.4.2013 NHK General TV To verify a woman's "thinning hair."
    12.2.2013 Asahi Broadcasting To observe blood flow during bathing in a hot spring on the "Takeshi's Medical Check-Up Show."
    15.1.2013 TBS To verify dehydration in winter.
    21.12.2012 NHK General TV To verify dehydration in winter.
    13.12.2012 NHK General TV To verify dehydration in winter.
    5.12.2012 NHK BS To observe the capillaries in dark circle under the eyes.
    26.11.2012 BS Nippon Television In a demonstration of how to increase hair volume.
    31.10.2012 NHK BS To observe lip capillaries.
    10.10.2012 NHK General TV To observe the change of blood flow in a calf's capillaries following a massage.
    24.9.2012 Fuji Television To observe the change in blood flow as affected by a sudden change of temperature.
    12.9.2012 NHK BS To observe blood flow to check the effect of carbonated water.
    29.8.2012 NHK General TV To observe blood flow in a study of bathing methods that attempted to avoid the summer heat.
    26.8.2012 TBS To observe the change of blood flow to check the effect of carbonated water.
    17.7.2012 Fuji Television To verify summer weariness resulting from having too much cold food or drink.
    12.7.2012 Fuji Television To verify armpit sweat.
    25.6.2012 Asahi Broadcasting To observe the effects of "knee jiggling" to cure puffy legs.
    21.6.2012 Fuji Television To check summer weariness.
    2.12.2011 NHK Educational TV To observe peripheral blood flow in the fingers.
    26.11.2011 Nippon Television To observe skin texture to check the effect of collagen.
    12.11.2011 Nippon Television To observe the change of blood flow to check the effects of carbonated water.
    3.9.2011 Nippon Television To observe the change of blood flow affected by autonomic nerves.
    28.5.2011 Nippon Television To observe the change of blood flow affected by atmospheric pressure.
    05.09.2010 NHK To observe the structure of dots on electronic books.
    7.8.2010 Nippon Television To examine heatstroke.
    7.8.2010 NHK BShi To examine the change of blood flow as affected by feelings of fear.
    15.5.2010 Nippon Television To study enlarged tissues of papers to determine if it was "grain long" or "grain short."
    24.4.2010 Nippon Television To examine blood flow in the lip, scalp, and skin.
    17.4.2010 Nippon Television To study the enlarged tissues of the surface of hand gloves.
    13.2.2010 Nippon Television To study effective bathing.
    19.9.2008 Nippon Television To examine the condition of the tongue.
    13.9.2008 Nippon Television To examine blood flow in capillaries.
    3.12.2007 NHK To study the circulation of body fluid.
    1.12.2007 NHK To study poor blood circulation.
    14.8.2007 Nippon Television To examine the relationship between fear and coldness.
    11.7.2007 Nippon Television Introduced as the most up-do-date device to check blood flow.
    20.12.2006 Nippon Television To examine the improvement of blood flow following exercise.
    8.6.2006 TV TOKYO Introduced via "World Business Satellite" as the most up-to-date scope to observe blood flow.
  • Options

    • NTSC-USB2.0 Converter Set
      NTSC-USB 2.0 converter Set

      Used to convert NTSC analog images to uncompressed digital images for real-time display on a computer and saves them as video and still image

      More information
    • attachment-c.png

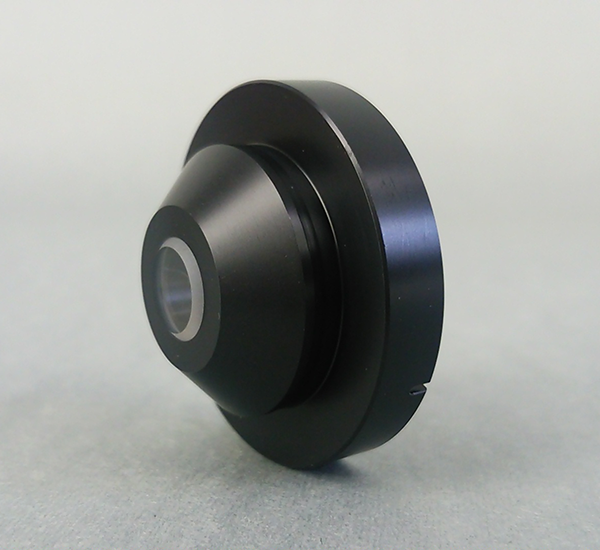

      Attachment "C"

      Used to observe capillaries other than nail fold capillaries

  • Specifications

    Camera Unit

    Model EV-80
    Image Signal NTSC composite video signal
    Electronic Shutter 1/60-1/100,000 second (Automatic)
    Magnification 95× to 330× (on 14-inch monitor)
    In focus with Attachment: 100× and 300×
    Lighting System Direct lighting by high luminosity LED
    Video Output Composite image output (pin jack 75 Ω)
    Power Source DV 5 V, supplied from exclusive adapter
    AC Adapter inlet pressure: AV 100-240 V
    Operating Temperature 0° C to +40° C
    Operating Humidity 35%-60% RH
    Dimensions φ45 (external diameter) × 84 (length) mm (except protrusion, without Attachment)
    φ45 (external diameter) × 95 (length) mm (with Attachment)
    Weight 170 g (without Attachment), Attachment: 10 g
    Attachments 1.Attachments A and B
    2.AC Adapter
    3.Protection cap
    Location of manufacture Japan

    Stand Unit

    Model ST-600
    Dimensions Base unit: φ120 mm, camera holder unit: φ58 mm, height: 74 mm
    Range of the movement of the Stage Unit 10 mm in a crosswise direction
    Range of the movement of the Camera Holder Unit 10 mm vertically
    Overall height with the Camera Unit 134 mm, except protrusion
    Weight 230 g
    Location of Manufacture Japan

    * The GOKO Bscan-Pro is not a medical device.

    * Specifications and design of the products are subject to change without prior notice.
