Easy setup and connections!
The setup is extremely easy: (1) Connect a cable to the USB 2.0 port of your computer and (2) install the driver and image software from the included CD-ROM.
Digital stand scope, EV-1 Digital/USB Digital Dermascope, EV-4D USB/Attachment for eyepieces, MVC-2/USB camera for eyepieces, MVC-D USB/Capillaroscopy: Video Capillaroscope GOKO Bscan-Z/Handheld multi-distance scope, EV-6HD/Capillaroscopy: USB Capillaroscope GOKO Bscan-ZD/Handheld Ultra Microscope GOKO EV-13/Capillaroscopy: GOKO Bscan-ZA / Autoclavable
Capillaroscopy: Video Capillaroscope GOKO Bscan-Z/Capillaroscopy: USB Capillaroscope GOKO Bscan-ZD/Capillaroscopy: GOKO Bscan-ZA / Autoclavable
Capillaroscopy: Video Capillaroscope GOKO Bscan-Z/Capillaroscopy: USB Capillaroscope GOKO Bscan-ZD
Capillaroscopy: Video Capillaroscope GOKO Bscan-Z/Capillaroscopy: USB Capillaroscope GOKO Bscan-ZD

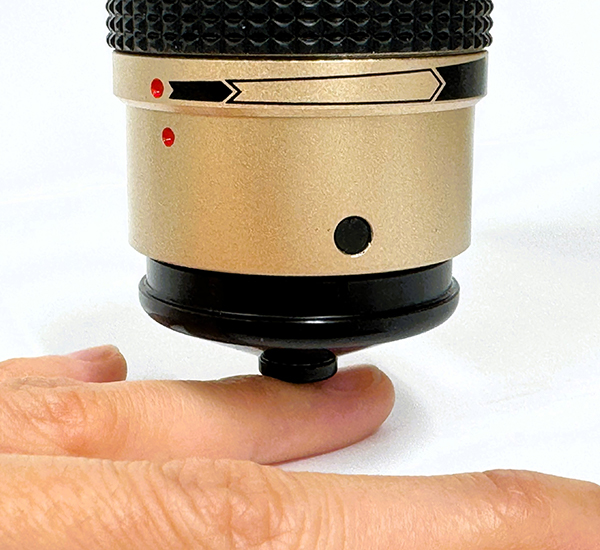

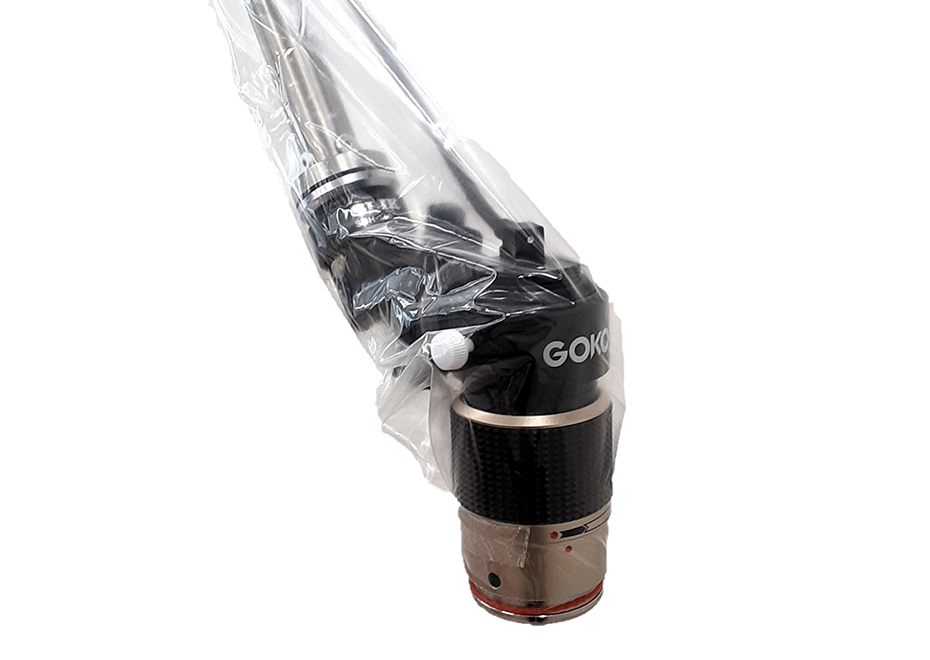

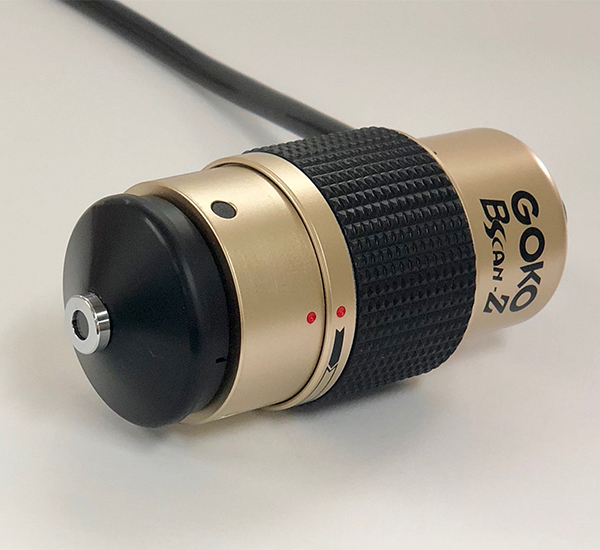

※If you already have the GOKOBscan-Z and want to use an autoclavable non-reflective cap, the camera unit of the GOKOBscan-Z should be modified. Plastic bag, rubber band, and rubber gloves are not included.
Capillaroscopy: Video Capillaroscope GOKO Bscan-Z/Capillaroscopy: USB Capillaroscope GOKO Bscan-ZD

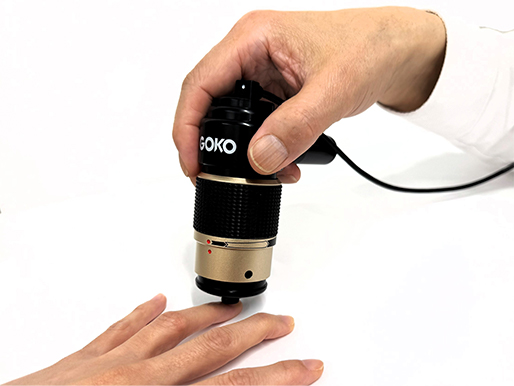

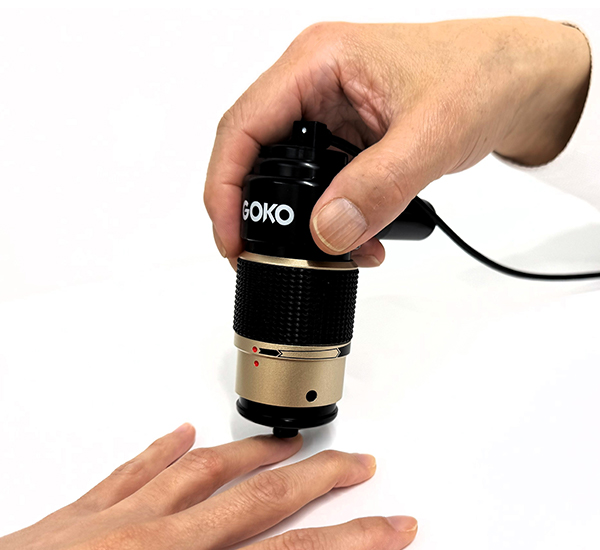

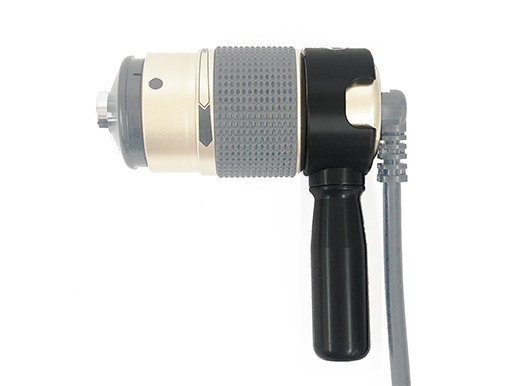

* The photo shows the camera handgrip attached to the GOKO Bscan-Z + non-reflective cap.
Information on other uses will be updated.
All-in-one standalone scope, EV-1 NTSC /Handheld multi-distance scope, EV-6H/GOKO Bscan-Pro, nailfold capillaroscope with powerful zoom/Attachment for eyepieces, MVC-2/Attachment for Viewfinders, MVC-10/Capillaroscopy: Video Capillaroscope GOKO Bscan-Z
The NTSC-USB 2.0 Converter is an optional device for people using GOKO NTSC-version products such as the EV-1, EV-6H, GOKO Bscan-Z, MVC-10W, MVC-2, and other similar products.
It converts NTSC analog video images to uncompressed digital images on your computer's monitor. Images can be saved as video in AVI, and as still images in BMP or JPG format.
(GOKO's NTSC-version products output NTSC analog images directly to commercial NTSC TV displays or to an optional monitor without this device.)
*If the images are required to be displayed on both monitors of PC and GOKO microscopes like the example, commercial video splitter is also to be prepared separately.
The NTSC-USB 2.0 Converter converts NTSC signals to uncompressed, 10-bit digital data that is directly transferred to a computer via a USB 2.0 interface.
It maintains a maximum of 30 fps of uncompressed data from an input NTSC signal, which allows clear digital images for observation, inspection, or saving.
It also maintains an accurate 4:3 format, which avoids common distortions such as a perfect circle being distorted and displayed as an oval.
The setup is extremely easy: (1) Connect a cable to the USB 2.0 port of your computer and (2) install the driver and image software from the included CD-ROM.
The included image software is intuitive and easy to operate: Just click on menu icons to perform almost any procedure.
(Images that are displayed or saved on computers are VGA, 640 × 480, after being converted from the NTSC signal.)
The free measurement software is also included. It provides various measurement functions such as "distances between 2 points," "areas," and "circles (area, radius, diameter)," "distances between 2 circles," "lengths of perpendicular lines," and "angles" by allowing the input of calibration values for a particular magnification.
Model | DFG/USB2pro, GOKO's calibration chart, and USB2.0 cable |
---|---|
Input signal | NTSC/PAL, RS170/CCIR |
Saving format | Still Image: JPEG, BMP, GIF, TIFF, PNG / Video: AVI |
Input connecter | RCA (Cinch) |
Output connecter | USB 2.0 (type B) |
Dimensions | 27 × 56 × 95 mm |
OS | Windows 7/8/10, Vista, XP |
The abovementioned operating environment is just recommended; compatibility is not guaranteed.
In rare instances, the product may not operate due to incompatibility, even though the environment satisfies the abovementioned criteria. We do not indemnify any loss resulting from problems or malfunctions caused due to incompatibility.
Specifications and design of the products are subject to change without prior notice.
Capillaroscopy: Video Capillaroscope GOKO Bscan-Z/Capillaroscopy: USB Capillaroscope GOKO Bscan-ZD/Capillaroscopy: GOKO Bscan-ZA / Autoclavable
Digital stand scope, EV-1 Digital/Handheld multi-distance scope, EV-6H/Attachment for eyepieces, MVC-2/USB camera for eyepieces, MVC-D USB/Attachment for Viewfinders, MVC-10/Capillaroscopy: Video Capillaroscope GOKO Bscan-Z/Capillaroscopy: USB Capillaroscope GOKO Bscan-ZD/Handheld Ultra Microscope GOKO EV-13/Capillaroscopy: GOKO Bscan-ZA / Autoclavable
You can release the shutter with your foot shooting magnified images using GOKO products.
Since both hands can be used freely during shooting, shooting can be performed smoothly.
It is also effective for preventing camera shake.
Two types are available: one for still images only and the other for both still images and video. Contact us for details.
Display | Size | 9.7" |
---|---|---|
Resolution | 1024×768 | |
Brightness | 350 cd/m2 | |
Ratio | 800:1 | |
View Angle | 170°(V) / 170°(H) | |
Input | HDMI/DVI-D/VGA/Video/Audio(Stereo) | |
VESA (FPMPMI) standard | 75mm x 75mm | |
Power | DC12V 1.2A | |
Operating Temperature | 0 to 50 degree | |
Storage Temperature | -20 to 60 degree | |
Dimensions | 238.3 mm×189.2mm×27 mm | |
Weight | 630g *excl. stand | |
Package Contents | Remote Controller, Customized SKS cable, Stand, AC Adaptor | |
Certification | FCC, CE, RoHS |
※ Liquid crystal panels are made with high technology, but dead-dot inevitably occurs.
Handheld multi-distance scope, EV-6HD/Capillaroscopy: USB Capillaroscope GOKO Bscan-ZD
※If you purchase the case alone, the stored product is not included.
※The case is not intended for long-term storage.
Capillaroscopy: Video Capillaroscope GOKO Bscan-Z/Capillaroscopy: USB Capillaroscope GOKO Bscan-ZD
※When you purchase a case separately, the GOKO Bscan or accessories shown in the photo are not included.
※Since this small case is compatible with PC sets, it cannot store the 9.7-inch LCD monitor for GOKO Bscan-Z.
※When you purchase a case separately, the GOKO Bscan-Z or accessories shown in the photo are not included.
Capillaroscopy: Video Capillaroscope GOKO Bscan-Z/Capillaroscopy: USB Capillaroscope GOKO Bscan-ZD/Capillaroscopy: GOKO Bscan-ZA / Autoclavable
Suitable for the observation of nailfold capillaries and capillaries in the whole body surface as well.
※Oil and gel are products with very little irritation to the skin, but those who have allergy, skin diseases, or sensitive skin, please consult a doctor before purchasing.
Capillaroscopy: Video Capillaroscope GOKO Bscan-Z/Capillaroscopy: USB Capillaroscope GOKO Bscan-ZD/Capillaroscopy: GOKO Bscan-ZA / Autoclavable
It is suitable to be applied on where oil flows easily, such as scalps or cheeks. It is a type of gel that is difficult to enter bubbles and is less likely to disturb observation.
※Oil and gel are products with very little irritation to the skin, but those who have allergy, skin diseases, or sensitive skin, please consult a doctor before purchasing.
*The picture shows the example of attaching to the camera of EV-1 (NTSC Version)
*The camera unit of EV-1 or EV-1D with RL-10 is also available to be mounted on your own equipment. (Another power source for RL-10 is to be prepared separately.) Contact us for further details.
Digital stand scope, EV-1 Digital/USB Digital Dermascope, EV-4D USB/Attachment for eyepieces, MVC-2/Handheld multi-distance scope, EV-6HD/Software GOKO Measure Plus for image analysis and measurement/Capillaroscopy: USB Capillaroscope GOKO Bscan-ZD/Handheld Ultra Microscope GOKO EV-13/Capillaroscopy: GOKO Bscan-ZA / Autoclavable
GOKO's special glass calibration chart used for calibration when measuring 2D dimensions.
The standard patterns are printed on the glass surface in units of 0.1 mm with high accuracy.
Handheld multi-distance scope, EV-6H/Attachment for eyepieces, MVC-2/Attachment for Viewfinders, MVC-10

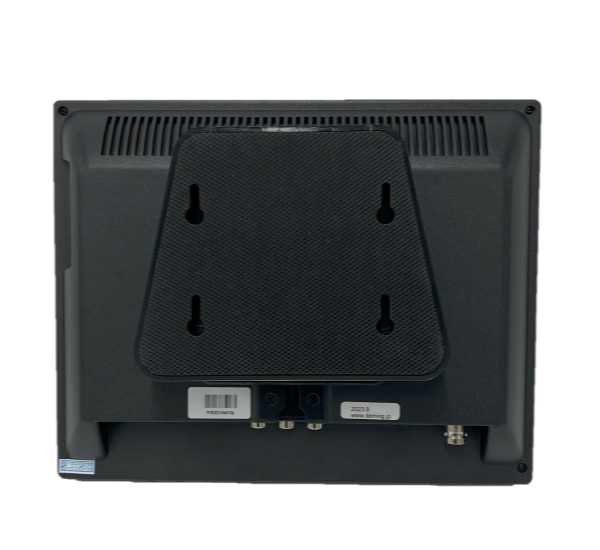

Display | Size | 9.7" |
---|---|---|
Resolution | 1024×768 | |
Brightness | 350 cd/m2 | |
Ratio | 800:1 | |
View Angle | 170°(V) / 170°(H) | |
Input | HDMI/DVI-D/VGA/Video/Audio(Stereo) | |
VESA (FPMPMI) standard | 75mm x 75mm | |
Power | DC12V 1.2A | |
Operating Temperature | 0 to 50 degree | |
Storage Temperature | -20 to 60 degree | |
Dimensions | 238.3 mm×189.2mm×27 mm | |
Weight | 630g *excl. stand | |
Package Contents | Remote Controller, Customized SKS cable, Stand, AC Adaptor | |
Certification | FCC, CE, RoHS |
※ Liquid crystal panels are made with high technology, but dead-dot inevitably occurs.
All-in-one standalone scope, EV-1 NTSC /Digital stand scope, EV-1 Digital/Handheld multi-distance scope, EV-6H/Close-up shot lens, LZ3-2/Attachment for Viewfinders, MVC-10/Handheld multi-distance scope, EV-6HD
This equipment can be purchased alone, not necessarily as the attachment of GOKO products. It is favorably used to take picture of small object from every direction without touching the object.
