Digital stand model EV-1 DigitalDigital version of EV-1 that enables real-time display on a computer.Offers GOKO’s
    • ev1d-f2.png
    • ev1d-f3.png
    • ev1d-f4.png
    • ev1d-f5.png
    • ev1d-f6.png
    • ev1d-f7.png
    • Best suited for visual inspection and documentary evidence
    • GOKO's unique zoom system: No need to re-focus even while zooming in and out!
    • Adjustable LEDs make it easier to detect damages of objects such as scratches.
    • Mounted USB-output high-resolution digital camera unit
    • Offers large depth of field. No need to re-focus when viewing uneven objects.
    • Features GOKO's precise optical system
    • Mounted a high-luminosity LED lighting system
    • Images are displayed on your computer directly through a USB cable.
    • MADE IN JAPAN

    *Updated for being compatible with Windows 10!

    *Products shipped before December 2017 do not support Windows8 and Windows10. Version upgrades are available for a fee.

    GOKO EV-1 Digital is developed and manufactured by GOKO Imaging Devices Co., Ltd., an innovative Japanese manufacturer of optical imaging devices with a 70 year history, which holds the world's largest production volume of film compact cameras and global market share of 8mm cinema editors under its own brand and OEM supply. See our history.

  • Features

    VFFzoom VFFzoom VFFzoom

    GOKO's unique VFF zoom system:
    No need to re-focus even while zooming in and out!

    Enjoy "in-focus" clear video images all the time, even while zooming in and out by moving the "magnification knob" side to side. You only need to focus once at the beginning. GOKO's own unique VFF (Variable Focus Free) Zoom system made this special feature possible.


    Built-in high-luminosity LED system:cool, bright, and extremely long lived!

    Flexible LED system:
    Easy to adjust direction and brightness!

    Adjustable high-luminosity LEDs offer various and flexible effects in lighting.
    It enables to detect damages on objects such as cracks or scratches much easier.


    (1)From right and left - Easy to adjust the heights, slopes, and brightness.
    (2)From below - Can turn on/off at your preference.


    Features GOKO's precise optical system

    A fine optical system is essential to achieve good clarity and better image quality. GOKO has a proud history of more than 60 years as a Japanese manufacturer of optical finished products, and we place great emphasis on developing a fine optical system, not only on increasing number of pixels. Our own fine optical system realizes greater clarity and better quality.


    Best suited for visual inspection and documentary evidence.

    EV-1D is the digital version of EV-1 (NTSC Version) that features a USB-output high-resolution digital camera unit. It is mounted on a strong and stable working stage, the same as that of EV-1 (NTSC version).

    EV-1D is best suited for clicking digital pictures not only for visual inspection but also for use as documentary evidence, or in reports. It has a good reputation, especially amongst quality control departments (e.g., checks of defective parts), food inspectors (e.g., contaminant inspection), and the like, who use it to document their findings.

    Click the images to see the difference.

    Picture captured by EV-1 (NTSC)
    VGA (640×480)
    Picture captured by EV-1 Digital
    SXGA (1280×1024)
    主な特長 主な特長

    Long working distance offers comfortable working space

    MagnificationWorking distance
    33× 45 mm
    98× 38 mm

    *on 14-inch monitor

    Unlike previous microscopes, the camera unit of EV-1D enables to provide long working distance, which provides large vertical working space. This feature is ideal for inspection by letting the object move, process, or rework.

    The camera unit of EV-1D can be moved vertically; thus, it can inspect an object whose height is up to 45 mm.


    Powerful zoom, 27×-80× on a SXGA size monitor

    *Click to see full-sized images.

    Lower magnificationHigher magnification

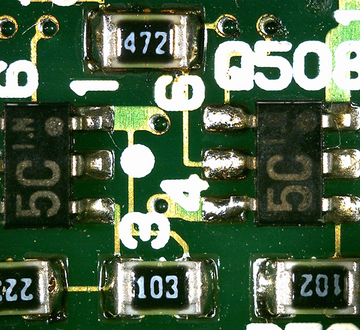

    PCB Lower PCB Higher PCB

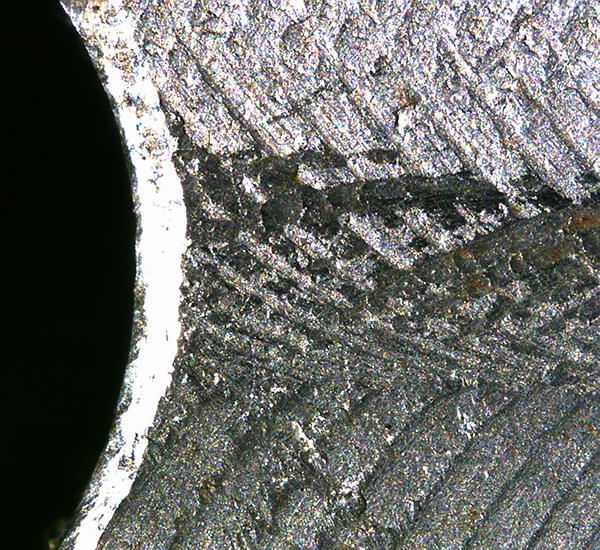

    Surface of metal processing Lower Surface of metal processing Higher Surface of metal processing
    Range of shooting
    (In round figures.)
    13.1mm×9.8mm 3.9mm×2.9mm
    • For greater depth of field, EV-1 (NTSC Version) is more appropriate. EV-1D focuses on the clearness of the images by a featuring high-resolution camera rather than the depth of field (although EV-1D also has a great depth of field).
    • If a smoother movie is required to observe an object moving, reworking, or processing, EV-1 (NTSC Version) is more appropriate, as it adopts a NTSC full-motion real time video system, although EV-1D also captures smooth movies and gives little stress in normal operations such as setting focus and the like. (EV-1D Image Output: 15 fps at maximum on SXGA monitor; 1280 × 1024, 1.3 mega-pixel)

    Intuitive image software

    Intuitive image software - Easy to operate!

    The attached image software is intuitive and easy to operate by simple menus such as "Image resolution ([1280 × 1024] or [640 × 480])," "Stop," "Save (BMP or JPG)," and "Property."

    *The edges of picture are trimmed in VGA [640 × 480].


    Mounted on strong and stable working stage.

    Solid and stable working stage offers blurless observation.

  • Options

    • goko-gmp-top.png
      GOKO Measure Plus Software

      Provides various image analysis functions and two-dimensional measurement functions. Greatly expands the applicability of clear images with GOKO's microscope.

      More information
    • usbfootswitch-p1.png
      USB Foot Switch for still image (FS-1USB)

      Enable to release the shutter with your foot when shooting when taking still images. Prevents camera shake and improves the accuracy of the image.

      More information
    • ringright.jpg
      Ring light RL-10

      Provides uniform brightness that is nearly shadowless and controlled by an attached “Light controller.”

      More information
    • simple_rotate_tilt_1.png
      Simplified rotary tilt table 30 (FS-30)

      Objects can be simply fixed on the table (using micro suction cups), and can be tilted up to 90 degrees for easy observation from the side.

      More information
    • calibrationchart.png
      Glass Calibration Chart

      GOKO's special glass calibration chart used for calibration when measuring 2D dimensions.

      More information
    • flexstage-p1.png
      Angle-adjustable stage

      Angle-adjustable non-slip rubber stage, used to observe or take pictures of small object from every direction without touching it. (Sorry, sold out. Contact us for future production.)

      More information
  • Media Coverage

    "GOKO Macro Viewer" series are favorably used in various popular TV programs in Japan for education, analysis, and variety shows.

    • TV Asahi: To magnify Habanero Chilli with a standard magnification camera
    • NHK BS: To magnify myxomycete with a high magnification camera
    • Nihon TV: To magnify the strings of a violin with a standard magnification camera

    Specifications



    Model EV-1D
    Image Signal Digital System
    Electronic Shutter Automatic
    Image Sensor 1/2" CMOS Color Camera 1.3mega-pixel
    Focus System VFF (Variable Focus Free) Zoom System
    Magnification 27×-80× (on 17-inch monitor for PC) in 1280 × 1024 mode [SXGA]
    Lighting System High-luminosity LED lighting system; "Direct oblique Lightings" from right and left and "Lighting from below"
    Optional Ring Light with the light controller is also available.
    Input/Output Camera Unit: USB 2.0 connecter for PC (Type A Male)
    Body Part: Power outlet terminal for exclusive optional units
    Power Source Body Part: DC12 V, from exclusive AC adapter
    Camera Unit: DC5 V, from PC through USB bus power, 300mA and less
    Dimensions 180 (W) × 230 (H) × 190 (D) mm
    Weight 2.7 kg
    Attachments 1.CD-ROM (driver and viewer software)
    2.Stage panel (Saucer type)
    3.AC adapter (DC12 V)
    Location of Manufacture Japan

    Operating Environment



    CPU Celeron 900 Mhz or more (1.7 GHz or more is recommended)
    OS Windows 2000/XP/7/8/10 (Products shipped before December 2017 do not support Windows8 and Windows10. Version upgrades are available for a fee.)
    Memory 256 MB or more (512 MB or more is recommended)
    USB Port Built-in USB2.0 Port (Not guaranteed to operate with USB1.1 nor USB2.0 card)
    Chip Set intel is recommended.

    CAUTION

    The above environment is just recommended and not guaranteed.
    Occasionally, the product does not operate because of incompatibility even under the abovementioned conditions.
    We do not indemnify any loss of troubles or malfunctions that are caused by incompatibility.

    For Lenovo PC Users

    The driver may not be installed because of "(IBM) Rescue and Recovery," which is normally built into some models of Lenovo.
    Please temporarily delete the software and install the driver for EV-1D as below procedures.
    (1)Delete "(IBM) Rescue and Recovery" using "Add or Remove Programs" in the Control Panel list.
    (2)Install the driver for EV-1D.
    (3)Re-install "(IBM) Rescue and Recovery" from c:¥ibmtools¥APPS¥IBMRNR.
    (The location of the file may be different in some models.)

    Please contact the support center of your PC manufacturer for further details concerning "(IBM) Rescue and Recovery."

    We do not indemnify any loss of troubles due to the above procedures.

    Specifications and design of the products are subject to change without prior notice.
