Handheld Ultra Microscope GOKO EV-13

    • ev-13-a.jpg
    • ev-13-b.jpg
    • ev-13-c.jpg
    • ev-13-d.jpg
    • ev-13-e.jpg
    • ev-13-f.jpg
    • Achieve ultra-high magnification observation with one hand, which has been difficult to accomplish with hand-held observation.
    • Deep depth of field in ultra-high 590x magnification
    • GOKO's unique "non-slip tip mechanism"
    • Will not damage the target object.
    • Grip design can be easily held with one hand.
    • Fine focus adjustment is easy.
    • Replaceable tip is oil and alcohol resistant.
    • Can be connected to an iPad to view and save images.

    GOKO Imaging Devices Co., Ltd. is an innovative Japanese manufacturer of optical imaging devices with a 70-year history. We take pride that we develop, manufacture and even customize our products exclusively in Japan. See our historic products which dominated global market shares.

  • Features

    In conventional ultra-high magnification observation, hand-held observation is very difficult, and it is common practice to fix the scope on a stand. There are two main reasons:

    1. The slightest movement of the observer's hand causes the field of view to move away from the object being observed.
    2. The depth of focus is too narrow because traditional observations are made using flat prepared slide.

    Observe anytime, anywhere!
    GOKO EV-13 achieves both "ultra-high magnification" and "hand-held" observation.

    • Applying to the hair Applying to the hair
    • Applying to an industrial drill Applying to an industrial drill
    • Applying to a smartphone Applying to a smartphone
    • Applying to a carpet Applying to a carpet
    • Applying to a suit Applying to a suit
    • Applying to moss Applying to moss
    Point 1

    Deep depth of field in
    ultra-high 590x magnification

    In ultra-high magnification observation, depth of field is often shallow, which can cause frustration because it is not easy to focus on the subject.

    In addition, depth of field was not so much required for traditional observation of flat subjects such as prepared slides.

    The GOKO EV-13 has achieved a "deep depth of field" by focusing on "one-handed observation" despite its "ultra-high magnification".

    Industrial Drill Tip（Approx. 590 times）Industrial Drill Tip
    （Approx. 590 times）
    Point 2

    GOKO's unique "non-slip" tip mechanism

    This is GOKO's unique tip mechanism that revolutionizes the common practice of ultra-high magnification photography.

    Advantages of the non-slip tip mechanism

    The non-slip tip mechanism advantage (1): Fine focus adjustment is easy!

    In hand-held observation at ultra-high magnification, even a small movement of the finger to adjust the focus can result in fatal camera shake, making it difficult to capture the image as desired.
    With the GOKO EV-13, you can adjust the desired focus position simply by touching the tip to the subject and lightly pushing or pulling.

    Fine focus adjustment

    The non-slip tip mechanism advantage (2): Less likely to slip and damage the subject!

    It is very important that your hand does not slip during one-handed ultra-high magnification observation.
    This is because the field of view projected on the screen is minuscule, less than 1 mm wide, and even a slight slip of the finger can cause a completely different part of the image to be projected.
    In addition, the tip is made of a material that does not easily damage the subject.

    The non-slip tip mechanism advantage (3): Oil and alcohol resistant and replaceable!

    • The non-slip sticker tip is oil and alcohol resistant.
    • The non-slip sticker is replaceable and it comes with 50 standard seals. Additional seals can be purchased.
    • The non-slip sticker can be removed and used without elasticity.
    Point 3

    Stable, easy-to-hold grip.

    The design makes it easy to hold stably with one hand and to turn the focusing ring with the same hand.

    Stable, easy-to-hold grip.

  • Sample images and Examples of use

    It is useful in all fields of medical research, cosmetology, factories, physics, chemistry, and many other industries.
    The ultra-high magnification can be observed with one hand, so there is no need to place the object on a prepared slide.

    Hair and Cuticle

    No hair sampling required. Simply apply it to the hair for immediate observation.

    Hair and Cuticle
    After
    Approx. 590 times
    （Approx. 590 times）

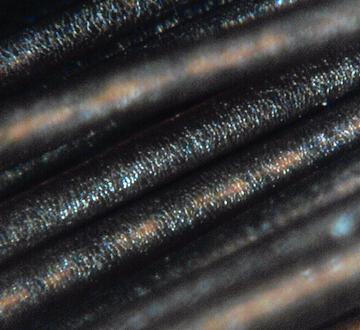

    Industrial Drill Tip

    Scratches and abrasion can be precisely checked immediately on site.

    Industrial Drill Tip
    After
    Industrial Drill Tip（Approx. 590 times）
    （Approx. 590 times）

    Smartphone LCD

    Even the color change of the liquid crystal can be observed precisely.

    Smartphone LCD
    After
    Smartphone LCD（Approx. 590 times）
    （Approx. 590 times）

    Carpet

    Immediately observe dirt invisible to the naked eye.

    Carpet
    After
    Carpet. (590 times)
    （Approx. 590 times）

    Rock Salt

    No prepared slide is required and can be observed immediately anywhere.

    Rock Salt
    After
    Rock Salt（Approx. 590 times）
    （Approx. 590 times）

    Suits and Clothing

    Dirt and dust invisible to the naked eye can be observed while wearing clothes

    Suits and Clothing
    After
    Suits and Clothing（Approx. 590 times）
    （Approx. 590 times）

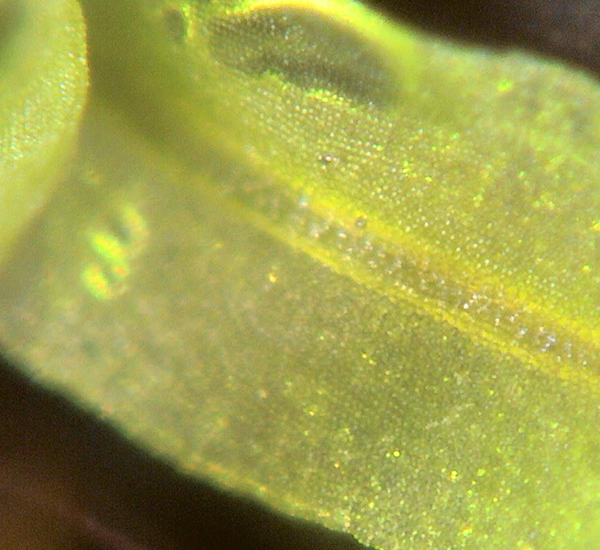

    Moss

    Native outdoor plants can be observed without the need to collect them.

    Moss
    After
    Moss（Approx. 590 times）
    （Approx. 590 times）

  • Sample Videos

    Bed mites, 590x
    Moldy bread(live mold), 590x
    How to use the Handheld Ultra Microscope

    * Unauthorized reproduction of the above videos and images taken with our products is strictly prohibited.

    Can be connected to an iPad to view and save images.

    With the support of UVC in iPad OS17, you can now connect GOKO microscopes to your Type-C equipped iPad to observe and save clear real-time images. USB conversion adapter to USB Type-C required. Observation and saving on Mac is also possible. Contact us for supported applications.

    Can be connected to an iPad.

    Delivered in a special case

    It is delivered in a special semi hard case.
    It is convenient for carrying.
    The size is 250 (W) x 155 (H) x 80 (D) mm.

    special case

    Can be performed by a single person on site.

    A commercially available PC table allows hands-free use of the PC, allowing one person to operate the scope one-handed, even where there is no place to put the PC.

    The real-time videos can be shared via Zoom and Teams, making it easy to receive instructions from veteran members in remote locations and to train new members at different locations.

    example of use with a commercially available PC table
    example of use with a commercially available PC table

    Customization is available upon request.

    We accept customization requests from a single unit.

  • Options

    • goko-gmp-top.png
      GOKO Measure Plus Software

      Provides various image analysis functions and two-dimensional measurement functions. Greatly expands the applicability of clear images with GOKO's microscope.

      More information
    • usbfootswitch-p1.png
      USB Foot Switch for still image only (FS-1USB)

      Enable to release the shutter with your foot when shooting when taking still images. Prevents camera shake and improves the accuracy of the image.

      More information
    • simple_rotate_tilt_1.png
      Simplified rotary tilt table

      Objects can be simply fixed on the table (using micro suction cups), and can be tilted up to 90 degrees for easy observation from the side.

      More information
    • calibrationchart.png
      Glass Calibration Chart

      GOKO's special glass calibration chart used for calibration when measuring 2D dimensions.

      More information

  • Specifications

    Model Handheld Ultra Microscope
    GOKO　EV-13
    Image Signal 1/3"　CMOS Color Camera 1.3M pixels, Global shutter
    White Balance Can be set in the viewer software options (standard setting is auto white balance)
    Electronic Shutter Automatic (Can be fixed via the software GOKO Measure)
    Frame Rate 30fps max.
    Focusing Method Adjust by turning the focus ring
    Magnification approx. 590X (on 20-inch monitor)
    Lighting System Direct lighting by high luminosity LED
    Image Output USB 2.0 digital output by USB2.0 (USB Type A Male)
    Power Source DC5V, USB bus power
    Operating Temperature Operating Humidity 0～＋40℃
    MAX60%RH (without condensation)
    Dimensions φ40 (external diameter)×97 (length) mm (except the non-slip sticker, the grip and the cable)
    Weight 126g (without the Non-slip sticker and the cable)
    Attachments ① Non-slip stickers for replacement 1 sheet (50 sheets)
    ② USB Cable (1.8mm, USB TypeA）
    ③ Semi Hard Case
    ④ GOKO Measure
    ⑤ Manual (QR code)
    Location of Manufacture Japan
    Operating Environment
    (Software)    		 CPU 2.0 GHz or more is recommended
    Memory 512 MB or more is recommended
    Recommended resolution 1024 × 768 pixels or more
    USB Port Built-in USB 2.0 Port (Not guaranteed to operate with USB 1.1 or USB 2.0 card)
    Chip Set intel is recommended
    Others Deep depth of field despite ultra-high magnification (590x)
    GOKO's unique non-slip tip mechanism
    Grip for stable operation with one hand

    *Specifications and design of the products are subject to change without prior notice.

    *Occasionally, the product does not operate because of incompatibility even under the abovementioned conditions. We do not indemnify any loss of data or malfunctions that are caused by incompatibility.

    *The above environment is just recommended and not guaranteed.
