Close-up shot lens, GOKO LM-2

Lens for SLR cameras LM-2. Makes it possible for anyone to easily capture close-up shots even of moving or shaky objects.
    • lm2-f2.png
    • lm2-f3.png
    • lm2-f4.png
    • lm2-f5.png
    • lm2-f6.png
    • lm2-f7.png
    • Best suited for easily capturing high-quality close-up shots for professional use with your SLR
    • Free from motion blur or camera shake even when shooting with one hand
    • Capable of capturing close-up shots with deep depth of field
    • Attached exclusive strobe enables the same photographing conditions to be provided anytime
    • Popular among medical specialists such as dermatologists, veterinarians, and their assistants who need to capture high-quality close-up shots of affected areas very easily and quickly during surgical operations without spending much time on setting up
    • Effectively used by people with less experience of using SLR cameras even for difficult quality close-up shots
    • MADE IN JAPAN

    *LM-2 was developed exclusively as the lens for SLR cameras for close-up shots and provides the same features as our best-selling film compact camera series "MacromaX," the first camera in the world that made it possible for anyone to easily capture clear 10 cm close-up shots and to capture pictures as if the object had stopped moving even if the object was moving quite fast.

  • Features

    Extremely easy to use!

    Check out the video to see how easily and effectively LM-2 operates.

    LM2使い方


    Free from motion blur or camera shake. Requires no tripod!

    Moving latheMoving lathe
    Cat's feetCat's feet

    LM-2 does not suffer from motion blur or camera shake at all because the attached strobe and the conditions of the lens are customized for quality close-up shooting.
    You can easily capture very clear close-up shots of flowers swaying in the wind, moving insects, or small animals as well. LM-2 doesn't miss the right moment to capture the best shot.

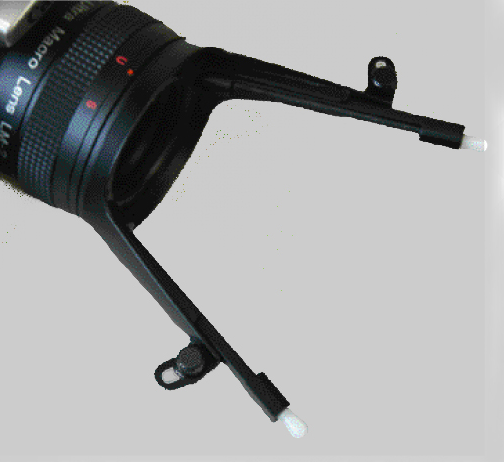

    Two "horns" clearly show the filming coverage and focus range, without looking through a view finder or at a monitor

    LM-2 has two "horns" that show the filming coverage and focus range; you only need to take LM-2 close to the object and release the shutter.
    LM-2 is popular among medical specialists for close-up shooting of skin or affected areas for documentary purposes.


    Anyone can easily capture quality close-up shots without technical knowledge

    LM-2 provides deep depth of field in close-up shooting. (Please see below.)
    LM-2 has a good reputation for capturing clear close-up shots of deep objects such as a mold or a lathe in rapid rotating motion.

    Depth of field

    Ultra-macro mode(U) Super-macro mode(S)
    ウルトラマクロモード(U)時 ウルトラマクロモード(S)時
    1 cm inside (from the front tip of horns toward lens) to 2 cm outside (from the front tip of horns toward object) 1 cm inside (from the front tip of horns toward lens) to 5 cm outside (from the front tip of horns toward object)
  • Sample Images

    • cat's feetcat's feet
    • a screwa screw
    • a flowera flower
    • skinskin

    Super macro mode: 0.25×Super macro mode: 0.25×
    Ultra macro mode: 0.50×Ultra macro mode: 0.50×

    Provides two kinds of magnification

    LM-2 provides two kinds of magnification; Ultra macro mode, 0.50×, and Super macro mode, 0.25× by turning the "change magnification" ring.
    The two "horns" are extendable to show the filming coverage and focus range of the two magnification modes.

    *magnification on imaging surface


    Digital SLRDigital SLR
    Film SLRFilm SLR

    "Horns" show the filming coverage of both film and digital SLR

    The two "horns" are flexible to show the filming coverage of film
    and digital SLR.


    Provides three different mounts

    LM-2 lets you choose between three compatible mounts (bayonet), Canon (EF), Nikon (F), and PENTAX (K).

  • Specifications

    Model LM-2
    Lens f = 38 mm
    Depth of Field 0.50×, 1 cm inside (from the front tip of horns toward lens) to 2 cm outside (from the front tip of horns toward object)
    0.25×, 1 cm inside (from the front tip of horns toward lens) to 5 cm outside (from the front tip of horns toward object)
    Strobe Power switch, ON/OFF
    Flash readiness, Flash of Red LED
    Power supply, 3V CR2
    Number of Flashes, approximately 350 (before recharge time between flashes lowers to 7 sec.)
    Compatible Mounts Bayonet mount lenses, Canon (EF), Nikon (F), and PENTAX (K)
    Operating Temperature 0 to 40 ℃
    Dimensions Total length, 130 mm
    External diameter of lens barrel, φ65mm
    Weight 250 g
    Standard Attachments 1.Pointer unit
    2.trobe unit
    3.CR2 lithium battery
    4.Lens Pouch
    Location of Manufacture Japan

    Specifications and design of the products are subject to change without prior notice.
