Stand Set for Lab & Industrial Use

Stunning Clarity for Precision Inspection and Observation ― Remote-Ready and Stereo Scope Alternative.

From production lines to metal surfaces to biological samples ― GOKO's optical technology brings every detail into sharp focus.

Multi-distance scope GOKO EV-6HD2 Stand Set for Lab & Industrial Use

Has great clarity for professional use, featuring GOKO's precise optical system.
Win / Mac / iPad (Type-C) ^*/ Android^* compatible.
Adjustable up to 170X ― ideal as a stereo microscope alternative.
Can be used as a webcam. Suitable for remote observation and enhanced explanation.
Standard tripod holder ― also fits your own stand or arm.
Crisp clarity × deep depth of field.
USB bus power: just connect one cable to PC.
Includes advanced measurement software.
Made in Japan.

* Compatible iPad/Android must have USB-C; Lightning is not supported, and a small number of Android may be incompatible.

Professional-Grade Clarity Powered by GOKO's Optical Excellence

Why pay tens of millions for high-end imaging? Get comparable quality with GOKO ― backed by over 70 years of Japanese craftsmanship, trusted across industries, and backed by real success. See the difference in our case studies.

Crisp clarity × deep depth of field.
Built for Solo Use ― and Seamless Teamwork

Observe and save images on Windows, Mac, iPad (Type-C)^*, and Android^* devices. You can effortlessly add image diagnostics to your existing tablet-based inspection workflows. Contact us for supported software.

The real-time videos can be shared via Zoom and Teams, making it easy to receive instructions from veteran members in remote locations and to train new members at different locations.

* Compatible iPad/Android must have USB-C; Lightning is not supported, and a small number of Android may be incompatible.

High Magnification Meets Deep Depth of Field

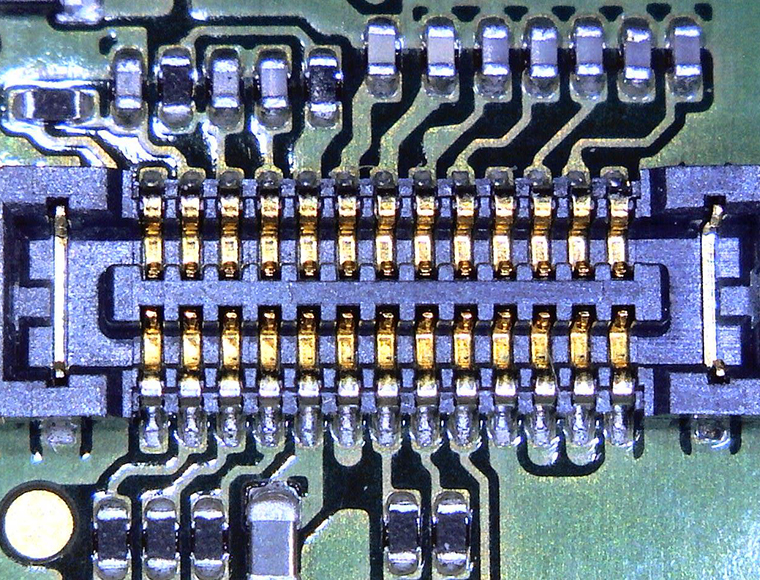

PCB【Lower magnification】

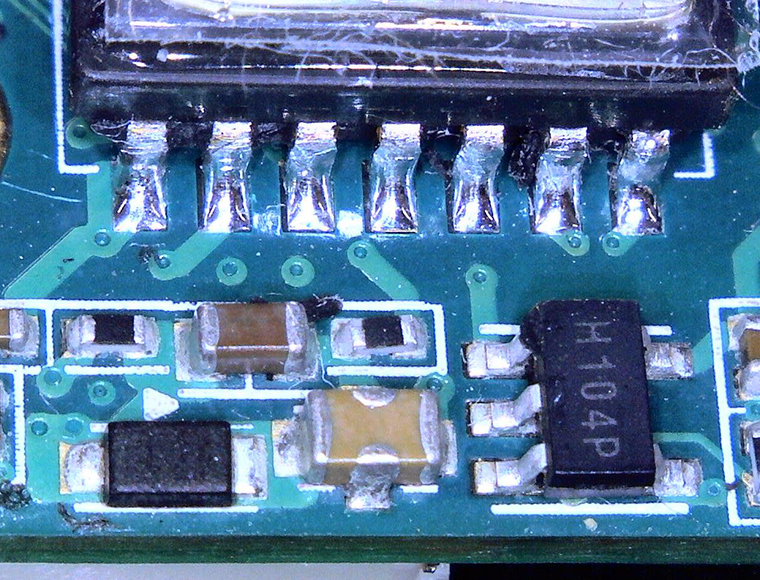

PCB【Medium magnification】

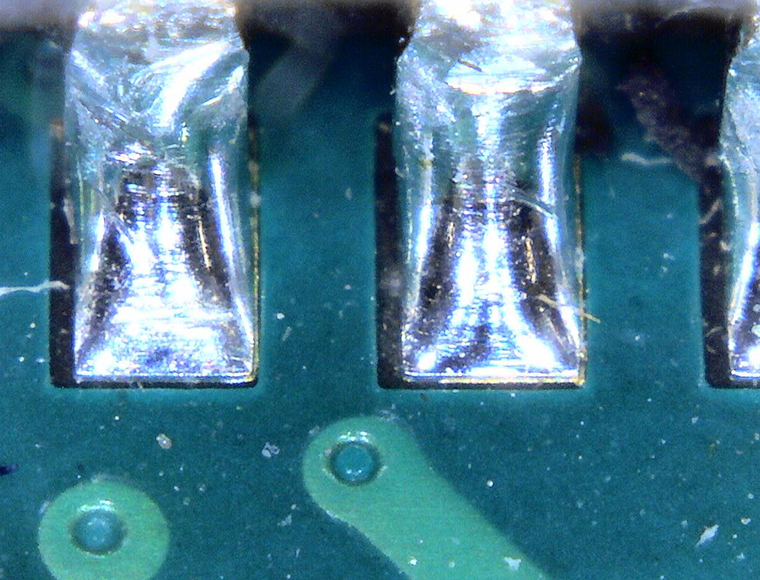

PCB【Higher magnification】

Up to 170× magnification with a 20-inch monitor. Smooth focusing for effortless precision ― even for new users.

GOKO's proven optical and camera technology makes it easy to cover distant and ultra-close targets with one device. Trusted across industries thanks to its flexibility and clarity. See case studies

Factory Inspections：Real-time checks on production lines, machining, painting, electronics, tool wear, surface defects, defective parts, and remote inspection.
Medical & Life Sciences：High-definition imaging for tissue, cell, and petri dish observation, precise measurement, sample documentation, and collaborative data sharing.

Photo Gallery Video Gallery

Magnification That Adapts to Your Needs

Super-closeup to distant view, with one unit!

Working distance and field of view

Magnification on 20" monitor	x170	x55	x100	x40	x25	x15	x5	x3	x2
Field of view (H×W mm)	1.8×2.4	5.6×7.4	2.9×3.9	7×10	13×17	20×26	55×73	89×118	173×231
Working distance (mm)	21.3	21.3	15	30	65	100	300	500	1,000

Suitable for inspection from a distance as well:

Since it is possible to shoot from distant view to close-up, GOKO EV-6HD2 is also ideal for inspecting and monitoring the processing of machine tools or painting conditions of industrial parts.

Photo Gallery Video Gallery

iPad^/Android^ Compatible & Remote-Ready.

Can be connected to an iPad^*.

The GOKO EV-6HD2 is a driverless microscope that can be connected to Win, Mac, iPad(Type-C), or Android.

When using the GOKO EV-6HD2 as a camera for the Zoom application, you will have an easy and inexpensive system that allows you to share clear, enlarged movies/images with remote locations in real time.

Zoomを活用し、遠隔地へもリアルタイム共有 — Real-time sharing to remote locations using Zoom

Example of use

Enhance technical sales by sharing live zoomed-in visuals with clients.
Check processing conditions remotely ― with crystal-clear magnification

* Compatible iPad/Android must have USB-C; Lightning is not supported, and a small number of Android may be incompatible.

Free or Paid Options Available
Powerful Measurement Software

You can choose the measurement software according to your needs.

"GOKO Measure"(Free)
equipped with 2D measurement function
(Vertical distance, distance between circle centers, specified angle, 3-point specified circle, polygon, etc.)
"GOKO Measure Plus"(Optional)
for advanced image analysis and measurement
(Halation removal, HDR composition, focus composition, image tiling, background subtraction, overlay, etc.)

HDR (High Dynamic Range) Composition
Focus Composition

Click here for details of GOKO Measure Plus

High-stability stand and tripod mount included as standard.

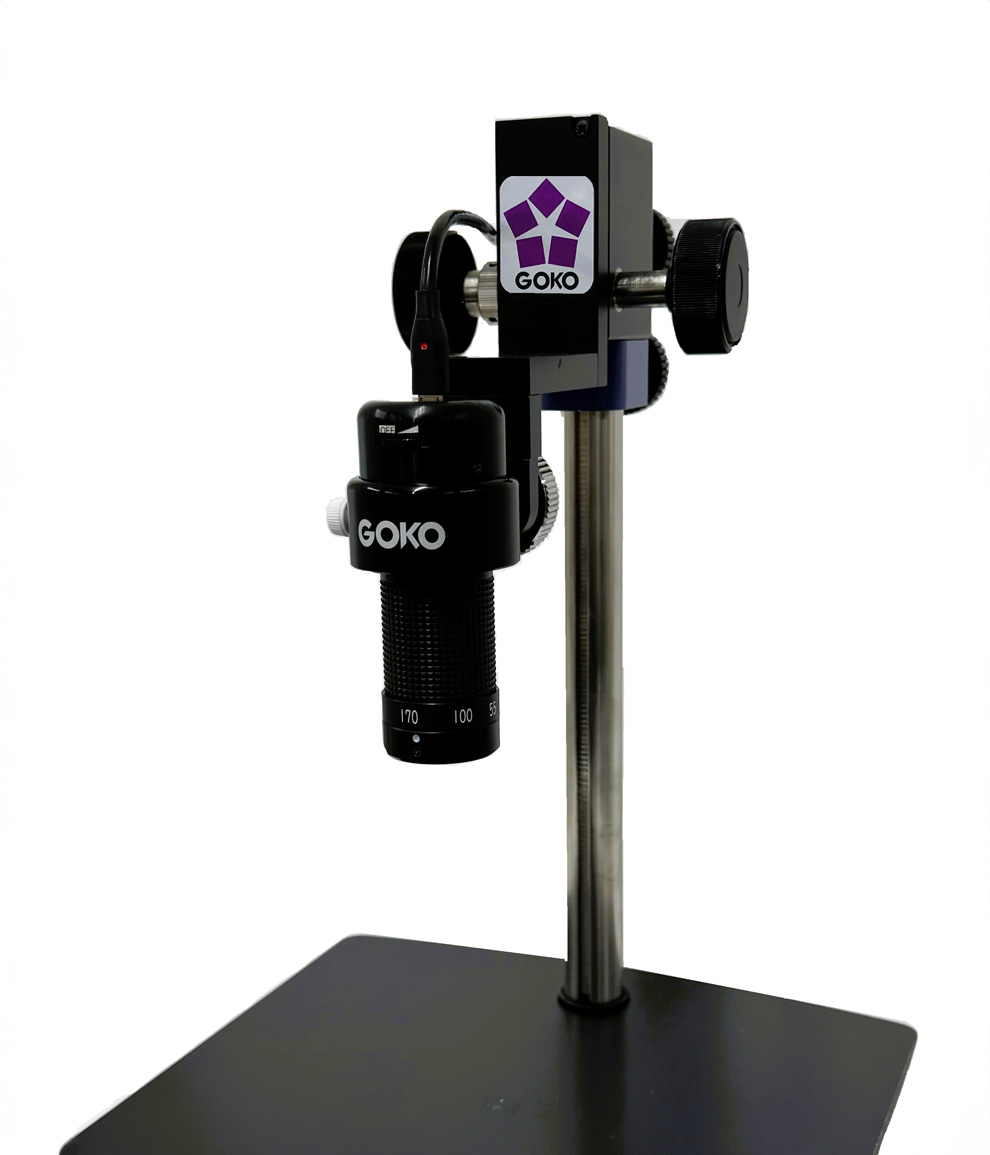

Standard Stand: "Stand 2"
Stand 2 is included in the Stand Set for Lab & Industrial Use ― engineered for stable, precise mounting.

Stand 2 features:

A precision dial for fine vertical adjustment
A sturdy aluminum stage
A safety stopper to prevent accidental drops

The vertical travel distance is 37.6 mm, controlled by the handle.
Pole lengths are available in 300 mm, 350 mm, and 450 mm.

The camera can be securely mounted using the included tripod-thread-compatible holder. It can also be easily attached to commercially available stands and flexible arms.

Other Mounting Options Available

We also offer the following optional accessories. Please contact us for more details:

Stand 1：Basic model for simple vertical and angle adjustments
Inclined Stand 1：Features angle display for precise tilted observation, in addition to Stand 2's functions
Flexible Arm 1：Standard type, supports up to 2 kg
Flexible Arm 2：Heavy-duty type, supports up to 6 kg

Stand 2
Stand 1
Tilt Stand 1
Flexible Arm 1
Flexible Arm 2
Tripod Holder, standard option (front)
Tripod Holder, standard option (back)

Also Perfect for Easy Handheld Use

The GOKO EV-6HD2 delivers outstanding usability not only on stands but also in handheld mode. Its lightweight, compact body makes handheld observation easy and comfortable. For added stability during one-handed use, the optional camera handgrip is highly recommended.

LED Can Be Turned Off
Built-in light: dimmable/off. External-lighting compatible.

The tip-mounted LED is dimmable and can be turned off. Works with ring lights and other external sources. For glare-free imaging and specialized applications, ask us about external lighting options.

Ask us if you need customization:

GOKO is happy to accept customization requests for as little as one unit.
GOKO EV-6HD2 has a proven track record of meeting customization requests in various fields due to its image clarity, such as

To change the microscope's shape so that it can be mounted in a specific position for microfabrication inspection.
To change the magnification specification to fix at a specific magnification to observe the scalp.
To be incorporated into a visual inspection system.

Tell us what you want.

Customization Details

Photo Gallery

For a wide range of quality inspections, monitor checks on manufacturing lines, education, beauty, cosmetic and health applications.

For industry and manufacturing such as quality inspection and manufacturing line check

For inspection of electronic board (PCB/PWB) such as lead and meniscus, line check of the mounting of FPC connector
For inspection of surface of parts after metal processing, sheet metal dimensional inspection, hole position inspection
For inspection of microfabrication/position confirmation, and inspection of cutting plate dimension/hole position
As a built-in camera for inspection equipment
For enlarged visual inspection of welded parts
For inspection/confirmation of coating film or coating condition of automotive parts

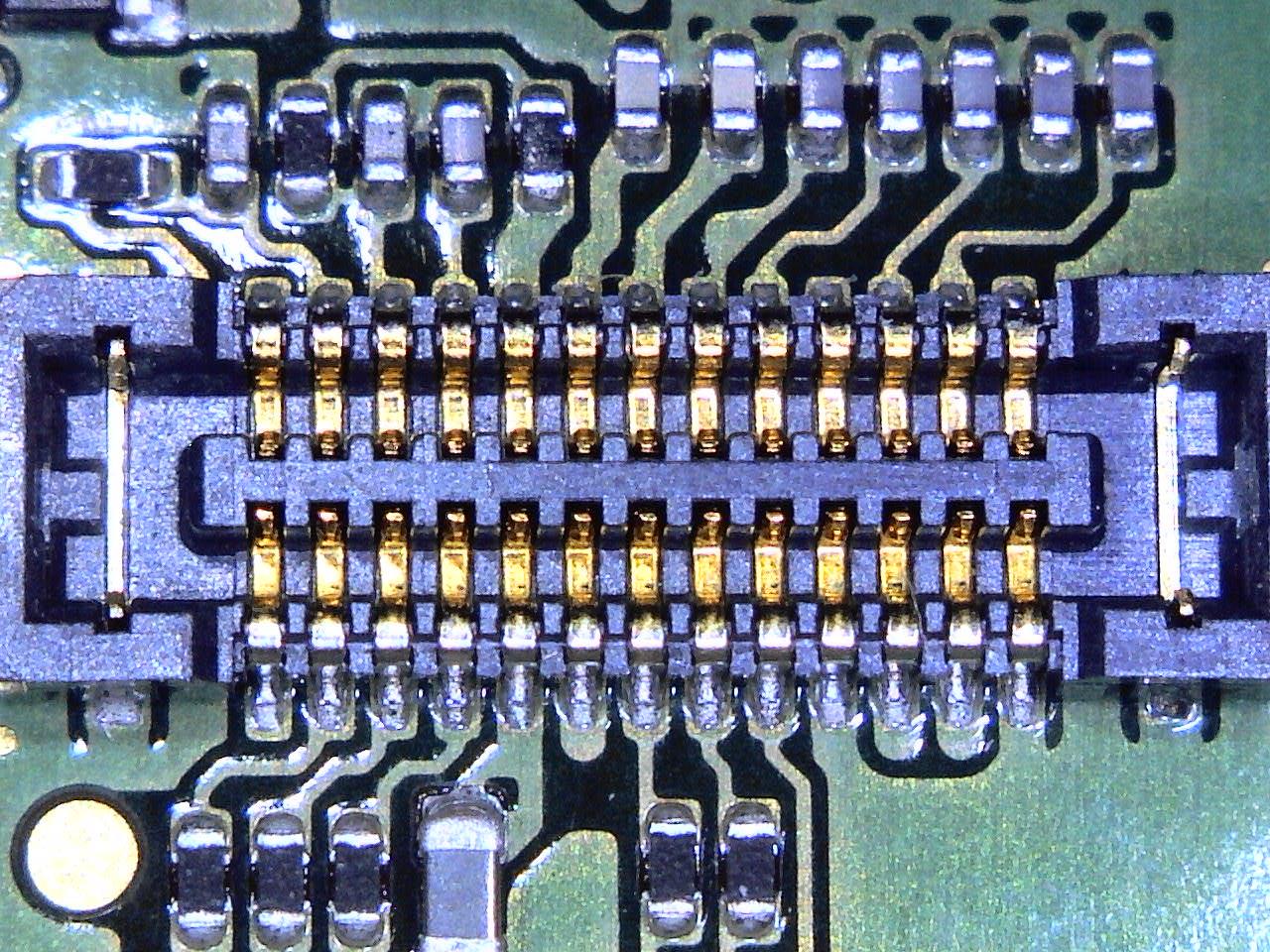

PCB【Lower magnification〜Higher magnification】

Lower magnification

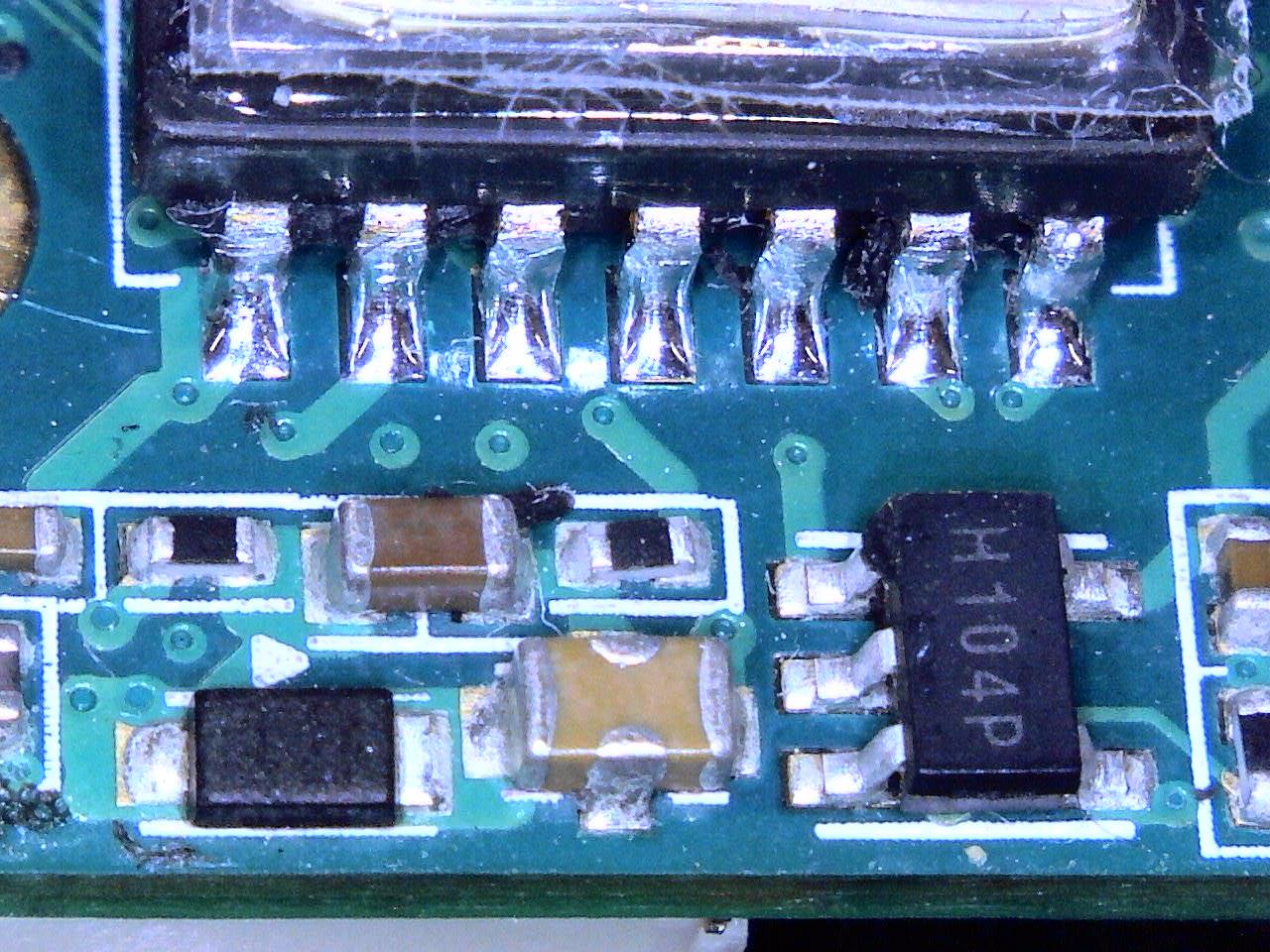

Medium magnification

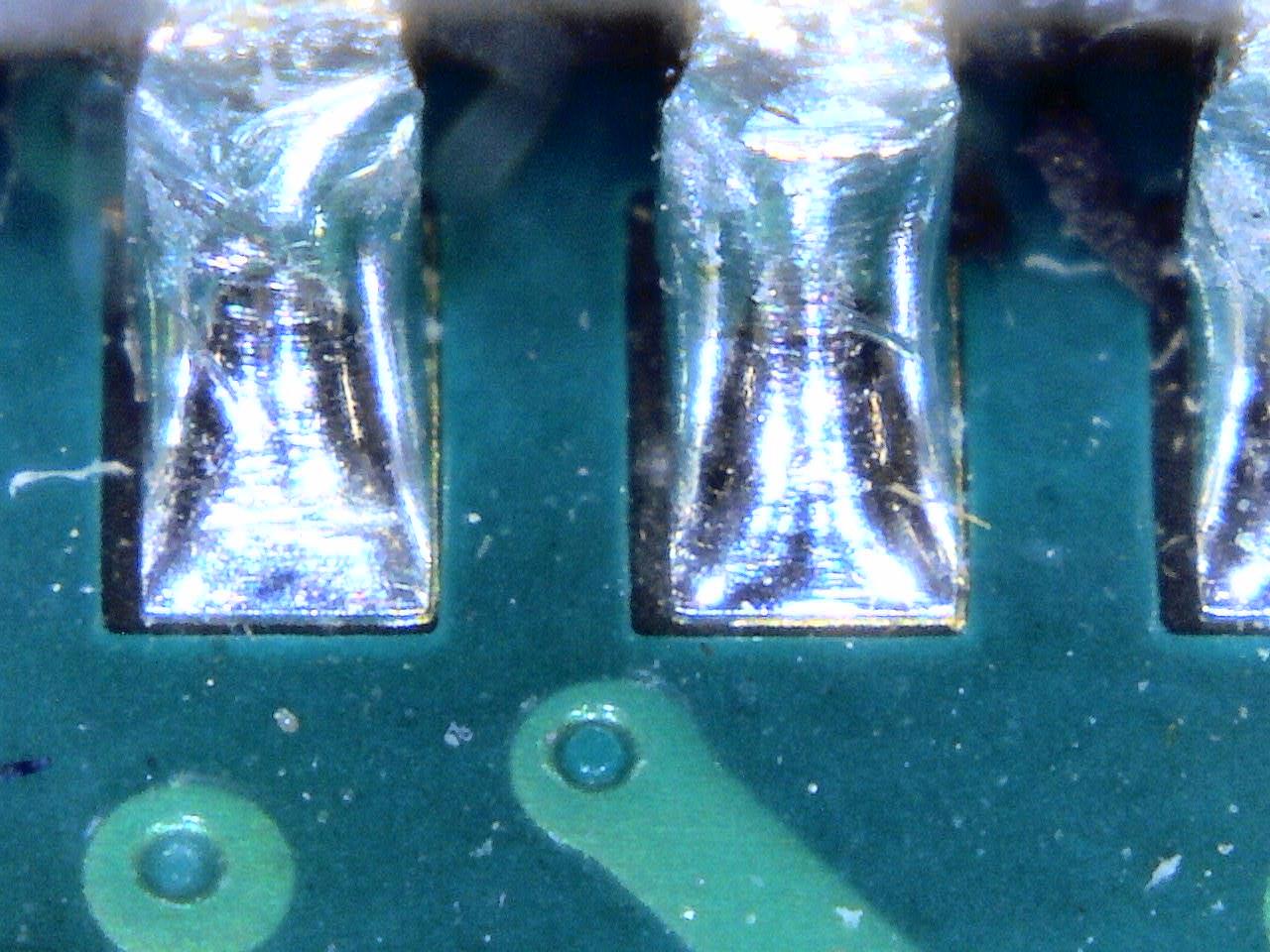

Higher magnification

Confirmation of lathe machining condition

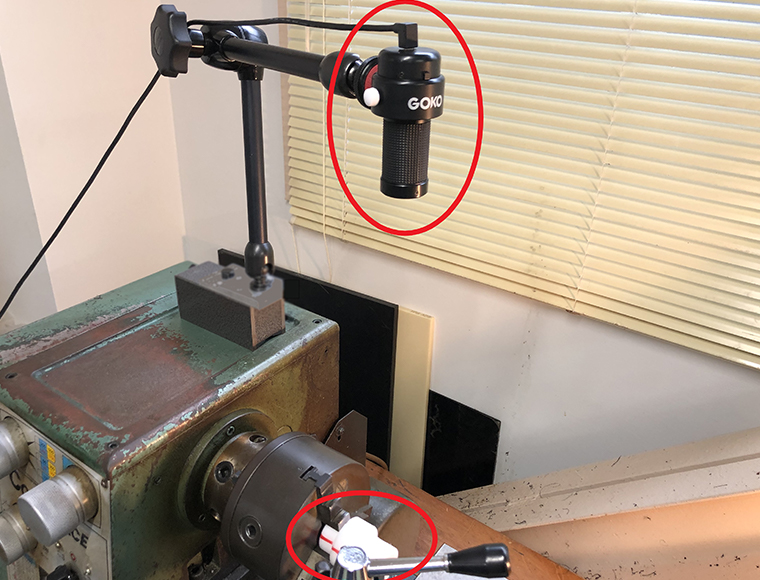

Magnified inspection of the cutting state by lathe
Checking the lathe processing status

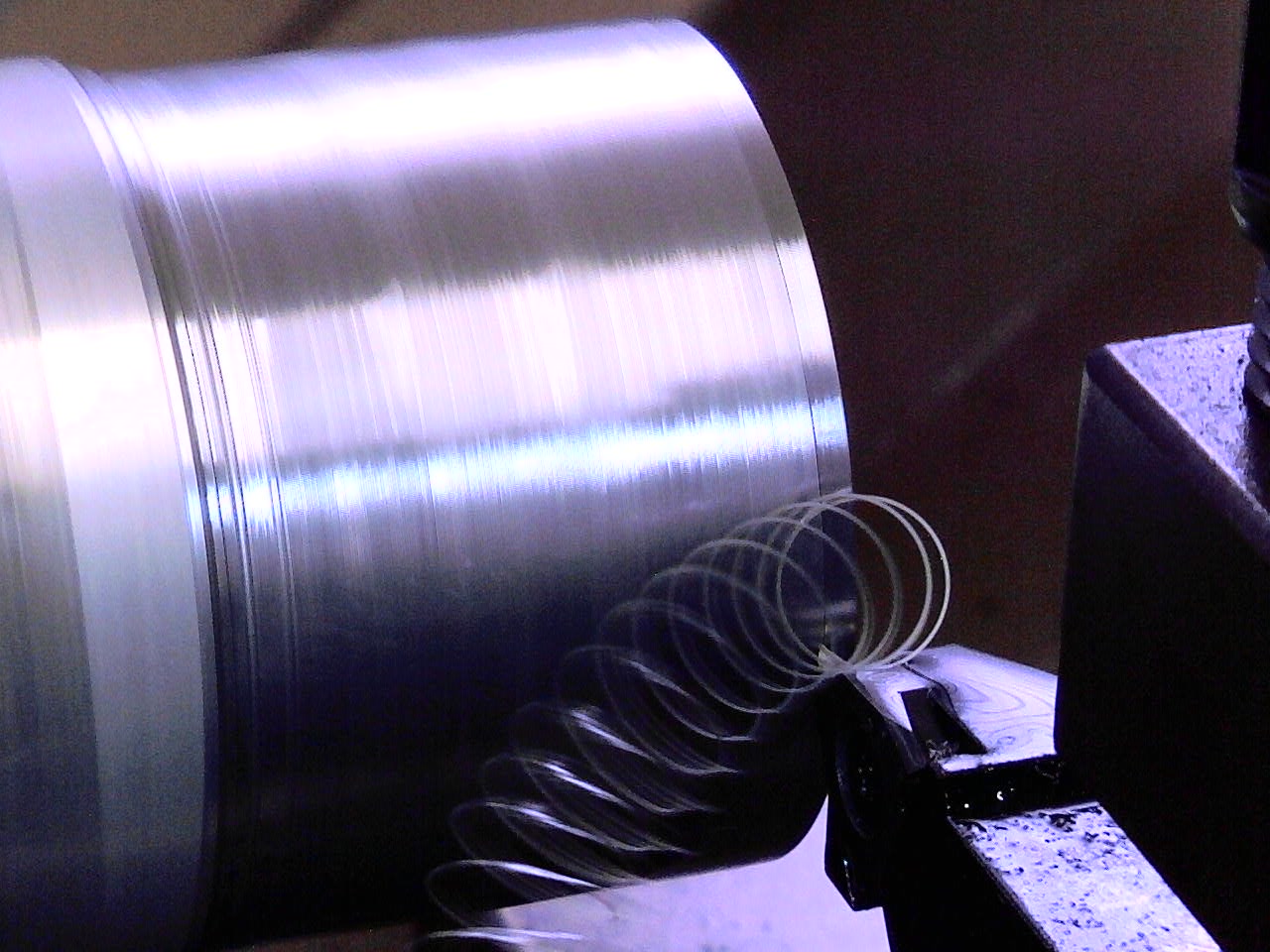

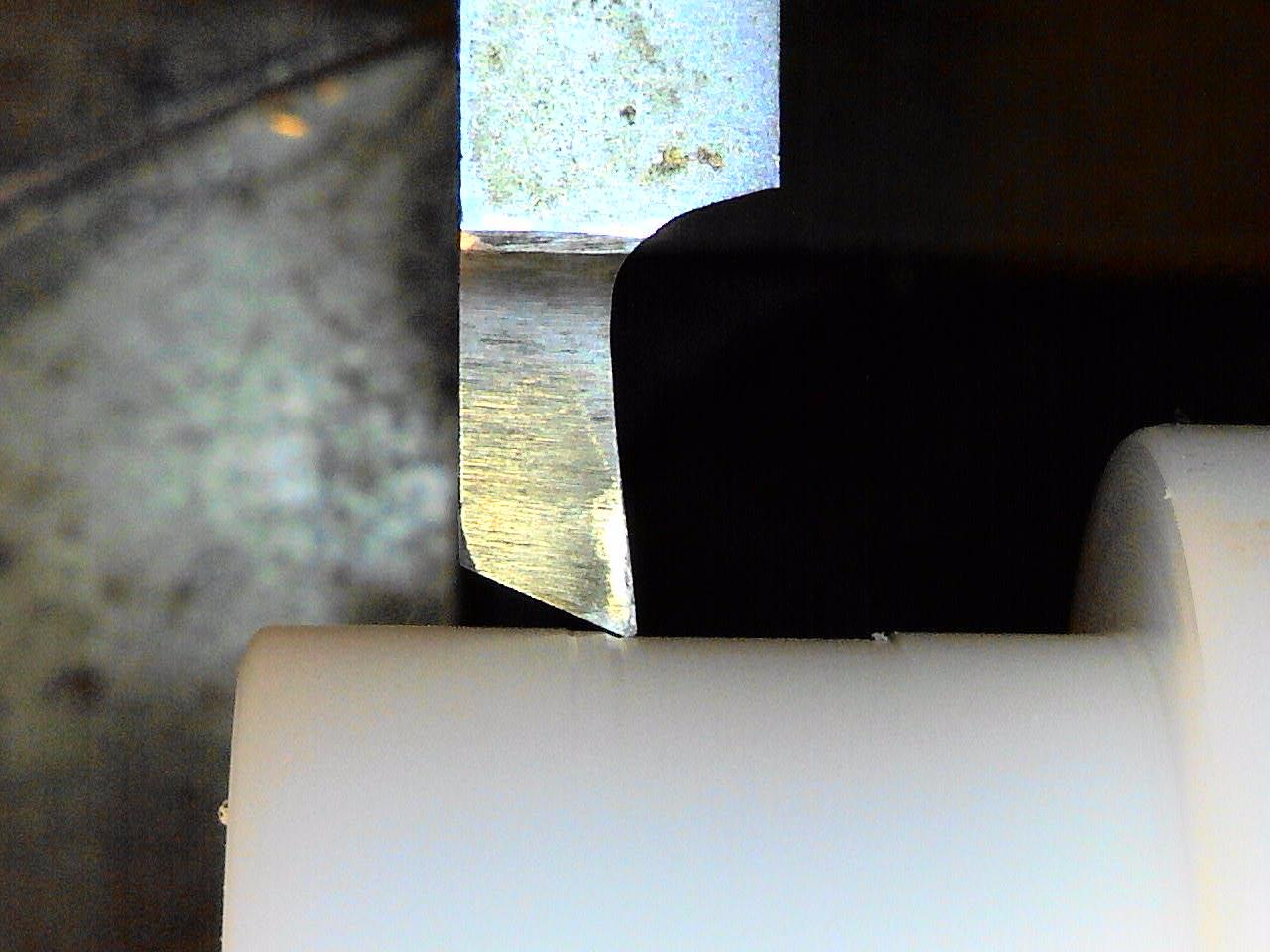

Lathe manufacturing

For beauty, cosmetic, health and medical research applications

For scalp and hair root observation
For checking the skin condition
For observation of eyelashes (extensions, mites)
For observation of oral cavity, tongue coating, and capillaries of the tongue
Other living body photography/observation

Skin surface【Medium magnification・Higher magnification】

Medium magnification
Higher magnification

Head, etc.

Hair and scalp
Wart on the scalp
Eyeball
Pharynx, tonsils
Pores and hair roots

For life science and educational use

For magnified photography of creatures, living things such as plants, flowers and specimens
For presentation of microscopic observation to share in real time among large numbers of people
