Handheld Set for Human Studies & Cosmetic

Clinical-Grade Imaging for Skin, Scalp & Hair ― With Stunning Clarity for Professionals.

Experience unmatched clarity in observing skin, scalp, and hair conditions ― powered by GOKO's original optical and imaging technology. Trusted in clinical trials and academic publications.

Multi-distance scope GOKO EV-6HD2 Handheld Set for Human Studies & Cosmetic

Has great clarity for professional use, featuring GOKO's precise optical system.
Win / Mac / iPad (Type-C) / Android compatible.
View unmovable objects on-site from multiple angles.
Can be used as a webcam. Suitable for remote observation and enhanced explanation.
Optional handgrip enables one-handed observation.
Crisp clarity × deep depth of field.
USB bus power: just connect one cable to PC.
Includes advanced measurement software.
Made in Japan.

Professional-Grade Clarity Powered by GOKO's Optical Excellence

Why pay tens of millions for high-end imaging? Get comparable quality with GOKO ― backed by over 70 years of Japanese craftsmanship, trusted across industries, and backed by real success. See the difference in our case studies.

Crisp clarity × deep depth of field.
Built for Solo Use ― and Seamless Teamwork

Observe and save images on Windows, Mac, iPad (Type-C), and Android devices. You can effortlessly add image diagnostics to your existing tablet-based inspection workflows. Contact us for supported software.

For PC users, a simple addition of a compact PC table allows smooth one-handed scope operation ― even in tight spaces where a full workstation isn't available.

The real-time videos can be shared via Zoom and Teams, making it easy to receive instructions from veteran members in remote locations and to train new members at different locations.

Counseling with iPad

High Magnification Meets Deep Depth of Field

Skin surface (high magnification)

Skin surface（Medium magnification）

Hair and scalp

Wart on the scalp

Up to 160× magnification with a 20-inch monitor. Smooth focusing for effortless precision ― even for new users.

GOKO's proven optical and camera technology makes it easy to cover distant and ultra-close targets with one device. Trusted across industries thanks to its flexibility and clarity.

Case Study：Trusted for scalp observation in clinical trials of hair growth products, for skin evaluation in cosmetics development, and for sample testing in pharmaceutical research.

Photo Gallery Video Gallery

Realized from close-up (160X^※1) to distant view!

Super-closeup to distant view, with one unit!

Working distance and field of view

Magnification on 20" monitor	x170	x100	x55	x40	x30	x25	x15	x5	x3	x2
Field of view (H×W mm)	1.8	5.6	2.9	7	11	14	20	55	89	173
Field of view (H×W mm)	2.4	7.4	3.9	10	15	19	26	73	118	231
Working distance (mm)	21.3	21.3	15	30	50	65	100	300	500	1,000

Suitable for inspection from a distance as well:

One device, limitless range: from full facial imaging to magnified skin inspection.

Photo Gallery Video Gallery

iPad/Android Compatible & Remote-Ready.

Can be connected to an iPad.

The GOKO EV-6HD2 is a driverless microscope that can be connected to Win, Mac, iPad(Type-C), or Android.

When using the GOKO EV-6HD2 as a camera for the Zoom application, you will have an easy and inexpensive system that allows you to share clear, enlarged movies/images with remote locations in real time.

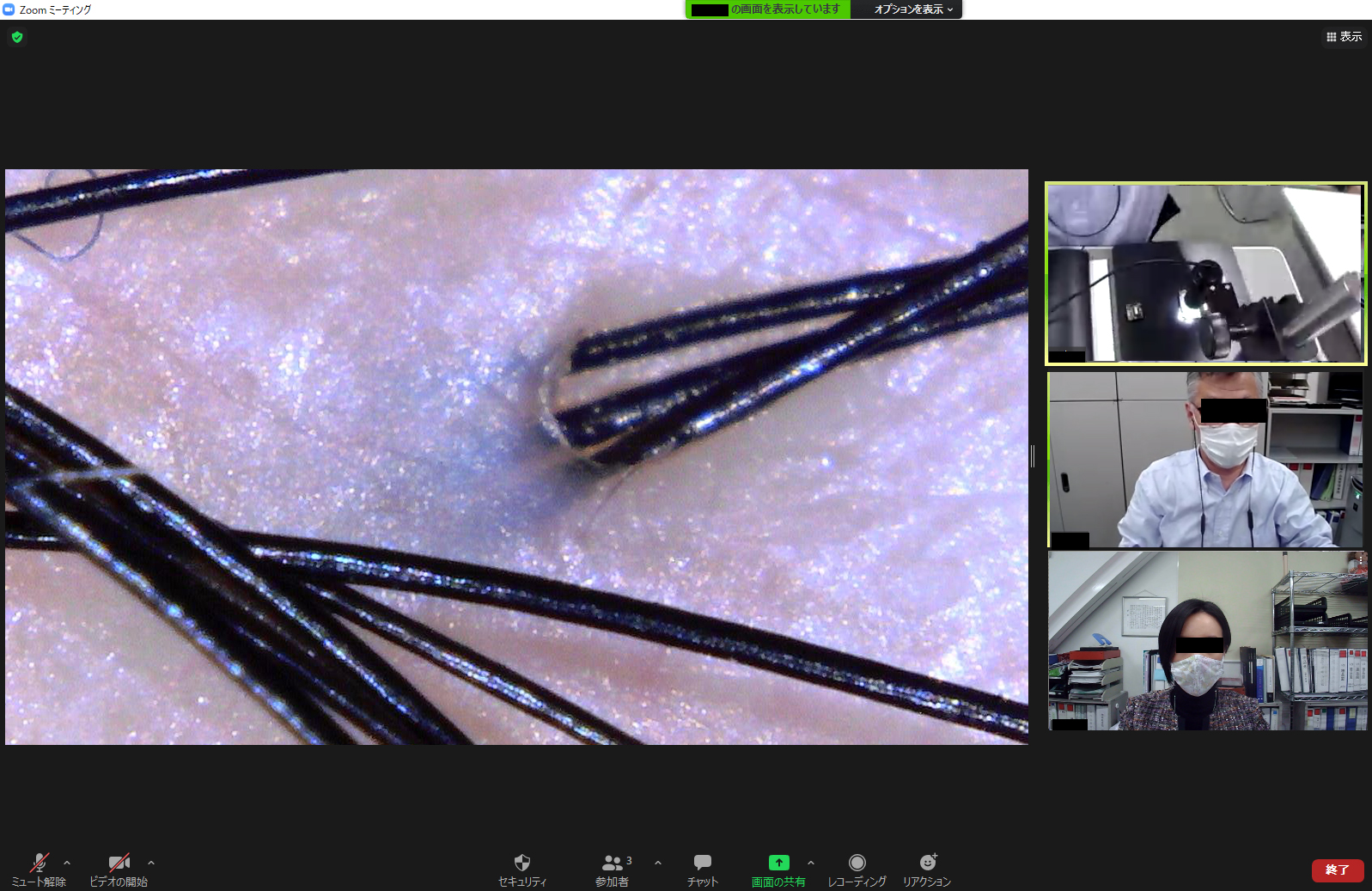

Real-time sharing to remote locations using Zoom

Example of use

Share both full-body or facial views and close-up images of injuries in real time during telemedicine sessions ― with good clarity.

Note: Due to device specifications, some models may rarely be unsupported.

Free or Paid Options Available
Powerful Measurement Software

You can choose the measurement software according to your needs.

"GOKO Measure"(Free)
equipped with 2D measurement function
(Vertical distance, distance between circle centers, specified angle, 3-point specified circle, polygon, etc.)
"GOKO Measure Plus"(Optional)
for advanced image analysis and measurement
(Halation removal, HDR composition, focus composition, image tiling, background subtraction, overlay, etc.)

Image Tiling (Image Connecting)

Before Image Tiling

After Image Tiling — Cross section of a pine stem

Click here for details of GOKO Measure Plus

Easy One-Handed Operation with Camera Handgrip

With the optional camera handgrip, you can achieve stable, high-magnification observation ― even with just one hand.

Tripod Mount Included
― Easy Setup Anywhere

The GOKO EV-6HD2 has a compact body and is ideal for handheld operation, but it is also suitable for fixed observation.
Since a "tripod holder" is included as a standard, it can be freely attached to a commercially available arm or stand that supports tripod screws.
We also offer a wide variety of flexible arms and stands as options. We have various mounting methods such as magnet type and clamp type.
Feel free to contact us if you have inquiries about the installation or mounting on special location or machines.

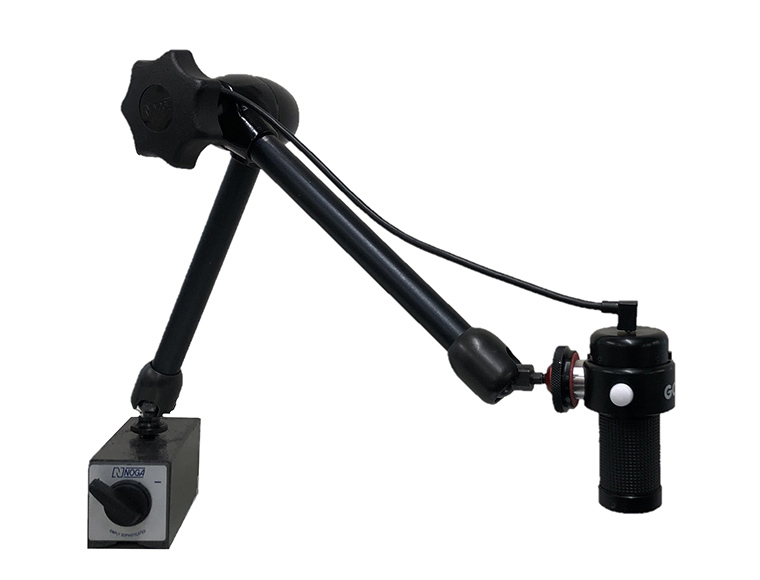

Flexible Arm2
Tilt Stand1

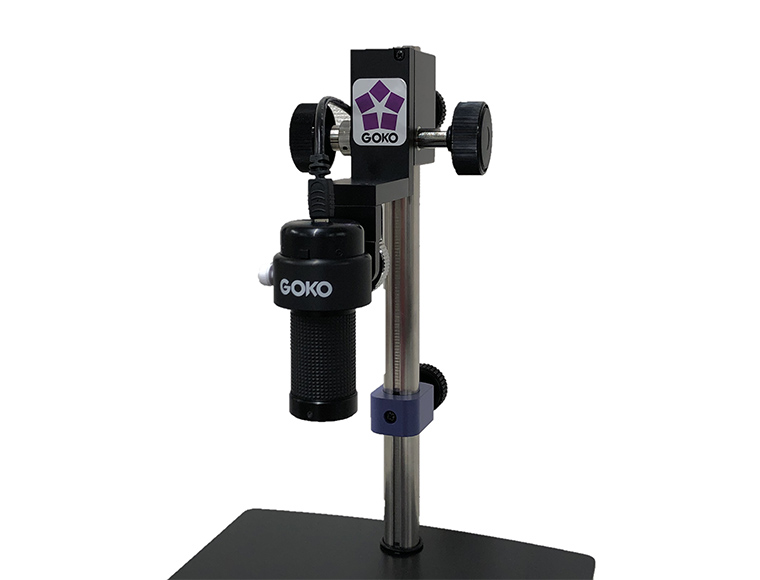

Stand2
Tripod Holder, standard option (front)
Tripod Holder, standard option (back)

LED Can Be Turned Off
― Built-in light: dimmable/off.

The tip-mounted LED is dimmable and can be turned off.

Attached focus enables to observe with two focal points:

When the focus cap is attached and the tip of the cap is in contact with the subject, GOKO EV-6HD2 provides you with two kinds of magnification (160X and 50X), you can do this by only turning the focus adjustment ring. There is no need to change lenses.

Ask us if you need customization:

GOKO is happy to accept customization requests for as little as one unit.
GOKO EV-6HD2 has a proven track record of meeting customization requests in various fields due to its image clarity, such as

Customized for fixed-magnification scalp observation.
Adapted for unique skin imaging applications.

Tell us what you want.

Customization Details

Photo Gallery

For a wide range of quality inspections, monitor checks on manufacturing lines, education, beauty, cosmetic and health applications.

For beauty, cosmetic, health and medical research applications

For scalp and hair root observation
For checking the skin condition
For observation of eyelashes (extensions, mites)
For observation of oral cavity, tongue coating, and capillaries of the tongue
Other living body photography/observation

Skin surface【Medium magnification・Higher magnification】

Medium magnification
Higher magnification

Head, etc.

Hair and scalp
Wart on the scalp
Eyeball
Pharynx, tonsils
Pores and hair roots

For life science and educational use

For magnified photography of creatures, living things such as plants, flowers and specimens
For presentation of microscopic observation to share in real time among large numbers of people
