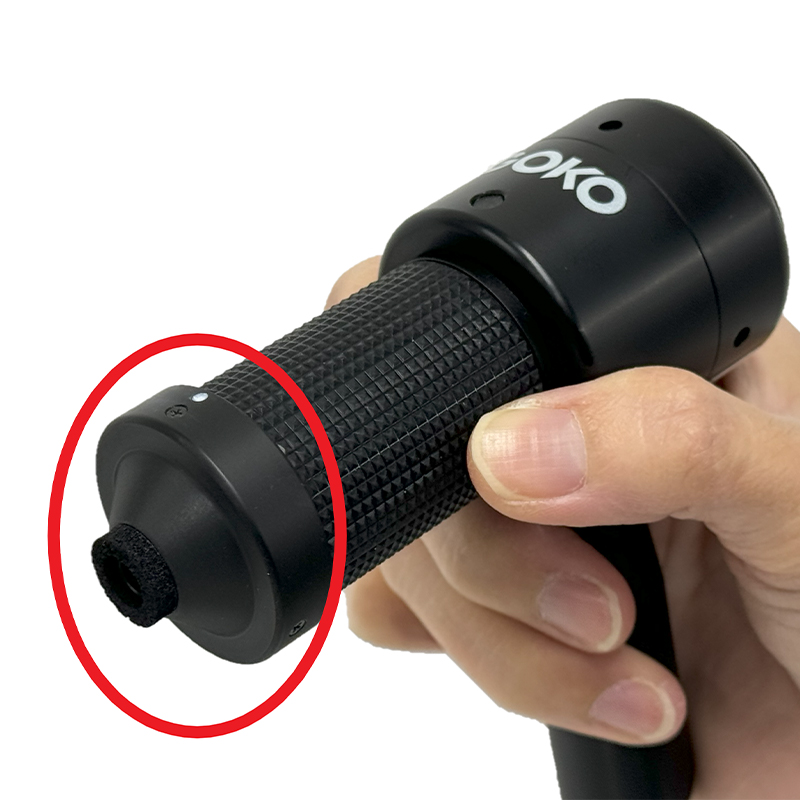

Customer's request:

"We would like to improve the quality of processed products and reduce the cost of roll repair maintenance by observing a hot processing machine and easily inspecting the surface roughness (scratches and unevenness invisible to the naked eye), shape, and wear condition of the machine's cylinder rolls and blades in a handheld manner."

Our solution:

We customized the tip of the device to heat-resistant specifications.

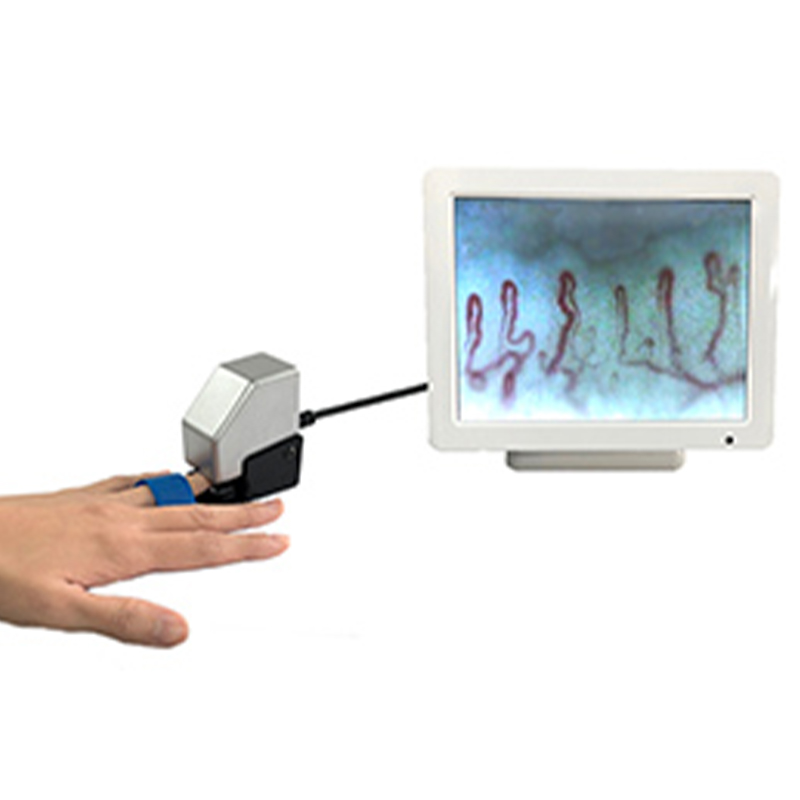

Customer's request:

"We would like to observe capillaries for an extended period using a compact capillaroscope with a mounting mechanism."

Our solution:

We developed a compact capillaroscope with a fixing structure and modified the design to enable stable, long-duration observation of capillaries.

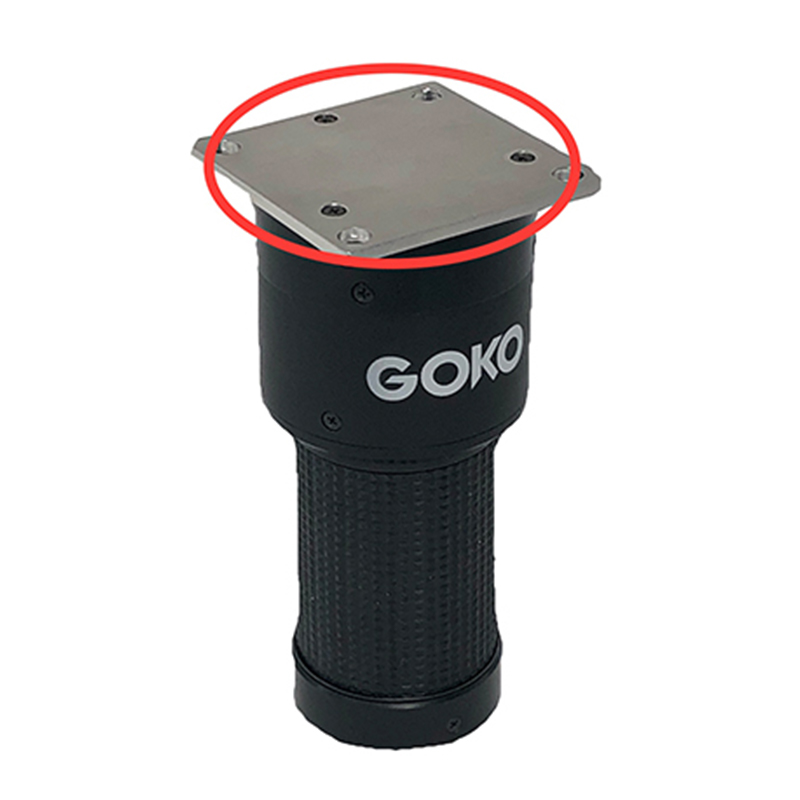

Customer's request:

"We want to mount the GOKO's microscope in a specific position for microfabrication inspection."

Our solution:

We designed a fixing base that matches the customer's machine.

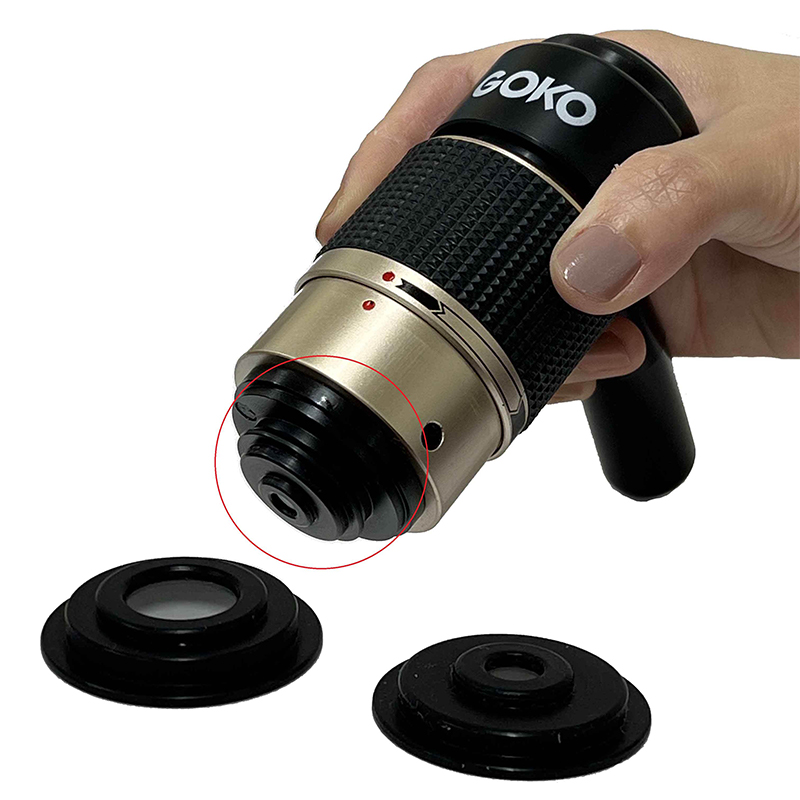

Customer's request:

"We want to make observations with a field of view of exactly 1 mm."

Our solution:

We perform optical design to allow focusing at a specific.

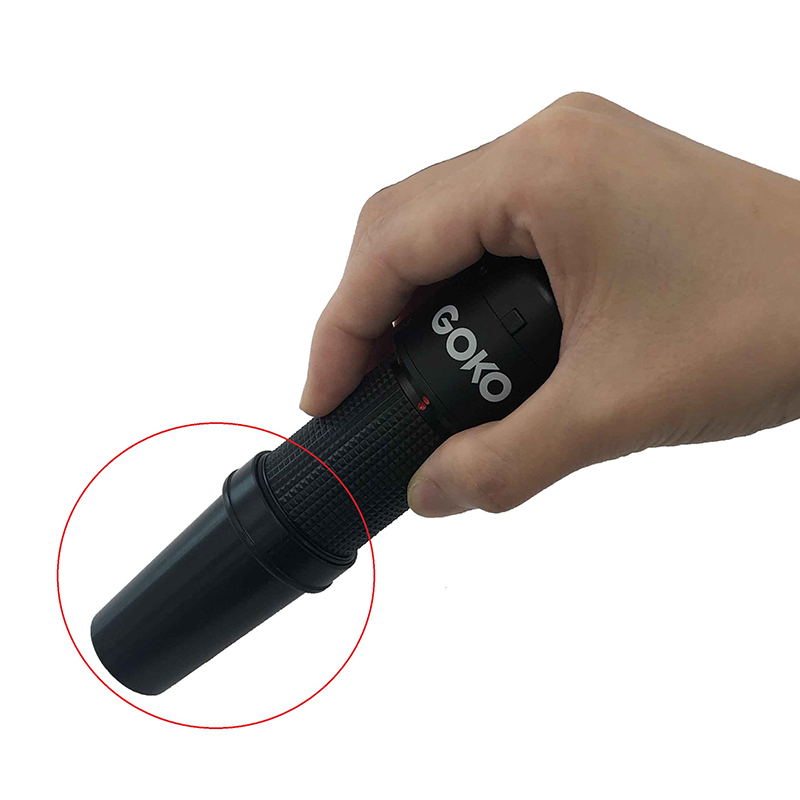

Customer's request:

"We want to limit the observation to a specific magnification."

Our solution:

We designed the camera to be able to focus at a specific magnification. The mechanism for fixing the magnification ring was also added to prevent the focus from shifting after the focus adjustment is completed..

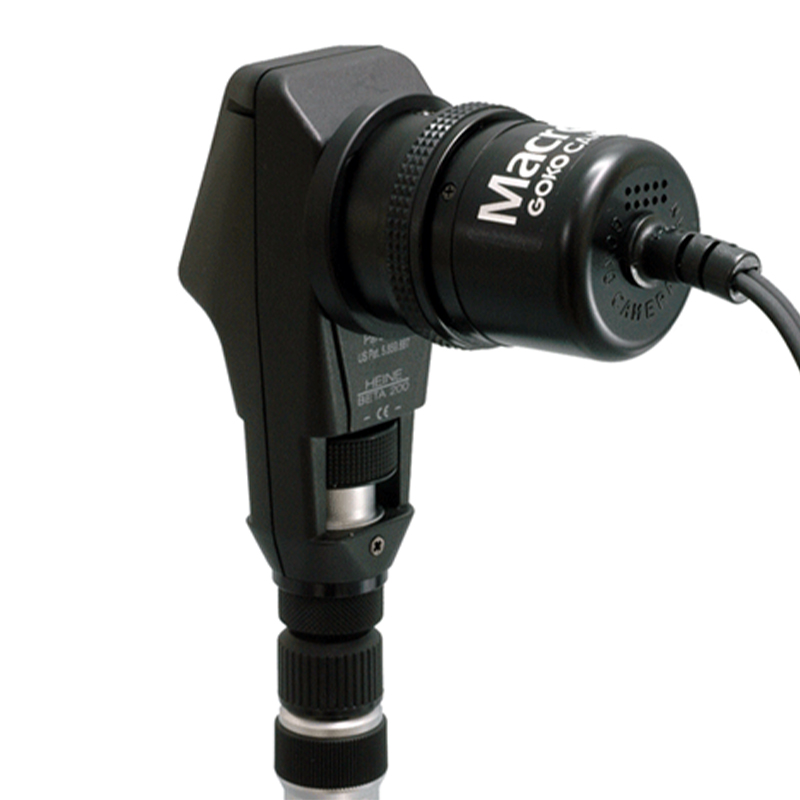

Customer's request:

"I want to project the observation of the retinoscope＊ that we always use on the monitor."

Our solution:

We customized the mechanism and optical design so that the retinoscope image can be projected on the monitor.

Customer's request:

"We want to inspect components on a TV monitor instead of using a computer."

"We do not require measurement functions and would prefer not to install a dedicated computer or high-cost tablet on the factory floor. We want to display magnified live images on a TV monitor for component inspection."

Our solution:

We customized the GOKO EV-6HD2 to output magnified live images directly to an NTSC-compatible monitor.

This allows operators to perform visual inspections without using a computer or tablet, providing a simple and practical setup for the factory floor.

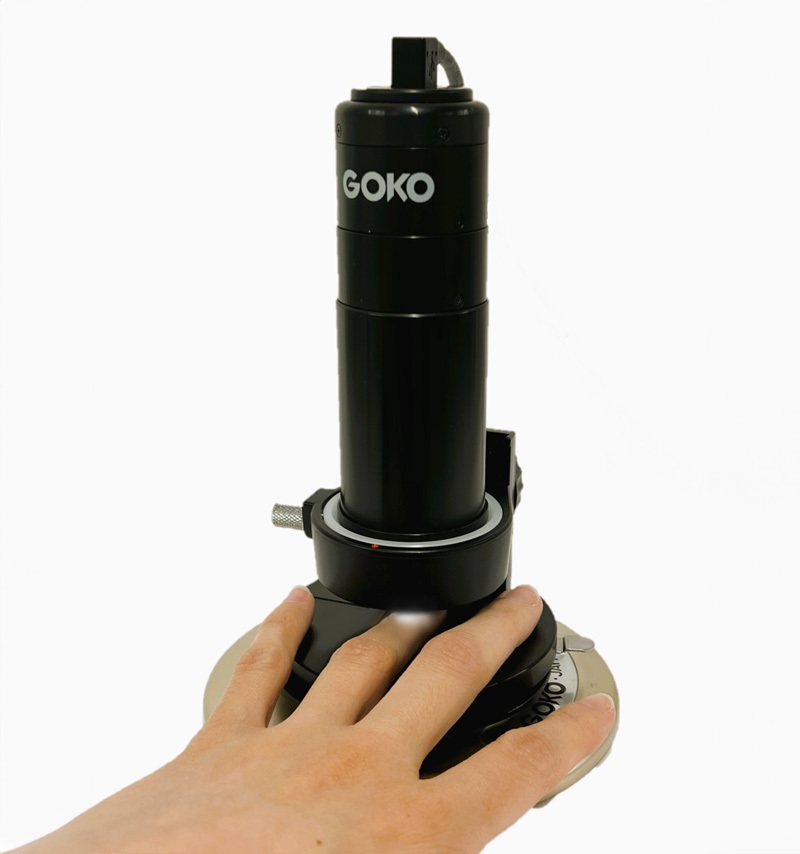

Customer's request:

"We want to switch between observing dark spots and skin texture at a specific magnification."

Our solution:

We customized the microscope with two switchable observation modes: one reduces reflections from the skin surface to provide clear images of dark spots, while the other reveals the skin's surface texture.

The user can switch between the two modes without changing the observation position, enabling efficient comparison and consistent image capture of the same area.
