Software for advanced image analysis and measurement GOKO Measure Plus

Advanced Imaging & Analysis for Biomedical Discovery

"GOKO Measure Plus" enhances the power of GOKO's high-quality microscopes, delivering superior imaging and extended functionality. Designed for the observation and analysis of living tissues―including capillaries, skin, and cells―it combines advanced image processing and precise measurement tools, all at a highly accessible price.

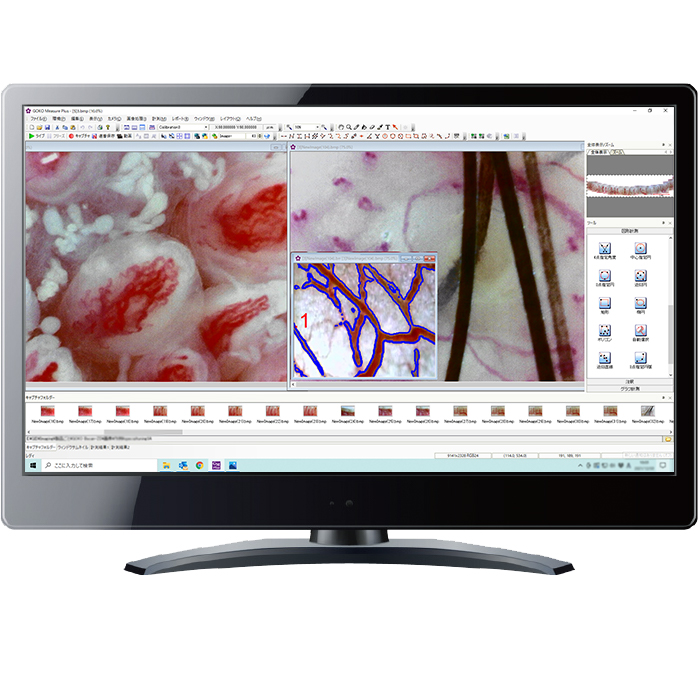

GOKO Measure Plus

From Capillaries to Cells: Powerful Software for Precision Research

Image Tiling (Image Connecting)

Image Tiling allows you to easily create a composite image. You can quickly combine multiple images to create a vertical and horizontal composite. In viewing details, the composite shows the entire subject, maintaining the number of pixels of the original image.
You can combine images either during or after photographing them.

Applications:

  • Scenario: I wanted to take panoramic snapshots of the capillaries of the entire fingertip with ultra-high-magnified images.
  • Scenario: When presenting the change of the number of capillaries in the nail-fold, I want to display the entire image, including the peripheral area around the observation target area, in order to avoid criticism that I intentionally manipulated the results."

Photo Gallery

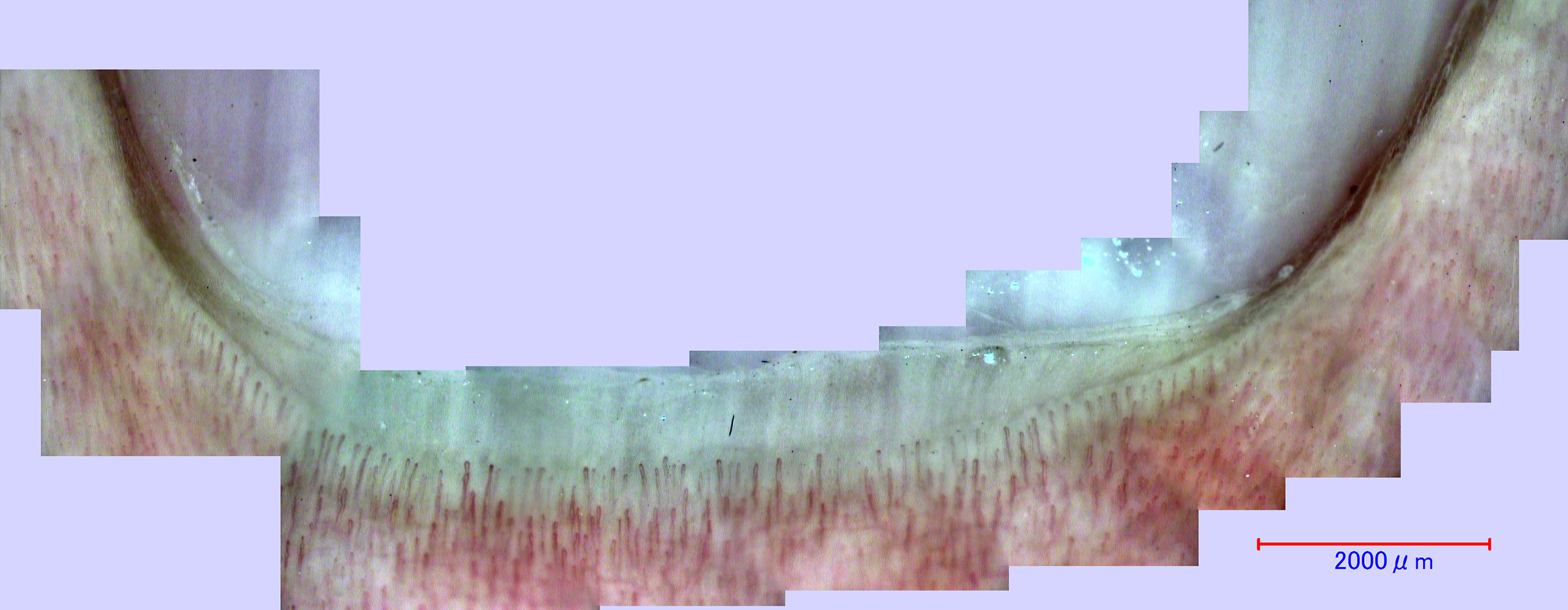

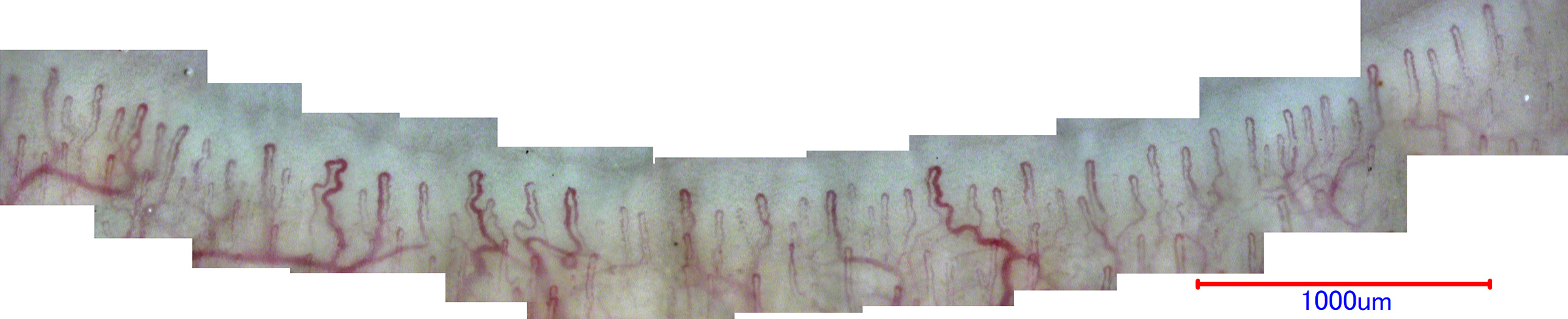

Panoramic image of nailfold capillaries (590 x)
Panoramic image of nailfold capillaries (590 x)
Panoramic image of nailfold capillaries (145 x)
Panoramic image of nailfold capillaries (145 x)
Before Image Tiling
Before Image Tiling Before Image Tiling Before Image Tiling Before Image Tiling Before Image Tiling Before Image Tiling Before Image Tiling Before Image Tiling Before Image Tiling Before Image Tiling Before Image Tiling Before Image Tiling Before Image Tiling Before Image Tiling Before Image Tiling Before Image Tiling Before Image Tiling Before Image Tiling Before Image Tiling Before Image Tiling Before Image Tiling
After Image Tiling
After Image Tiling

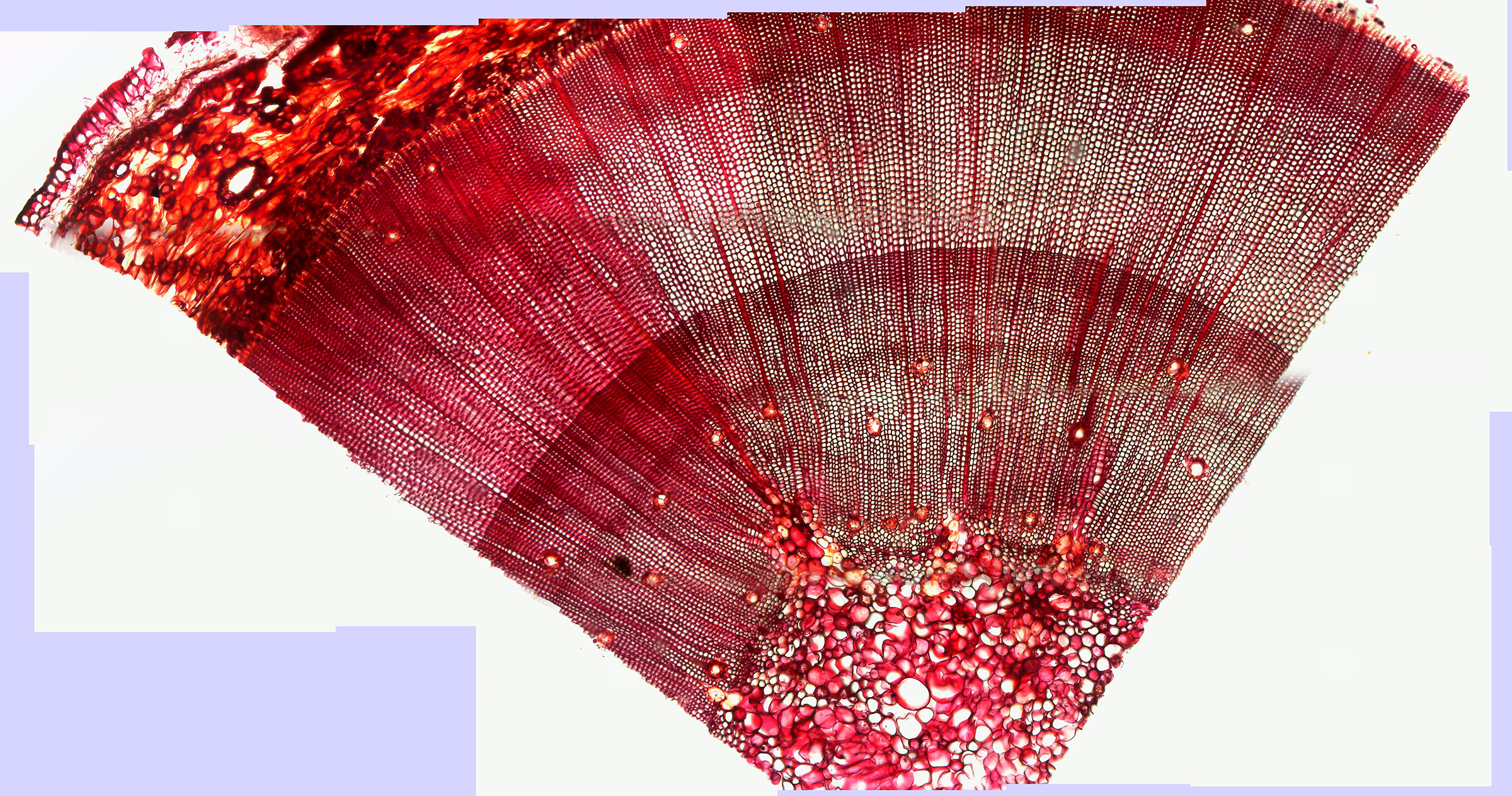

Cross section of a pine stem

Live Superposition (Image Overlay Position)

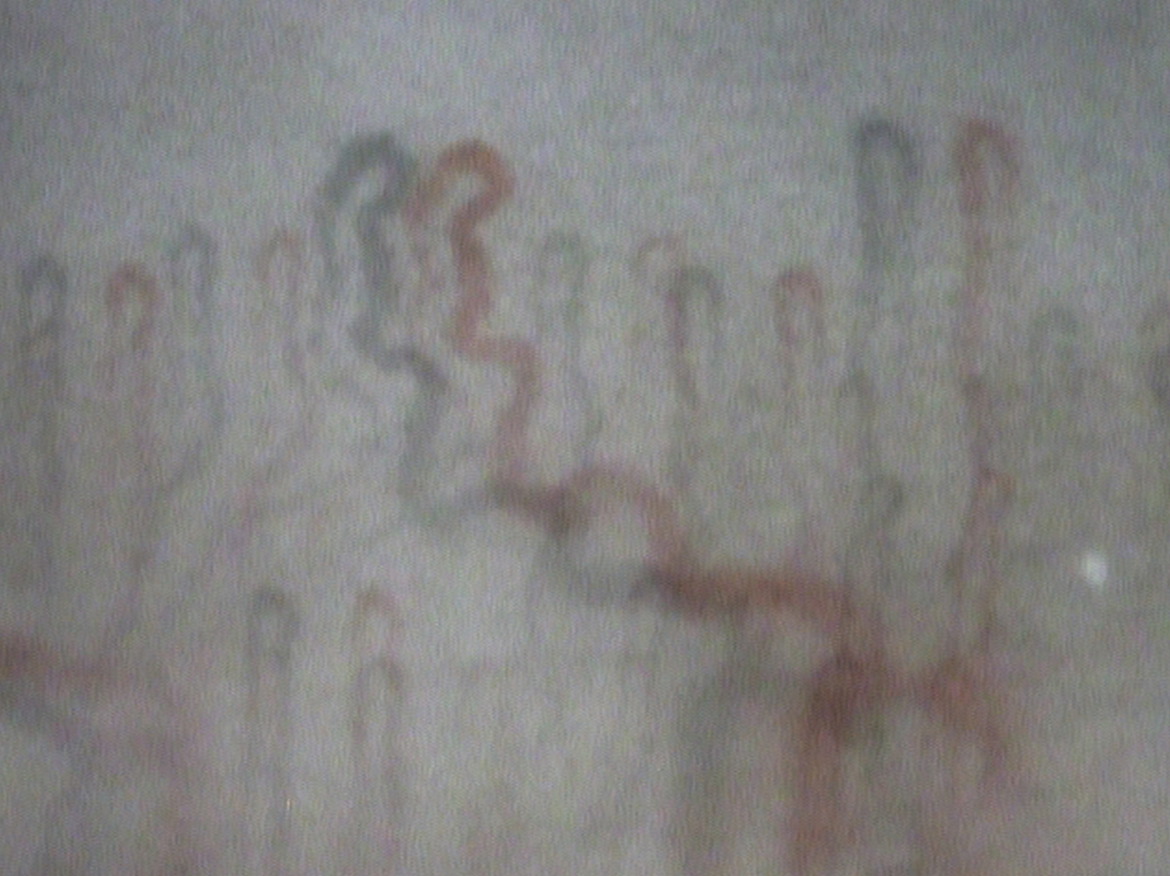

Image overlay of two images of nailfold capillaries
Image overlay of two images of nailfold capillaries

You can display the live camera image overlaid on the still photo.
This enables alignment of the two images for precise comparison.
Transparency of the overlaid images can be easily adjusted.

Applications:

  • Scenario: I want to find the same position as the previous observation point.
  • Scenario: I want to see how size and shape of the stains change from three months ago.

Background Subtraction Setting

Applications:

  • Scenario: I want to see the clear differences between the previous still snapshot and live camera in observing nailfold capillaries.
  • Scenario: I want to show the clear differences of size and shape of facial stains between live video and still snapshot.

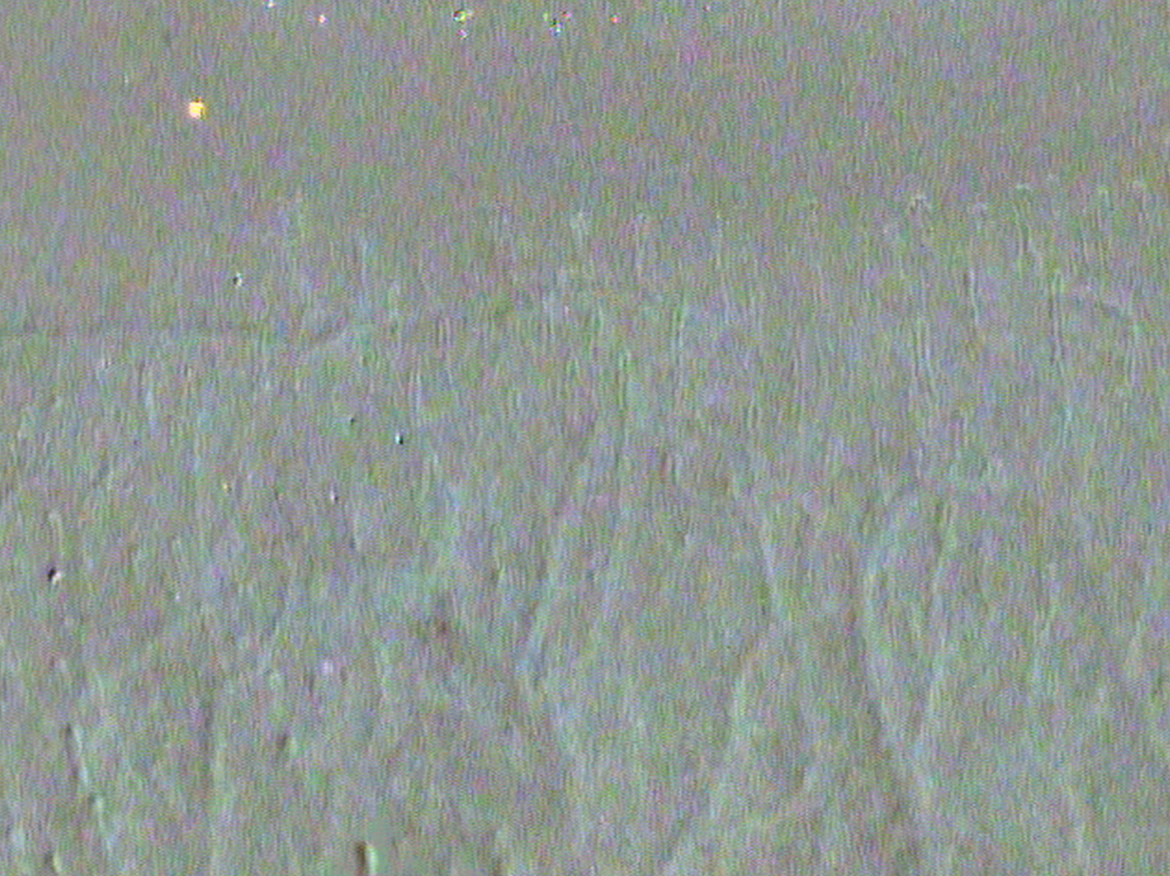

  • （Images with many differences）
    （Images with many differences）

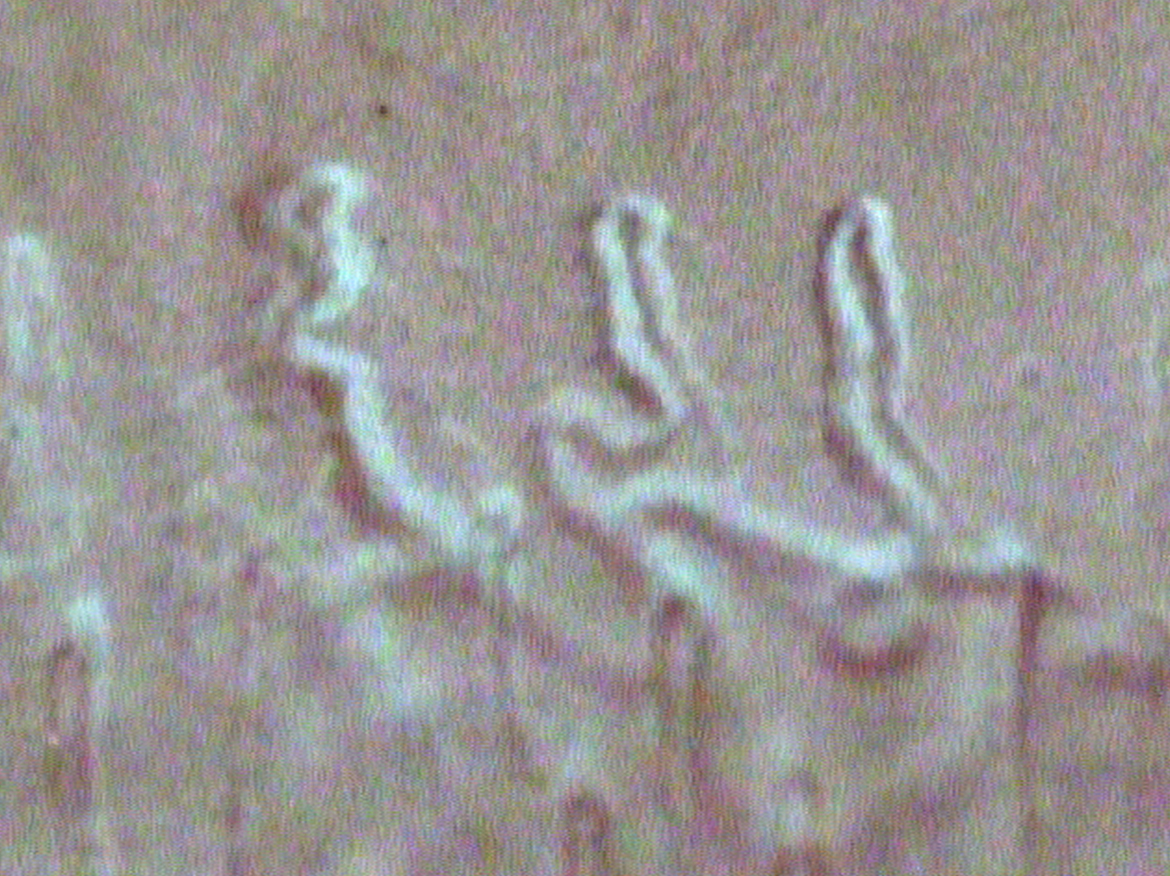

  • （Images with little difference）
    （Images with little difference）

Free Line Length Measurement

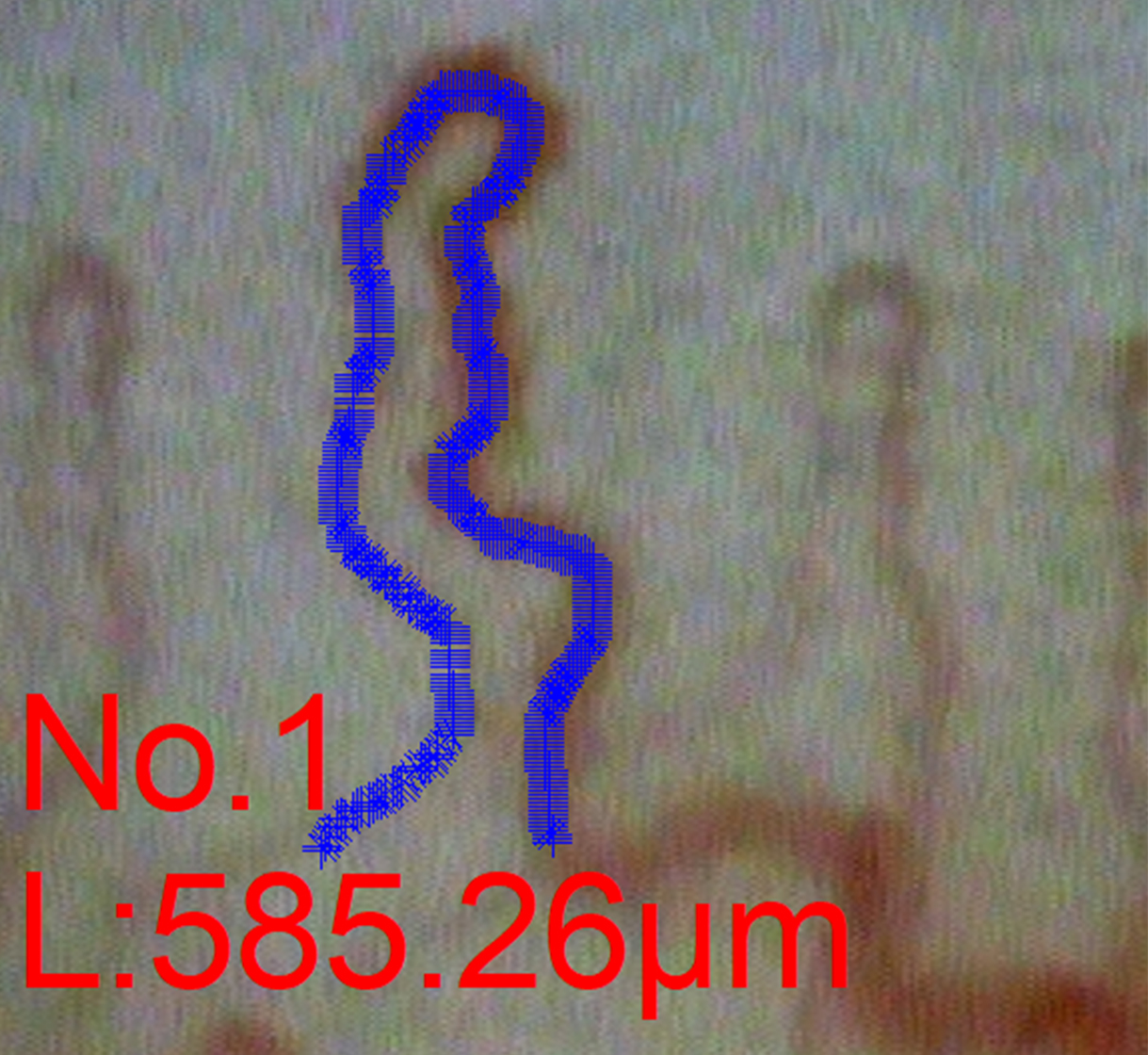

Free Line Measurement of a winding capillary
Free Line Measurement of a winding capillary

In addition to normal straight-line and multi-line measurement, free-line measurement is possible.
It enables accurate measure of the length of free-hand lines by manually tracing them.

Applications:

  • Scenario: I want to accurately measure the length of winding capillaries.

Auto Detection

Automatically detect the range, and measures such things as area, area ratio, perimeter, etc.
The range of brightness and color for auto-detection can also be adjusted.

Applications:

  • Scenario: I want to see how the area ratio of capillaries changes before and after the test.

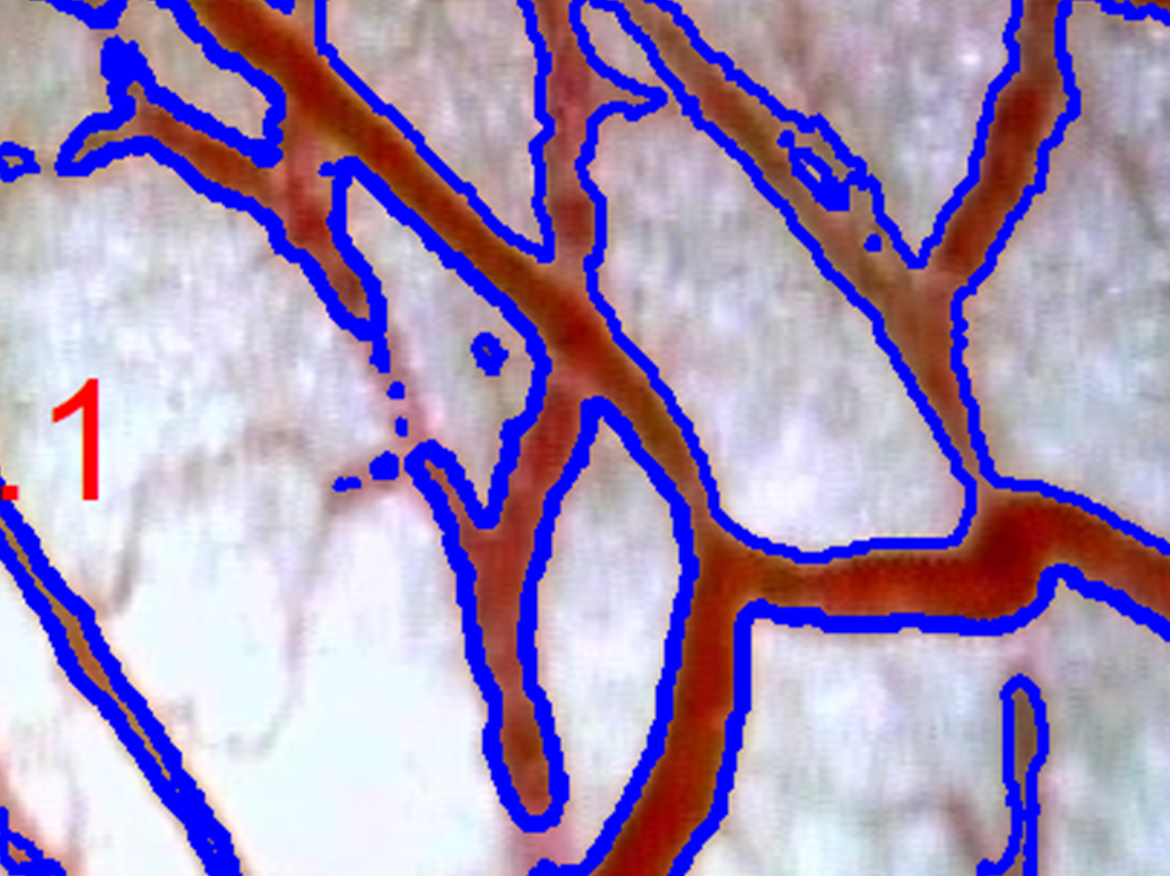

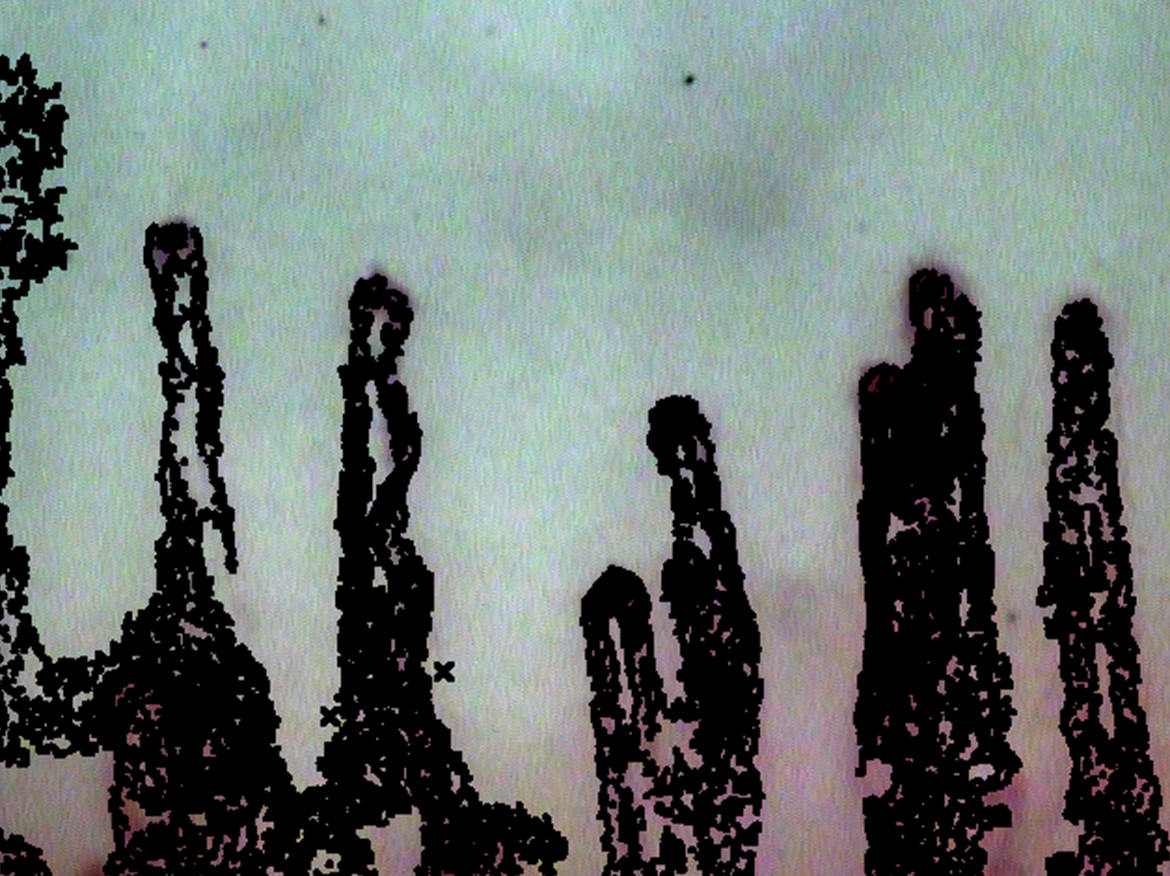

  • Example of Auto Detection - 1
    Example of Auto Detection - 1
  • Example of Auto Detection - 2
    Example of Auto Detection - 2

Export to Excel

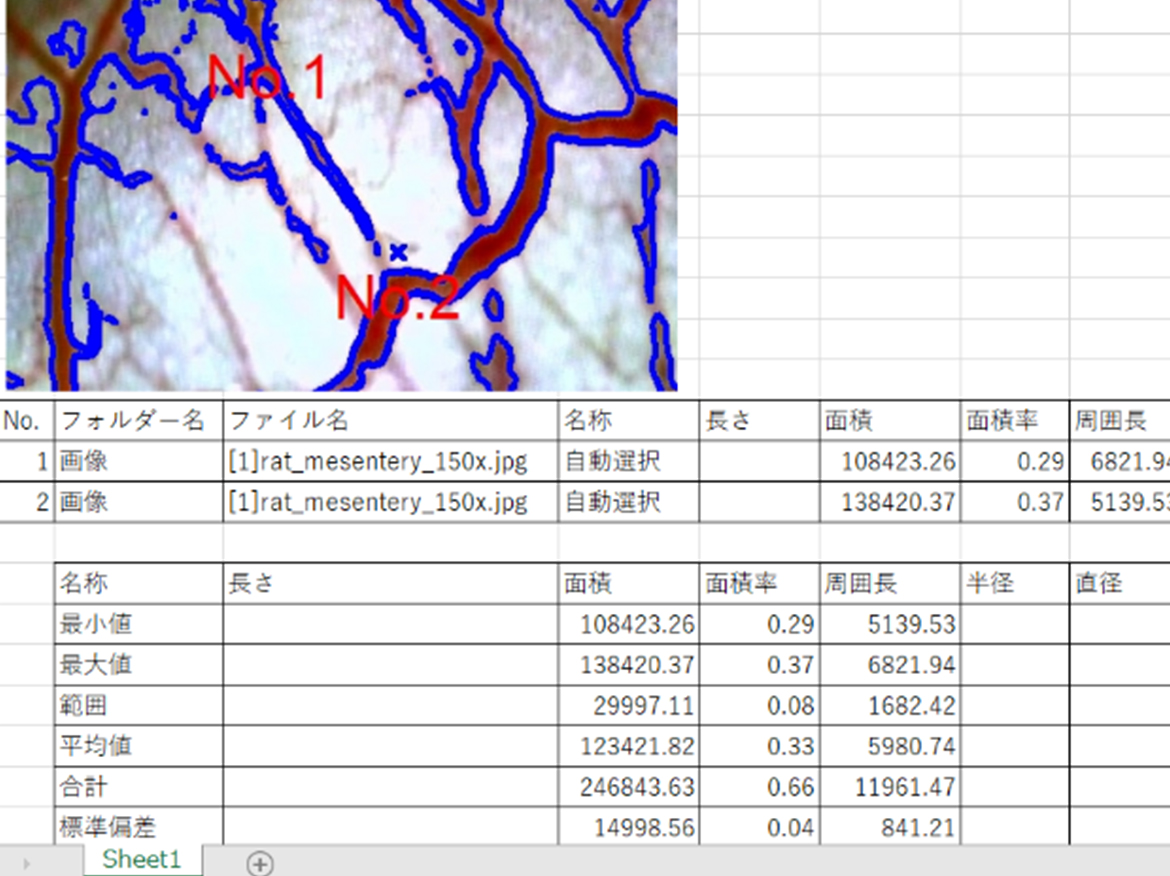

Example of report transferred to Excel
Example of report transferred to Excel

With one click, detailed measurement results can be easily transferred to Excel with images.
You can choose the items to be transferred.

Applications:

  • Scenario: I want to keep a report of observation results for each patient.
  • Scenario: I want to process observation data in Excel.

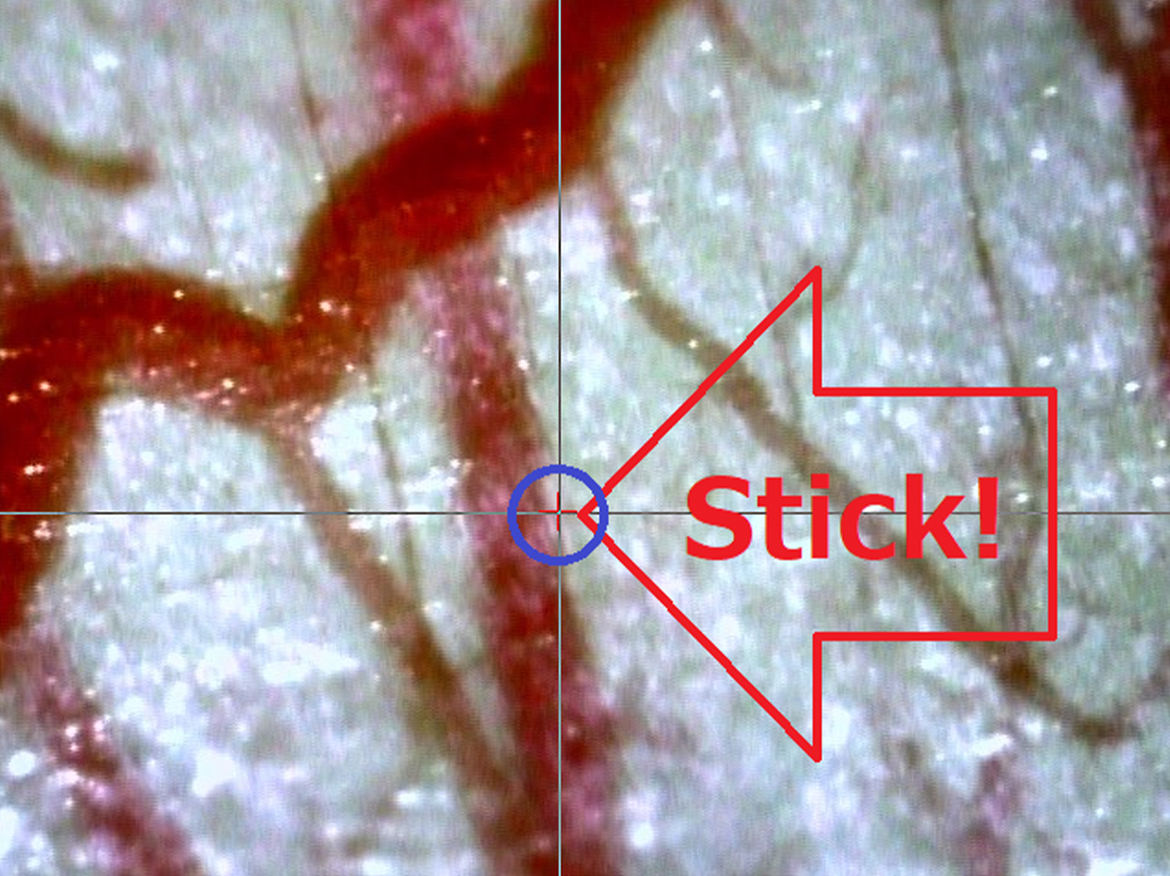

Measurement Assistance(Stick-to-edge Function)

Example of Stick-to-edge Function
Example of Stick-to-edge Function

The mouse cursor is automatically docked to the border of the image to be measured, thus reducing human errors.
The parameters of image detection can be adjusted according to the nature of the subject.
You can enlarge a part of the display and recognize accurately the location of the mouse cursor.

Applications:

  • Scenario: I want to shorten the measurement time of the width of blood vessels and skin grooves.
  • Scenario: I want to eliminate human error and reduce variations in measurement by different researchers.

Crossline, Grid and Scale bar

Enables display scale bar, grid and crossline on both still and live-camera images for quicker observation. Features can easily be turned on/off by one click.
The color of crossline on the live-camera image can be automatically changed at borders of the images.

こんな方に...

  • Scenario: I want to count by moving the scale bar how many capillaries are within a 1mm width.
  • Scenario: I want to display the center position on live-camera image.
  • Scenario: I want to judge the density of blood vessels by concentric circles.

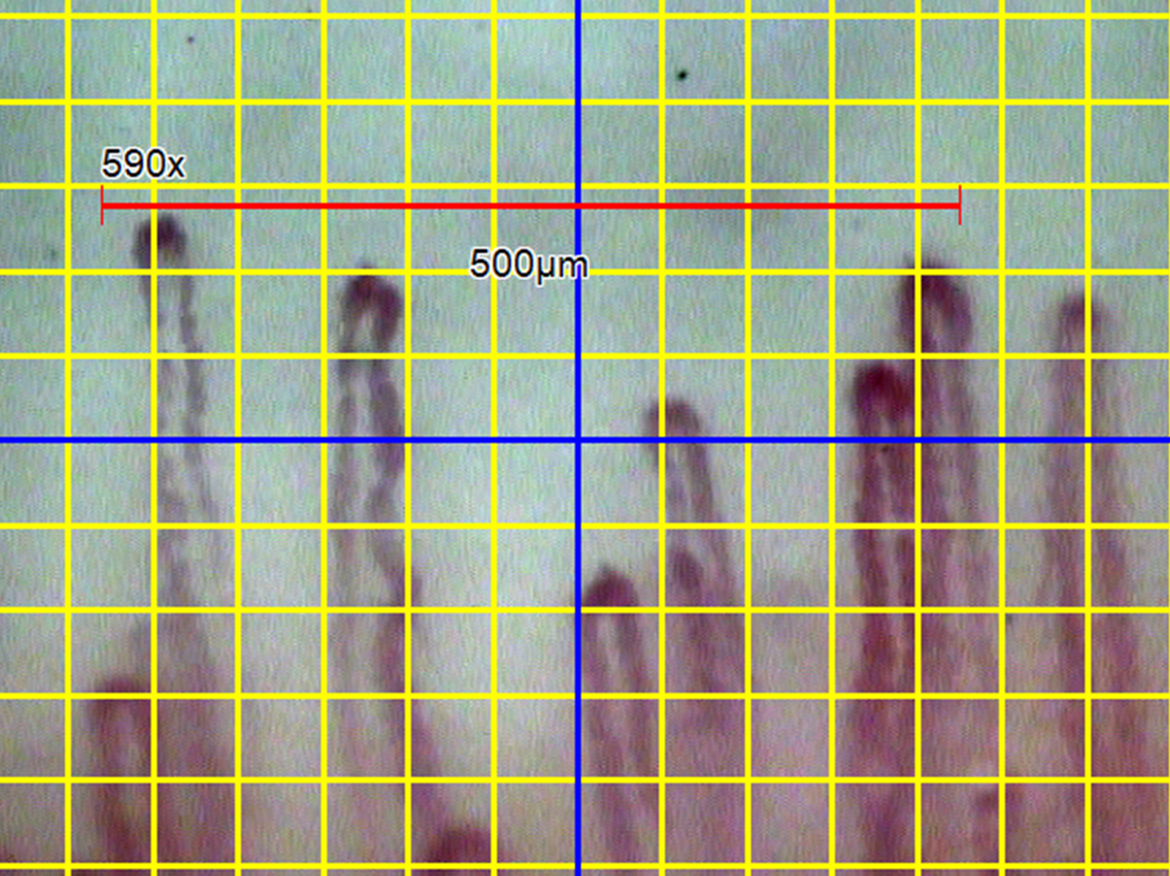

  • Scale bar, Grid, and Crossline
    Scale bar, Grid, and Crossline

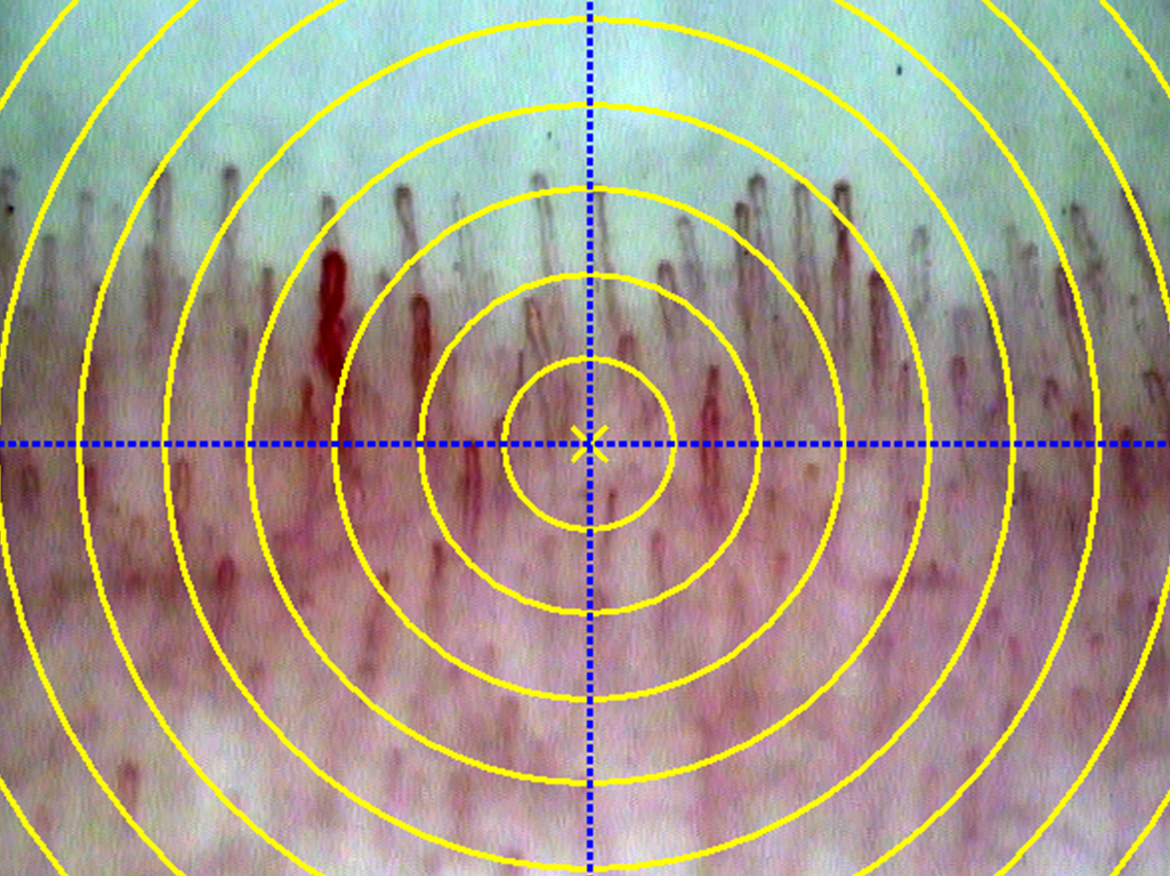

  • Crossline and Concentric Circles
    Crossline and Concentric Circles

Click-counter Function

Click-counter Function

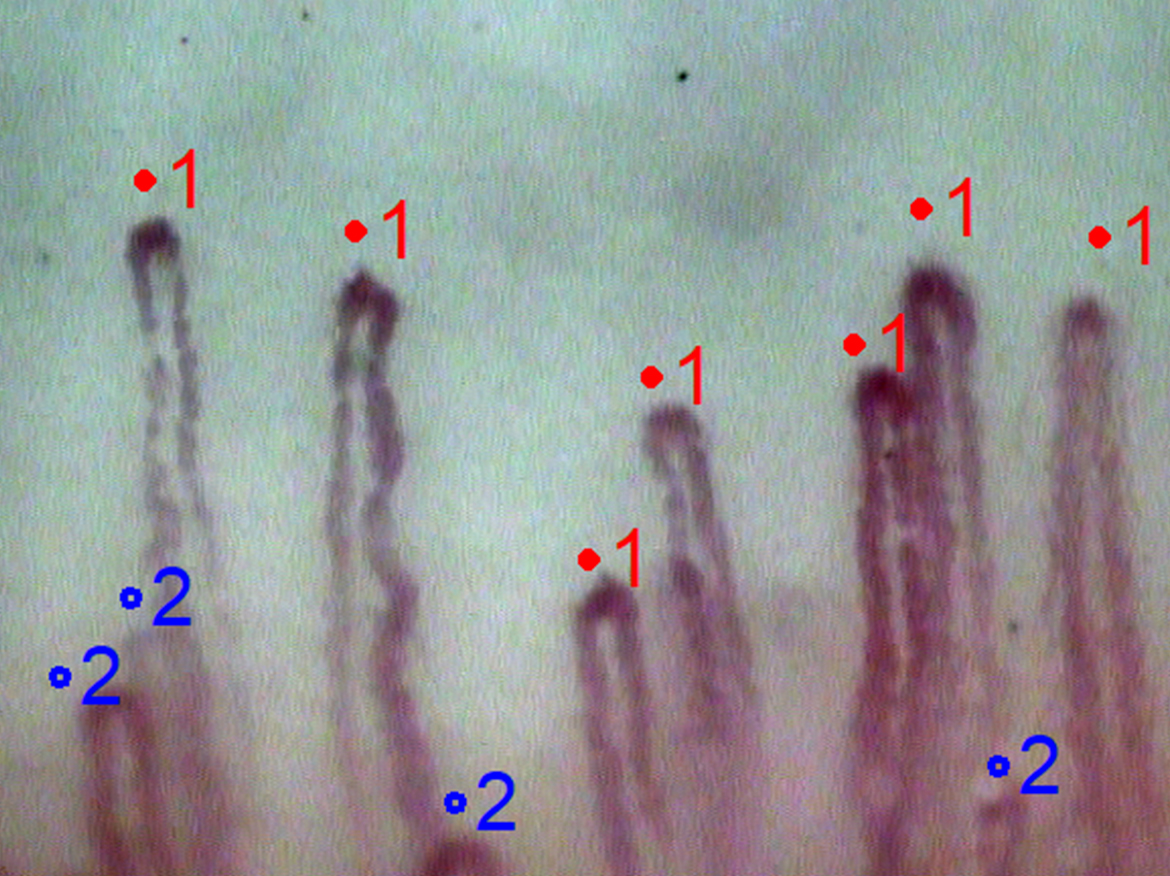

Example of click-counter function

The number of objects can be counted and saved as a measurement result.

Applications:

  • Scenario: I want to count the number of capillaries to generate an Excel report.

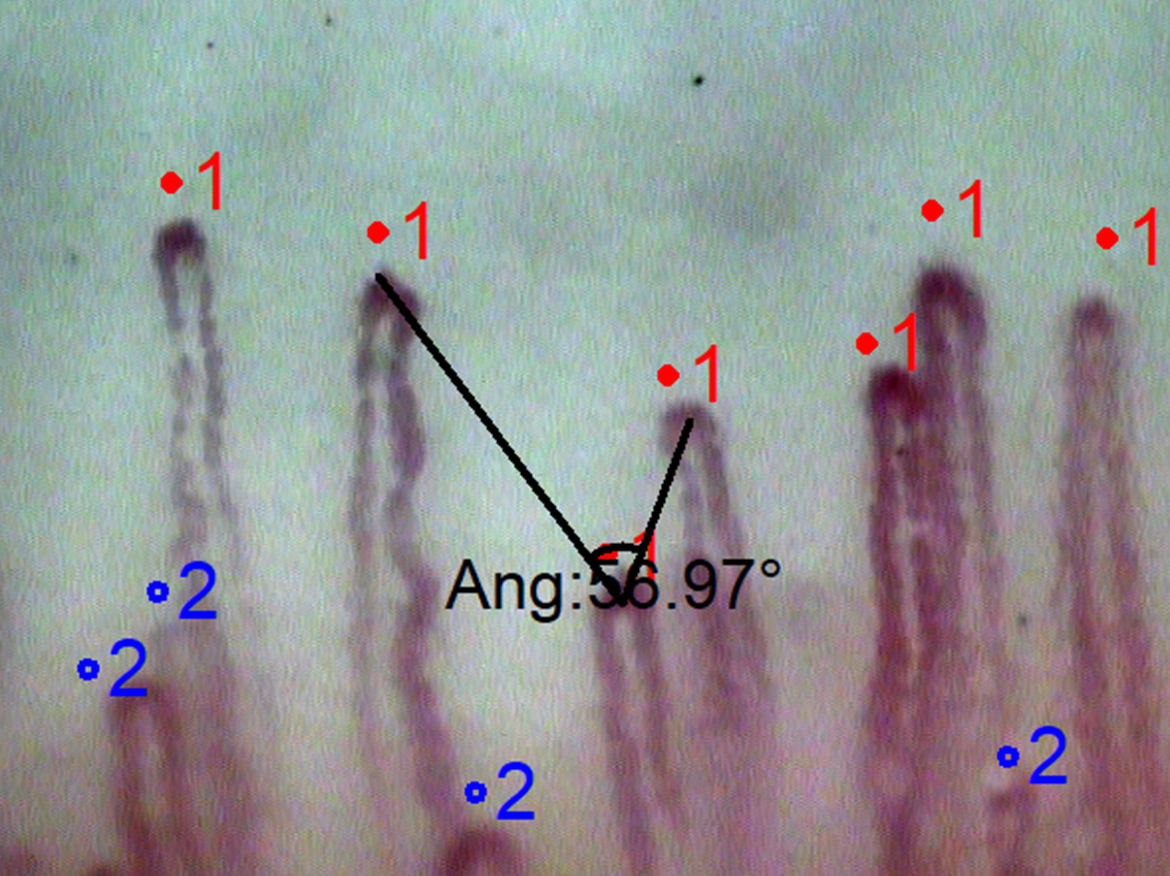

Angle Measurement (three points /four points)

Angle Measurement (three points /four points)

Enables to measure the angle. You can choose from 3-point angle and 4-point angle.

Applications:

  • Scenario: Counting the number of capillaries is determined by the angle between blood vessels.

2D Measurement tools

Provides 2D measurement functions to meet varied needs.
Measurement can be done not only on still images but also on live-camera images. Menus include:

  • Line Length
  • Parallel Lines Distance
  • Horizontal Parallel Lines
  • Vertical Parallel Lines
  • Repeat Parallel Lines Distance
  • Perpendicular Length
  • Free Line Length 1
  • Free Line Length 2
  • Interval Length
  • Circle Center to Center
  • XY Coordinate Position
  • 3 Point Angle
  • 4 Point Angle
  • 2 Point Circle
  • 3 Point Circle
  • Best Fit Circle
  • Rectangle
  • Ellipse
  • Polygon
  • Auto Select
  • Best Fit Line
  • 3 Point Arc
  • Count

Image Saving Assistance

Prefix and serial numbers of images can be freely set as image titles and can be easily changed.

Example of saving assistance
Example of saving assistance

Full-screen Display

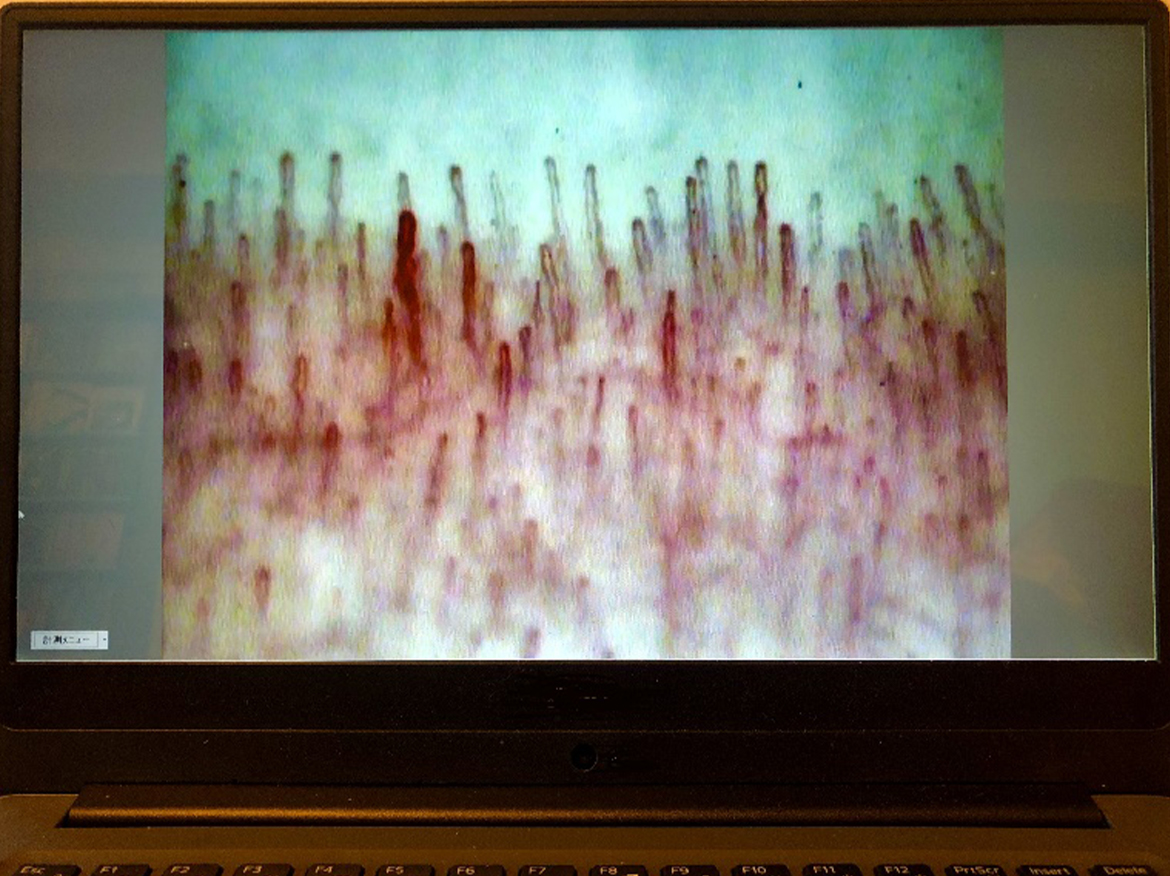

Example of full-screen display
Example of full-screen display

Enables to display in full screen.
You can also use the measurement menu in full screen display.

Applications:

  • Scenario: I want to display images as large as possible as if it were displayed on a TV.
  • Scenario: I want to project live image in a powerful size during a presentation.

Divide Window

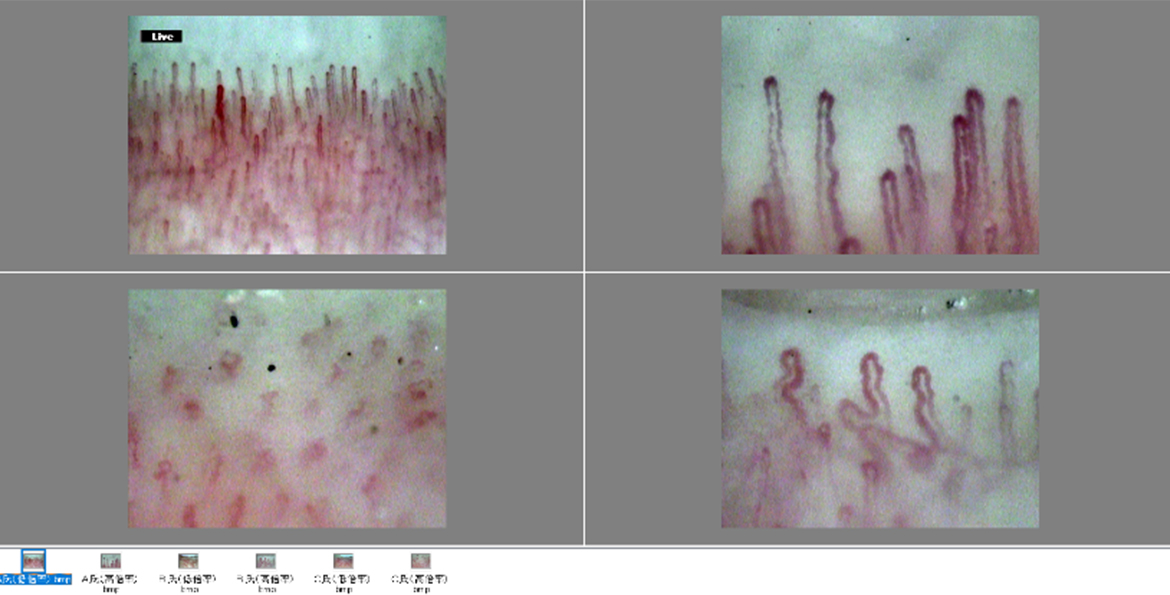

Example of divide window (into four)
Example of divide window (into four)

You can compare live imaged and capture still images by dividing the display into four parts.
(2 vertical, 2 horizontal)

Applications:

  • Scenario: I want to compare the shape of the capillary image taken one, two, and three months ago with today's shape.
  • Scenario: I want to show the development in the regeneration state of hair roots day by day.

Language

The menus and manual are available both in English and Japanese and easy to switch.

Language switching menu
Language switching menu

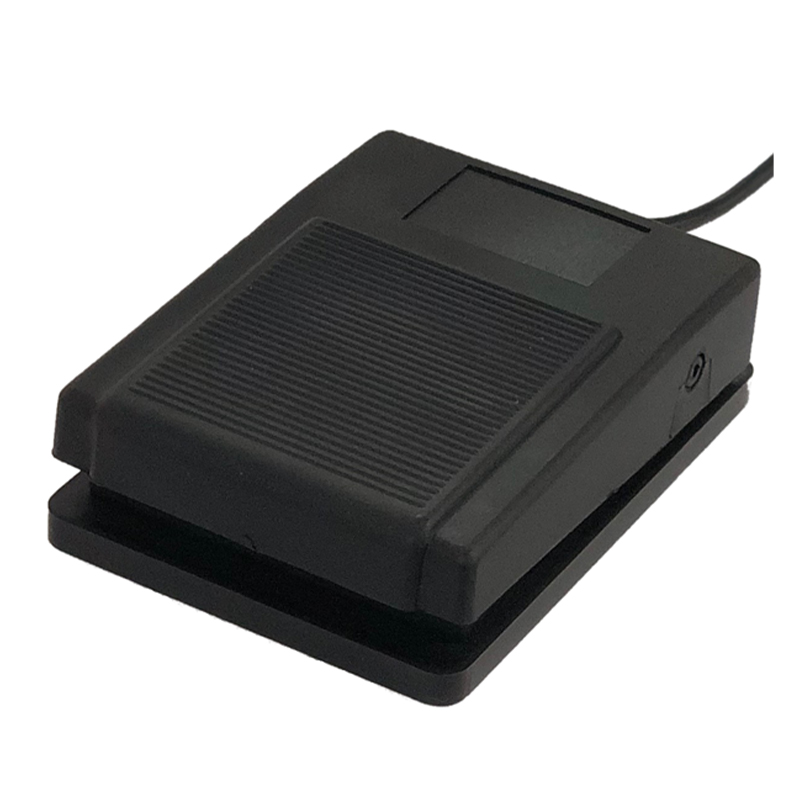

Foot Switch compatible

Foot Switch
Foot Switch

You can register a footswitch to replace the capture button.

Applications:

  • Scenario: It's difficult to press the capture button during surgery, so I want to shoot with a foot switch.

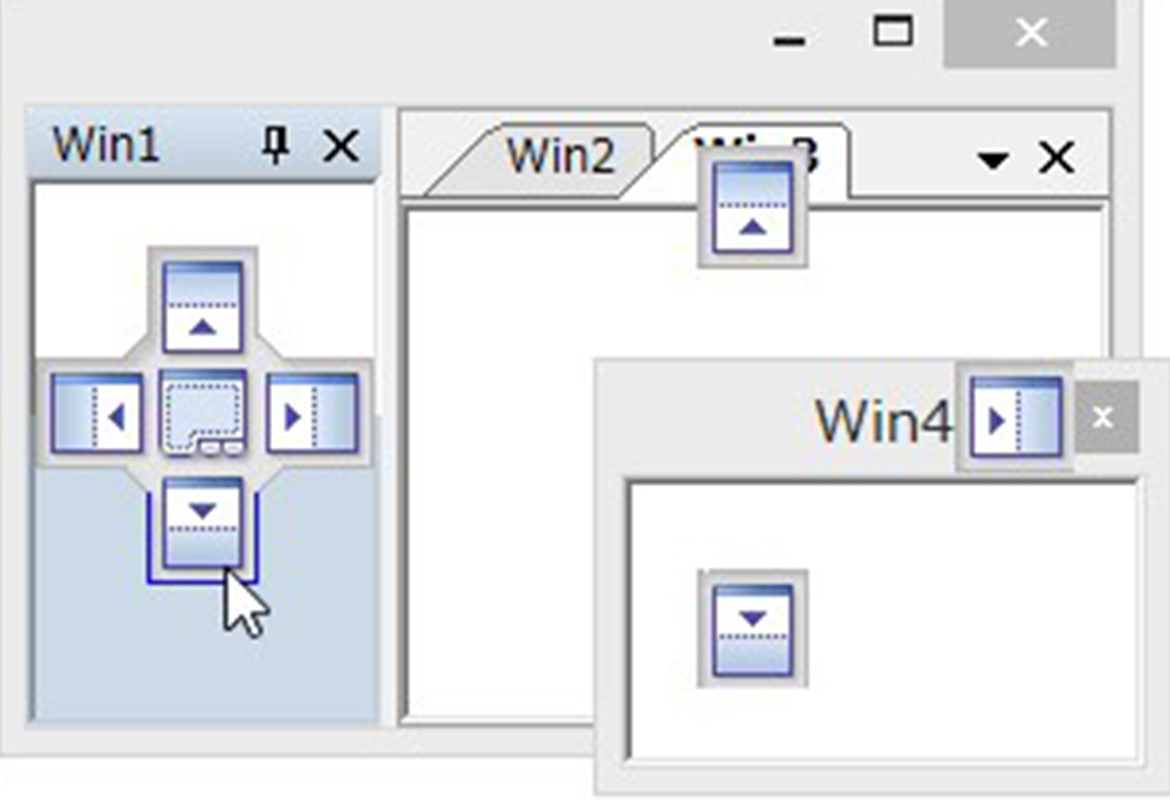

Dockable Windows

Dockable Windows
Dockable Windows

Dockable windows allow you to customize and save the menu location according to your preference.

Applications:

  • Scenario: I want to display only the functions I use every day.
  • Scenario: I want to move the menu display to another position.
  • Scenario: We want to use a different layout for each researcher.
