Handheld multi-distance scope, EV-6H

Handheld multi-distance model EV-6H.Hand-held scope that captures images from close-up to distant view.Popularly used to inspect PCB by being mounted on processor.
    • ev6h-f2.png
    • ev6h-f3.png
    • ev6h-f4.png
    • ev6h-f5.jpg
    • ev6h-f6.jpg
    • ev6h-f7.jpg
    • Captures images from "ultra close-up view" to "distant view"
    • No time lag! Captures smooth live video without time lags (NTSC real time system)
    • Long working distance offers comfortable working space.
    • Features high-luminosity LED: cool, bright, and extremely long-life
    • Easy operation: just turn "focus adjustment ring"!
    • An exclusive 2-way diffuser allows observation both for uneven and flat object.
    • Extremely light and compact! Best suited for observation in narrow and dark place
    • Popularly used to inspect mounting of PCB by being mounted on both sides of a processor
    • MADE IN JAPAN
  • Features

    No time lag! Captures smooth live video without time lags

    An NTSC full motion real-time video system captures extremely smooth real-time monitoring with no time lags. Best suited for the inspection for rework. Widely adopted for the visual inspection of automobile parts as well.


    Captures multi-distance images from
    Close-up (110×) to Distant view.

    Working distance and photographic coverage

    Working Distance(mm)8*210501002003004005007501000
    Photographic coverage,
    H × W (mm)
    2×2.5 4×5.5 11×14.5 18.5×24.5 33×44 47×63 62×83 76×102 113×150 159×212
    Magnification*1 110 50 20 12 6.5 4.5 3.5 2.5 2 1.5
    Working Distance(mm)Photographic coverage,
    H × W (mm)
    Magnification*1
    8*2 2×2.5 110
    10 4×5.5 50
    50 11×14.5 20
    100 18.5×24.5 12
    200 33×44 6.5
    300 47×63 4.5
    400 62×83 3.5
    500 76×102 2.5
    750 113×150 2
    1000 159×212 1.5

    *1) on 14-inch monitor

    *2) "WD: 8 mm" is the distance when attached "Diffuser" is mounted on tip and touches the flat object.

    *Working distance and magnification are in round figures.

    *Photographic coverage depends on size of monitor.


    Long working distance offers comfortable working space!

    Unlike previous microscopes, EV-6H enables to provide long working distance and displays real-time image onto monitor. This feature is ideal for the inspection by letting the object move, process or rework. EV-6H is popularly used for the inspection of processing of PCB, by being mounted on both sides of a processor.


    Easy operationJust connect the cable
    Easy operationFocus adjustment with one hand

    Easy operation: just turn the ring!

    • No setting is required. Just connect cable with AC adapter and TV monitor.
    • Just turn "focus adjustment ring" in one hand.

    先端に高輝度LEDを内蔵

    Features high-luminosity LED: cool, bright, and extremely long-life!

    Features a maintenance-free lighting system. No extra lightings required in close-up shooting even in dark place.
    Unlike devices with halogen lamps, there is no need to change bulbs. No heat is generated that may damage the objects over long observation periods.

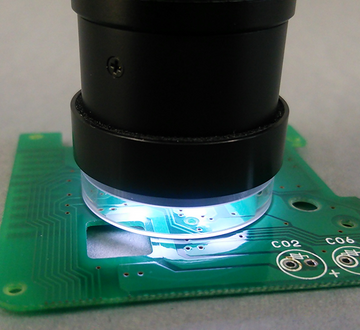

    An exclusive 2-way diffuser allows observation both for uneven and flat object.

    付属アタッチメント1.Used as a "diffuser"
    付属アタッチメント2.Used as a "focus cap" for flat objects

    An exclusive diffuser provides 2-way use.

    1.Used as a "diffuser"

    To observe short distance object to reduce partial reflection

    2.Used as a "focus cap"

    To observe flat object easily and stably- EV-6H is designed to focus on flat object when diffuser touches the flat object, in maximum magnification: 110× on 14-inch monitor.


    Lightweight and compact! Suited for observation in narrow or dark place

    EV-6H is lightweight and compact, which contributes versatile uses.
    Click sample pictures to see larger ones.

    For quality control
    Magnified mounted substrate
    (higher magnification)
    For quality control
    Mounted substrate
    (lower magnification)

    For quality control

    • To inspect mounting of PCB.
    • To inspect surface of metalworking
    • Use as embedded scope in inspection devices

    Surface of metalworking(lower magnification)
    Surface of metalworking
    (lower magnification)
    Surface of metalworking(higher magnification)
    Surface of metalworking
    (higher magnification)

    For the inspection in manufacturing line

    • To inspect mounting of FPC connector
    • To inspect machining or quality assurance
    • For visual inspection of welded connections


    For observing of flower or living thing

    Prepared specimen of crab larva
    Prepared specimen of crab larva
    Prepared specimen of pine stem
    Prepared specimen of pine stem
    Butterfly (higher magnification)
    Butterfly (higher magnification)
    Butterfly (lower magnification)
    Butterfly (lower magnification)
    • Observation of enlarge view of specimen
    • Sharing image on monitor with multiple people


    Distant view
    Distant view

    Others

    • Sharing enlarged picture in lecture class
    • Conformation of focus of large sized camera

    Example using the close-up stage with binoculars clip Example using the close-up
    stage with binoculars clip

    Example for another usage

    EV-6H can be fixed by clip that is commercially available.
    "EV-6H", fixed by clip for binoculars and stage for close-up shooting

    *Be careful not to hold "Focus adjustment ring".

    Contact us for further information.


    Example of customizing Example of customizing
    EV-6H

    Example of customizing

    Customized EV-6H for observing the process of micromachining to meet a customer's request.

    Contact us for further information.

  • Options

    • NTSC-USB2.0 Converter Set
      NTSC-USB 2.0 converter Set

      Used to convert NTSC analog images to uncompressed digital images for real-time display on a computer and saves them as video and still image

      More information
    • 9.7-inch LCD monitor for the GOKO Bscan-Z
      9.7-inch LCD monitor

      Wide view angle IPS panel is adopted.

      More information
    • flexstage-p1.png
      Angle-adjustable stage

      Angle-adjustable non-slip rubber stage, used to observe or take pictures of small object from every direction without touching it. (Sorry, sold out. Contact us for future production.)

      More information
  • Specifications

    Model EV-6H
    Image Signal NTSC composite video signal
    Image Sensor 410,000 total pixels (380,000 effective pixels)
    Electronic Shutter 1/60~1/100,000 seconds (Automatic)
    Focus System Adjustable by "focus adjustment ring".
    Magnification From distant view to 110× on 14-inch monitor
    Lighting System Direct lighting by high-luminosity LED
    Image Output Composite image output (RCA pin plug)
    Power Source 1.DC12 V, from exclusive AC adapter
    2.Input voltage of AC adapter: AC100-240V 50/60 Hz
    Operating Temperature 0 to +40℃
    Dimensions φ38 × 92 (Length) mm
    Weight 80 g
    Attachments 1.2-way diffuser
    2.AC adapter (DC5 V)
    Location of Manufacture Japan

    Specifications and design of the products are subject to change without prior notice.
