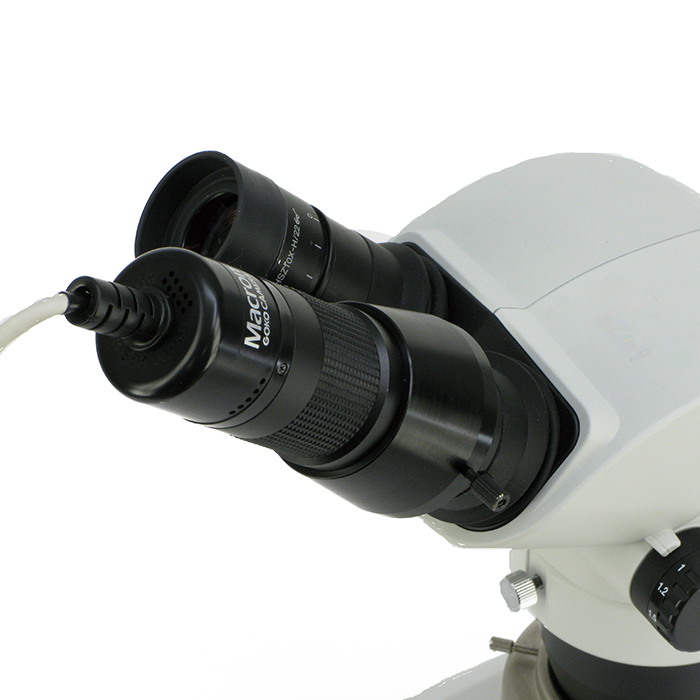

Upgrades your optical microscope to a digital microscope.

Offers a larger image field that is close in size to the eyepiece view

顕微鏡接眼レンズカメラ GOKO MVC-DU(USB)
  • Praised for clarity, ease of use, and automatic exposure control.
  • UVC-compatible (no driver needed); works with Windows 10/11, Type-C iPads, Macs and Android. (units sold after July 2016)
  • Fits ISO-standard 23.2mm / 30mm eyepiece tubes (Olympus, Nikon, Leica, ZEISS, etc.), including phase-contrast and metallurgical microscopes.
  • No trinocular tube? No problem. Mounts easily on standard eyepiece tubes.
  • Hassle-free attachment and removal with a user-friendly design.
  • Wide field of view―about 3-5× larger than conventional models―similar to the naked-eye view.
  • Includes free measurement software with auto edge detection to reduce user error; choose free or premium version.
  • Trusted by QC departments, research institutes, and universities.
  • Affordable, reliable, and made in Japan with GOKO's full support.

Wide Field of View, Similar to the Eyepiece

The MVC-DU delivers a wide image field―about 3 to 5× larger than conventional microscope cameras.
This minimizes the mismatch between what you see through the eyepiece and what appears on screen.
Its optical design is equivalent to a 10× eyepiece.

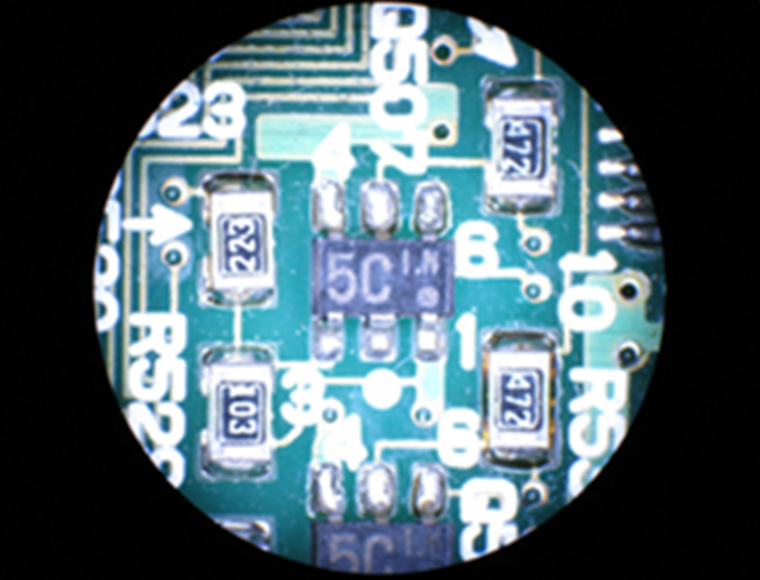

  • What You See Through the Eyepiece
    What You See Through the Eyepiece

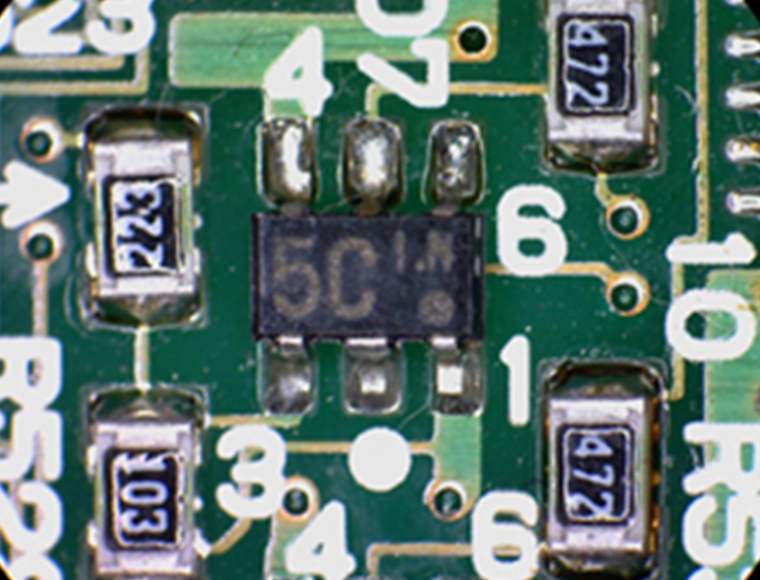

  • MVC-DU Image Field
    MVC-DU Image Field
  • Conventional Camera Field
    Conventional Camera Field

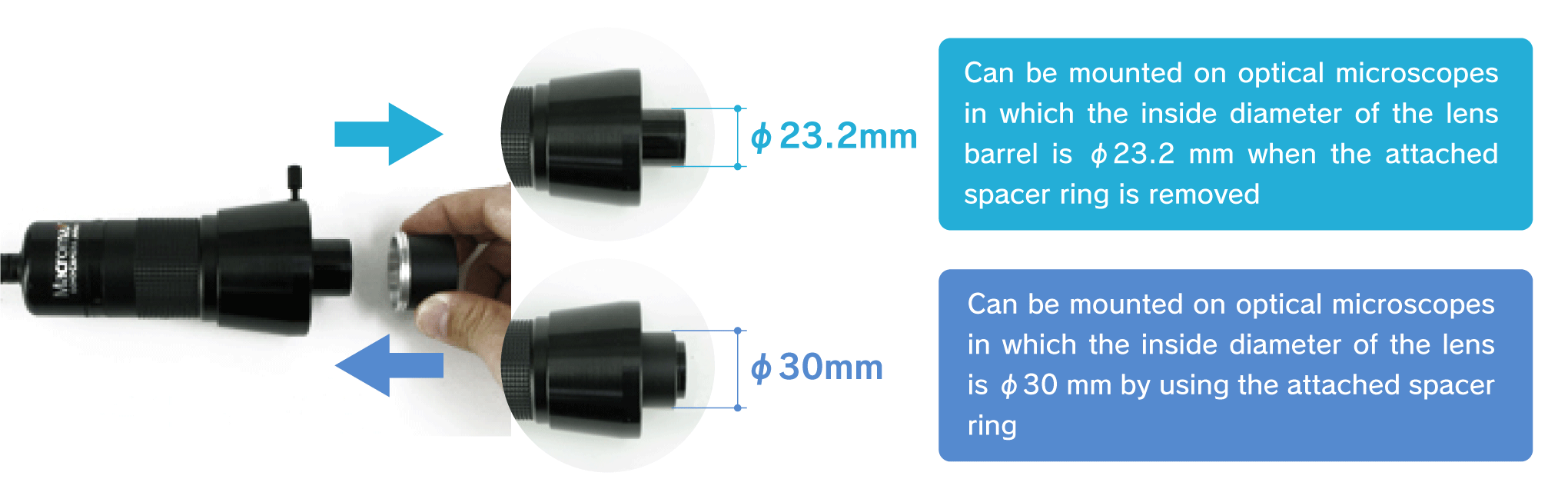

Quick Mounting with ISO Eyepiece Compatibility

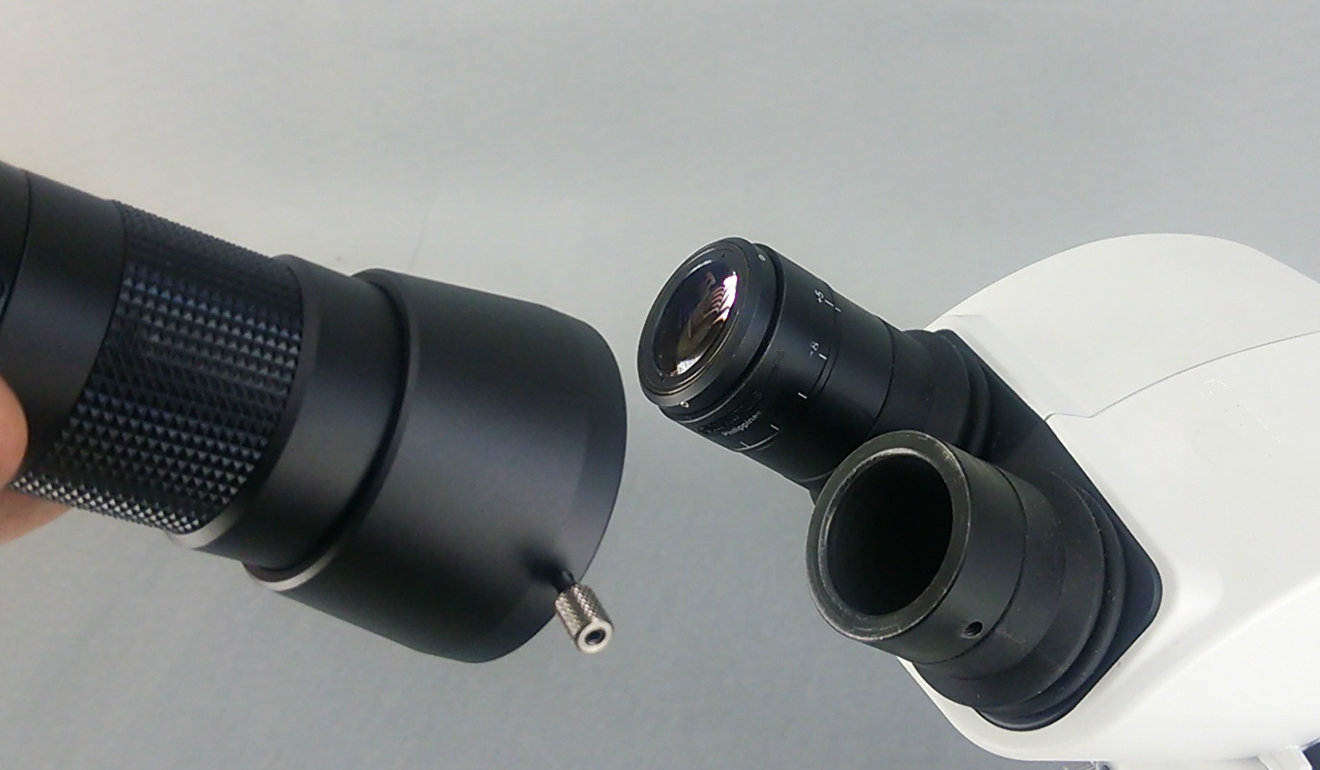

Quick Mounting

Compatible with ISO-standard 23.2 mm and 30 mm eyepieces, including stereo, upright, inverted, and monocular microscopes from Olympus, Nikon, Leica, ZEISS, and more.
A great choice for users needing digital capture without a trinocular port or struggling with camera.
Adapts to microscopes with φ23.2 mm (typically biological) or φ30 mm (typically stereo) insertion diameters.

Mounting of the ring diameter conversion

GOKO Quality Optics, Made in Japan

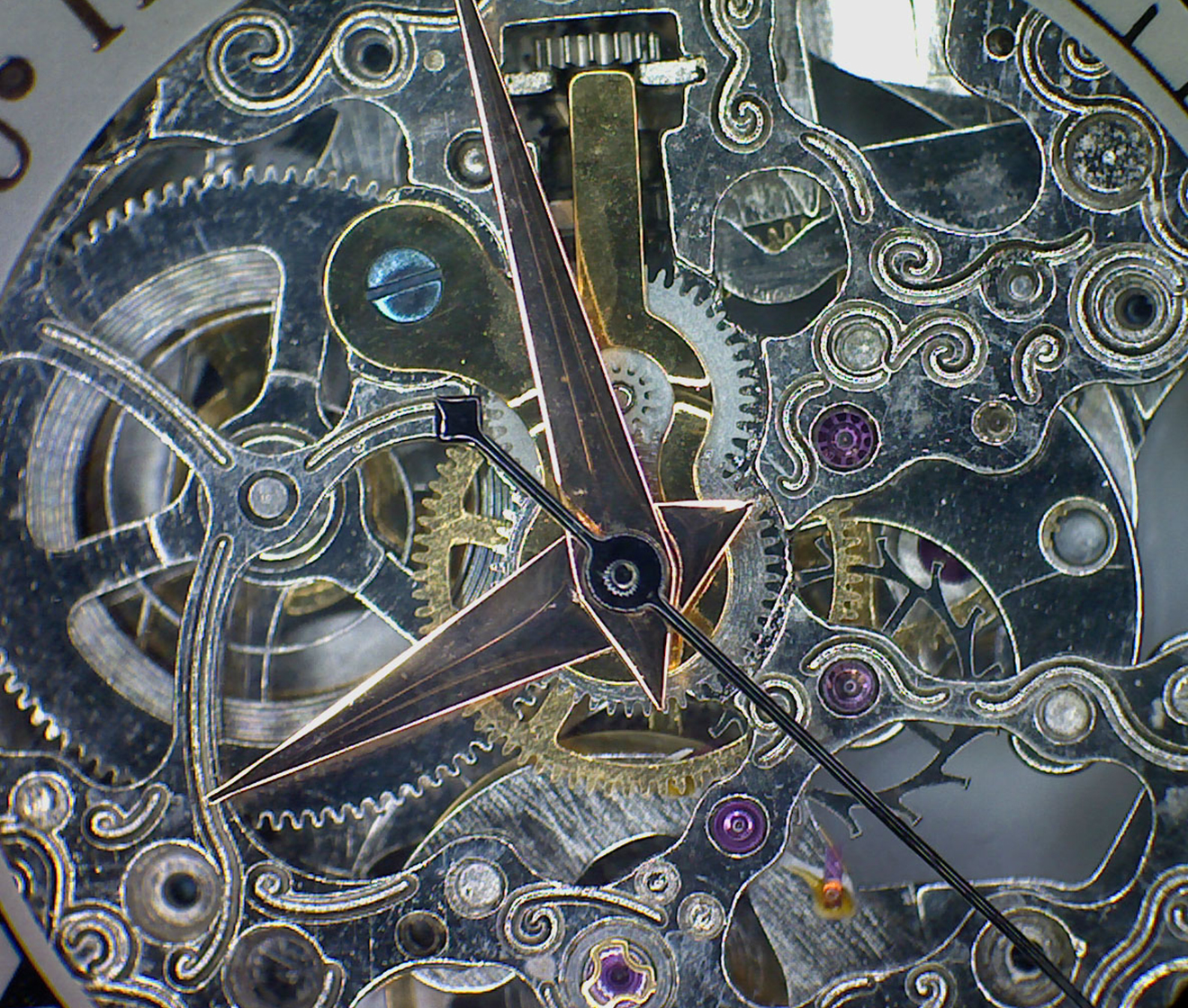

sample image

Image quality starts with optics.
With over 70 years of experience as a Japanese optical manufacturer, GOKO is committed to precision―not just pixels.
Our expertly engineered lens system ensures clear, high-quality images.
See the difference in our Photo Gallery.

Easy Mounting on Trinocular Microscopes with the Included C-Mount Adapter

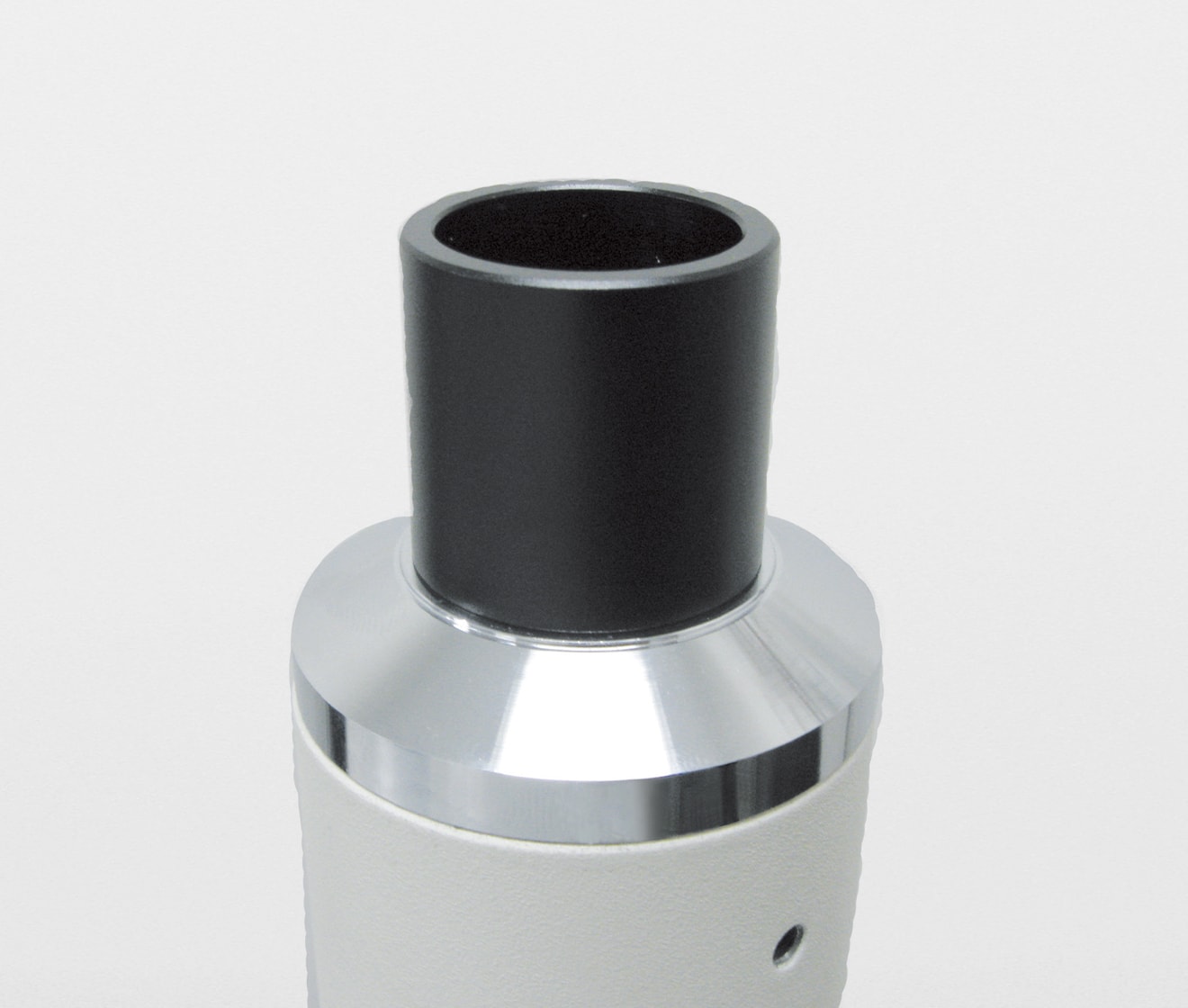

C-mount adapter

For users who want to mount the camera on a trinocular microscope, a C-mount adapter is included as standard.

If your trinocular port has a standard C-mount thread and no built-in correction lens (i.e., 1× magnification), simply remove the ring adapter from the SCORP-ON Direct USB and attach it directly using the included C-mount adapter.

Please note:

  • Some microscopes have built-in correction lenses in their C-mount ports, which may prevent proper attachment. Be sure to check compatibility in advance.
  • Although this product is primarily designed for use as a microscope camera, it can also be used as a standalone USB camera. By replacing the ring adapter with the C-mount adapter and attaching a C-mount CCTV lens, you can easily repurpose it for non-microscope applications as well ― a useful option for those looking for more flexible usage.

Free & Advanced Measurement Software

Choose from two software options to match your needs:

  1. "GOKO Measure"(Free)

    Includes 2D tools such as vertical distance, center-to-center measurement, angle, 3-point circle, polygon, and more.

  2. "GOKO Measure Plus"(Optional)

    For advanced analysis and measurement: halation removal, HDR, focus stacking, tiling, background subtraction, and overlays.

  • HDR (High Dynamic Range) Composition
    HDR (High Dynamic Range) Composition
  • Focus Composition
    Focus Composition

GOKO's Original Glass Calibration Chart Included as Standard

A custom-made glass calibration chart from GOKO is included as standard for use in 2D measurement calibration. The chart features precision-printed reference patterns on the glass surface at 0.1 mm intervals. For more details, please see the Accessories page.

Trusted by Customers for Over a Decade

Used for over a decade in quality inspection, training, and in-process checks.
Here's why users love it:

  1. Crisp, high-quality images
  2. No drivers needed―just plug and play
  3. Quick and easy to mount
  4. Reliable auto exposure
  5. Fits most JIS-standard microscopes, old and new

Proven Track Record in Leading Institutions

GOKO MVC-DU has been widely adopted by leading universities, hospitals, and research institutes.
Institutions include:

  • The University of Tokyo (School of Engineering)
  • The University of Tokyo (College of Arts and Sciences)
  • The University of Tokyo (Faculty of Agriculture)
  • The University of Tokyo (Faculty of Science)
  • Graduate School of the University of Tokyo (Medicine)
  • The University of Tokyo (Department of Dermatology, Faculty of Medicine)
  • The University of Tokyo (Pediatric Surgeons, Faculty of Medicine)
  • Kyorin University Hospital (Plastic Surgeon)
  • Graduate School of University of Tsukuba
  • Ibaraki University (College of Agriculture)
  • Gakushuin University (Faculty of Science)
  • Kyushu University
  • Tokyo Medical and Dental University
  • Graduate School of Yokohama National University
  • Graduate School of Tokyo University of Agriculture and Technology
  • Kitami Institute of Technology
  • Yokohama City University
  • Chiba University
  • Tokyo Kasei University
  • Kyoto University (Faculty of Engineering)
  • Kyoto Institute of Technology
  • Soka University
  • National Institute of Advanced Industrial Science and Technology
  • National Institute of Animal Health
  • National Institute for Materials Science
  • Riken, Tsukuba Campus
  • National Institute of Infectious Diseases
  • Advanced Scientific Technology & Management Research Institute of KYOTO
  • National Institute of Natural Sciences, Institute for Molecular Science
  • National Center for Global Health and Medicine

And many others *No particular order
